3. Menu W
indow
76
Remaining steps that can be stored in the controller
Currently registered programs
Number of registered steps in ( )
Program name in [ ] (if a symbol is registered)
Unregistered programs
Position data edit item
Double-click to open the position edit window.
"Drive," "Encoder" and "I/O System Device" will be
displayed for X-SEL-P/Q, R/S, SSEL, ASEL and
PSEL controllers.
Parameter edit items
Double-click a desired parameter category to
open the corresponding edit window.
Symbol edit items
Double-click a desired symbol category to open
the corresponding edit window.
3.4 Tree View
You can display various data edit windows in the online mode by double-clicking the corresponding tems
displayed in the tree view (Fig. 3.30, Fig. 3.31) that appears on the left side of the main window.
You can show or hide the tree view by clicking View (V) from the menu bar and then selecting Tree View (T).
Controller model
The example of Fig. 3.30 also applies to X-SEL-P/Q, R/S, TT, SSEL, ASEL, and
PSEL controllers.

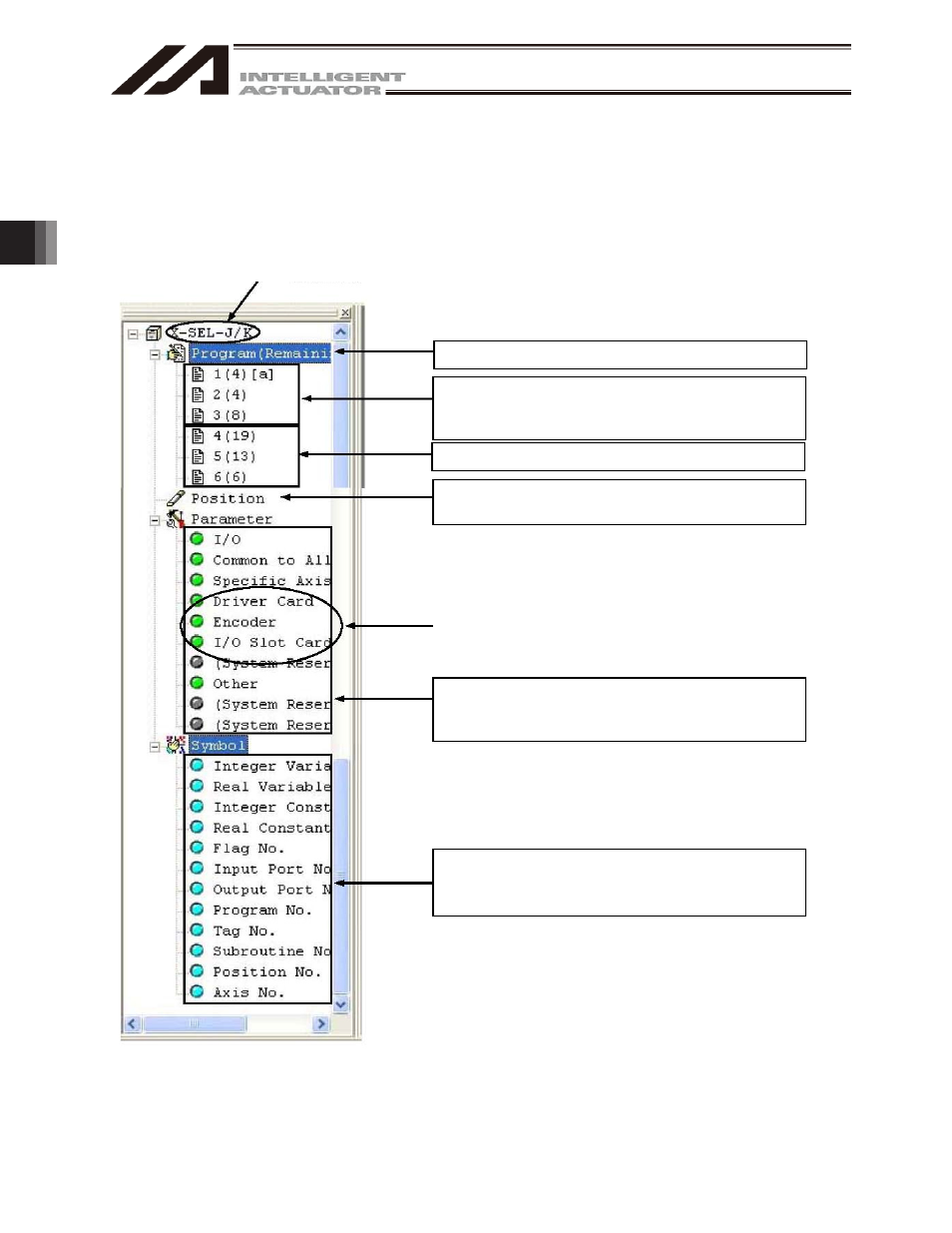

Fig. 3.30 Tree View (X-SEL-J/K)
