3. Menu W
indow
66
(9) Monitor (M)
This menu lets you monitor various statuses, global variables, port statuses, and so on. (Available only in
the online mode.) (Refer to "11. Monitor.")
[1] Task Status (T) Open the task status monitor window.
[2] System Status (S) Open the system status monitor window.
[3] Axis Status (A) Open the axis status monitor window.
[4] Input Port (I) Open the input port monitor window.
[5] Virtual Input Port (N) Open the virtual input port monitor window.
[6] Output port (O) Open the output port monitor window.
[7] Virtual Output Port (U) Open the virtual output port monitor window.
[8] Global Flag (F) Open the global flag monitor window.
[9] Global Integer (L) Open the global integer monitor window.
[10] Global Real (R) Open the global real variable monitor window.
[11] Global String (G) Open the global string monitor window.
[12] Local Data (B) Local data (local integers, variables, local real variables, local
string real numbers and local flags) for each program number
can be shown.
[13] Detailed Error Information (E) Open the detailed error information monitor window.
If you click Monitor (M) from the main menu and then selecting
Detailed Error Information (E), the Error number Select screen
will be displayed.
After setting the number of displayed errors, click OK.
The detailed error information screen will be displayed.

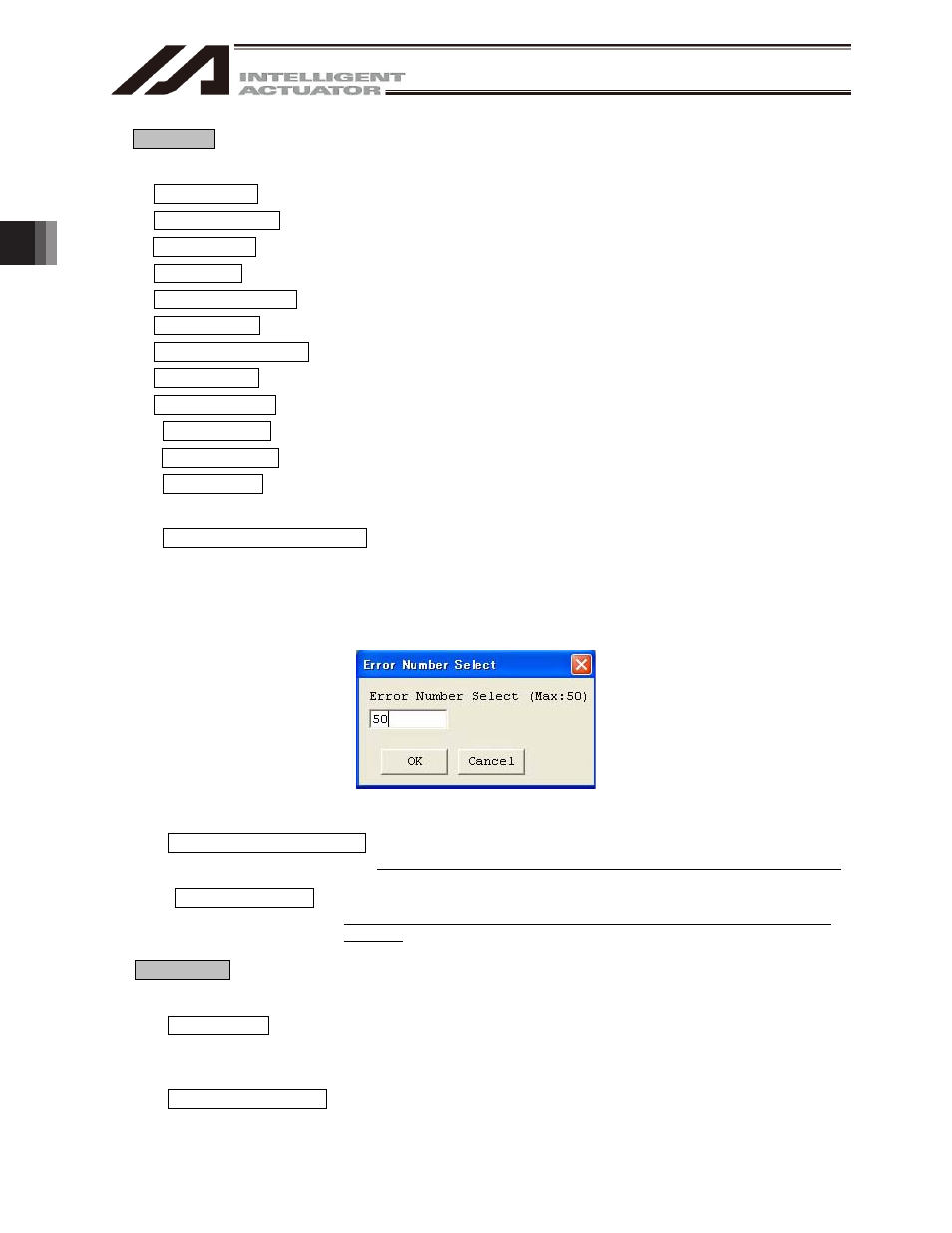

Fig. 3.16 Error Number Select Screen
[14] Maintenance Information (X) Open the maintenance information monitoring window.
This item is displayed on the XSEL-R/RX/RXD/S/SX/SXD controller.
[15] Monitoring Data (M) Open the monitoring data window.
This item is displayed only when the connected controller supports the
function.
(10) Controller (C)
This menu lets you perform operations relating to the controller, such as executing a software reset or
resetting controller errors. (Refer to "15. Supplementary Information in Controller Menu Items.")
[1] Reconnect (C) Reestablish communication with the controller. If the software is currently
in the offline mode but is able to establish communication with the
controller, selecting this menu item will switch the software to the online
mode.
[2] Change Baud Rate (B) Change the baud rate used for communication between the controller and
PC.
