7. Copying/Moving/Clearing Position Data
118
7.2 Clearing Position Data
(1) Click Position (O) from the menu bar, and then select Clear (L).
(2) The position data clear window (Clear Position Data) will open.

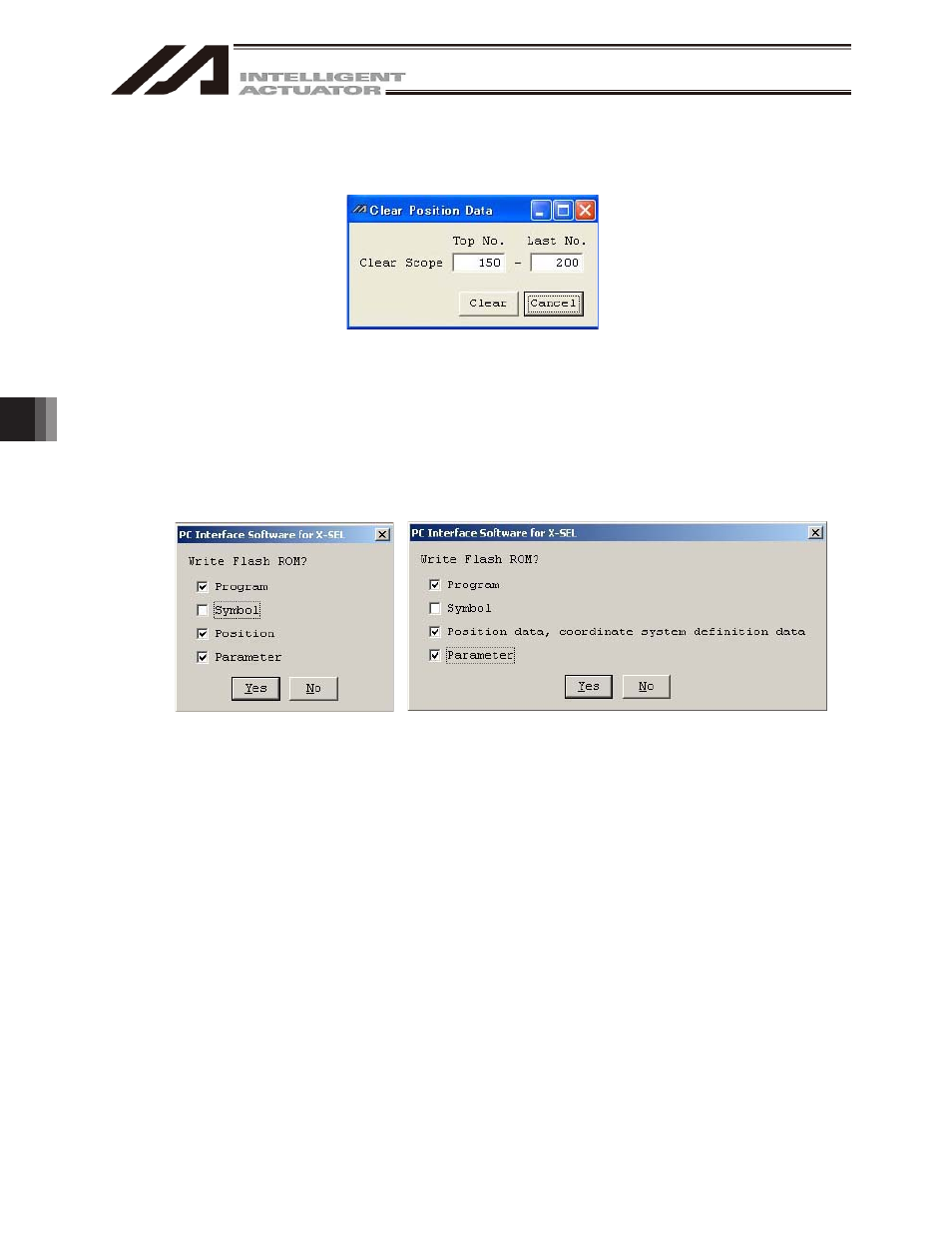

Fig. 7.6 Position Data Clear
In Clear Scope, specify the Top No. and Last No. of the position range you want to clear.
Then, click Clear.
Clicking Cancel will cancel the operation.
(3) Writing to the flash ROM
When the clear is completed, the following confirmation dialog box with the message, "Write Flash ROM?"
will be displayed.
Fig. 7.7 Confirmation Fig. 7.8 Confirmation
(X-SEL-J/K, P/Q, TT, SSEL, ASEL, PSEL) (X-SEL-JX/KX, PX/QX)
