6. Position Data Edit W
indow
111
(9) Axis-specific button/setting function/movement selection display axis switching

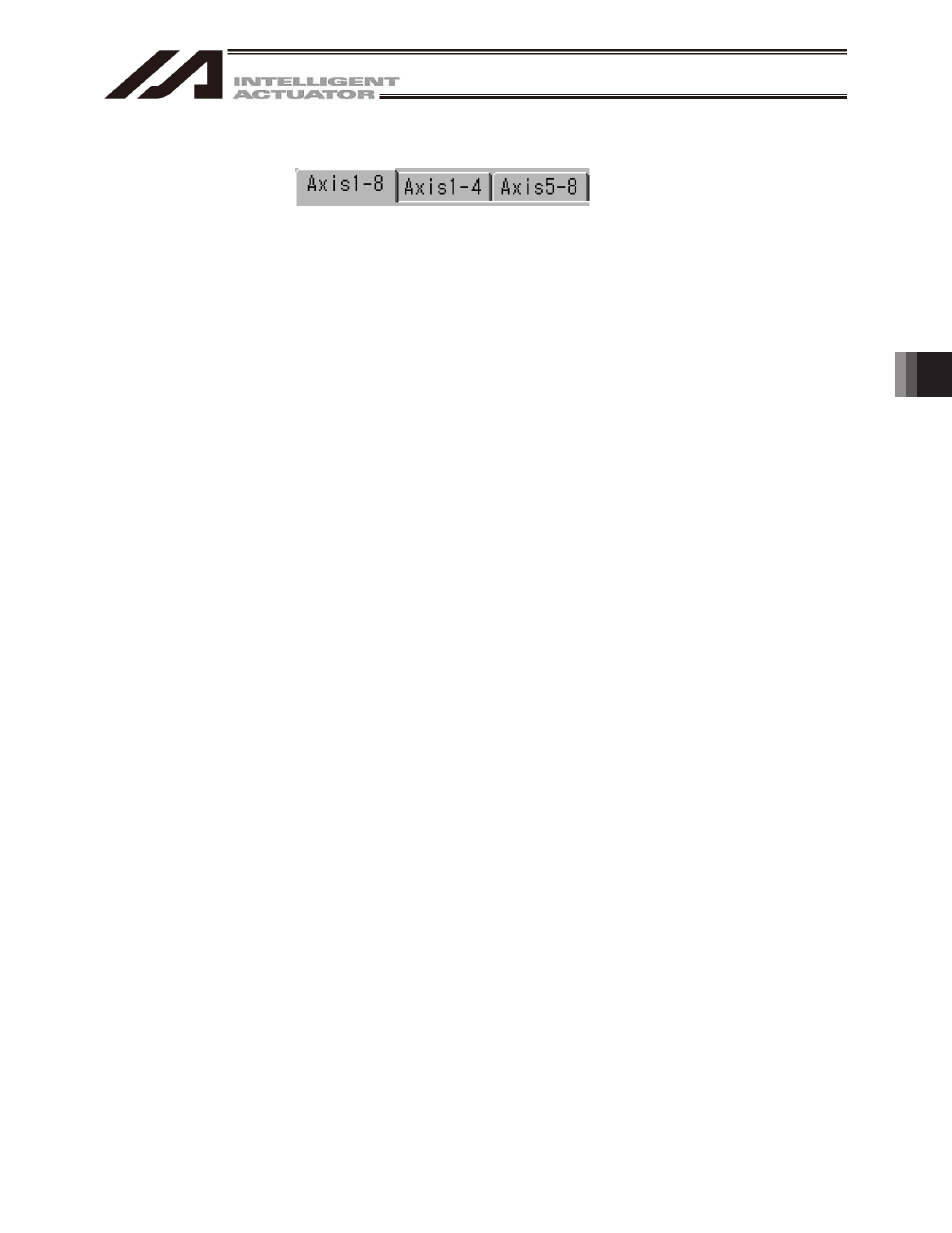

Fig. 6.34 Axis-specific Button/Setting Function/Movement Selection Display Axis Switching.
Switch the axes displayed in the axis-specific button, setting function and movement selection areas.
Axis1-8: Display the axis-specific buttons, setting functions and movement selections of all effective axes.
(This item is displayed only when the X-SEL-PX/QX, RX/SX and RXD/SXD controllers are
connected and Axis 5 and subsequent axes are effective axes.)
Axis1-4: Display the axis-specific buttons, setting functions and movement selections only for SCARA
axes (Axis 1 to Axis 4).
(This item is displayed only when the X-SEL-JX/KX, PX/QX, RX/SX and RXD/SXD controllers
are connected and SCARA axes (Axis 1 to Axis 4) are effective axes.)
Axis5-8: Display the axis-specific buttons, setting functions and movement selections only for SCARA
axes (Axis 5 to Axis 8) or orthogonal axes (Axis 5 to Axis 8).
(This item is displayed only when the X-SEL-PX/QX, RX/SX and RXD/SXD controllers are
connected
