14. Supplemental Information
on Controller Menu Items
216
14.4 Setting Time
Select "Controller (C)" o "Time Setting (T)" from the PC Software Menu to display the Set Time screen.

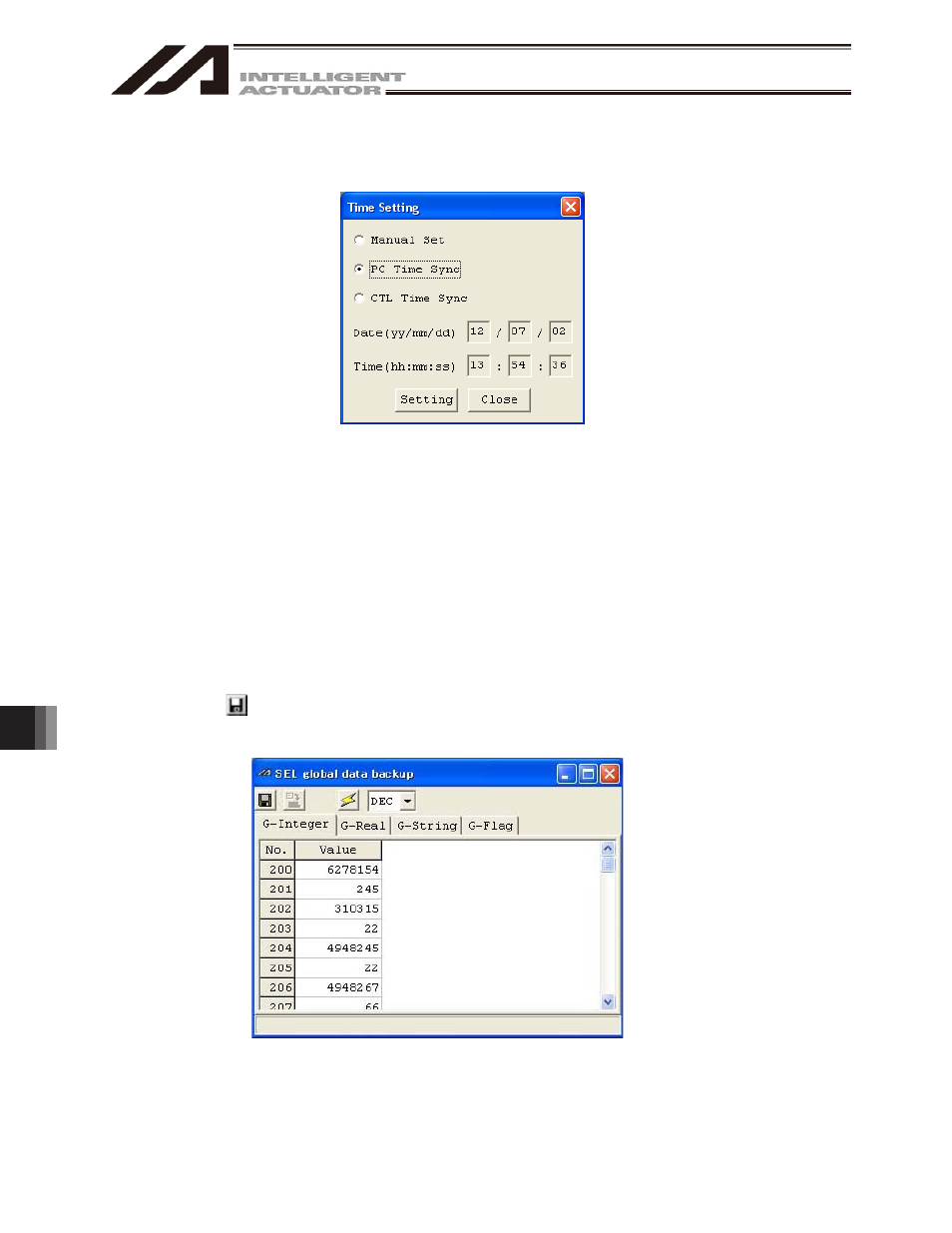

Fig. 15.1 Time Setting Screen
Manual entry: Directly enter the time (date & time) you want to set to the controller.
Show PC time: The time (date & time) set in the PC you are currently using is shown.
Show controller time: The time (date & time) currently set in the controller is shown.
"Setting" button: Set the time (date & time) shown on the screen to the controller.
14.5 SEL Global Data Backup
[1] Saving to a file
Global flags, global integer variables, global real variables and global strings can be saved.
Select SEL global data backup (G) from the Controller pop-up menu and then click Save File AS (S).
The SEL global data backup screen (Save File AS) will be displayed.
Clicking
will save the global data.
Fig. 15.2 SEL Global Data Backup Screen (Save File AS)
