IAI America IA-101-X-USBMW User Manual
Page 125
7. Copying/Moving/Clearing Position Data
117
The following screen will be displayed for the SSEL, ASEL and PSEL or X-SEL-P/Q and PX/QX
compatible with increased memory (with gateway function) or R/S, RX/SX and RXD/SXD.
(PC interface software version 7.2.0.0 or later)

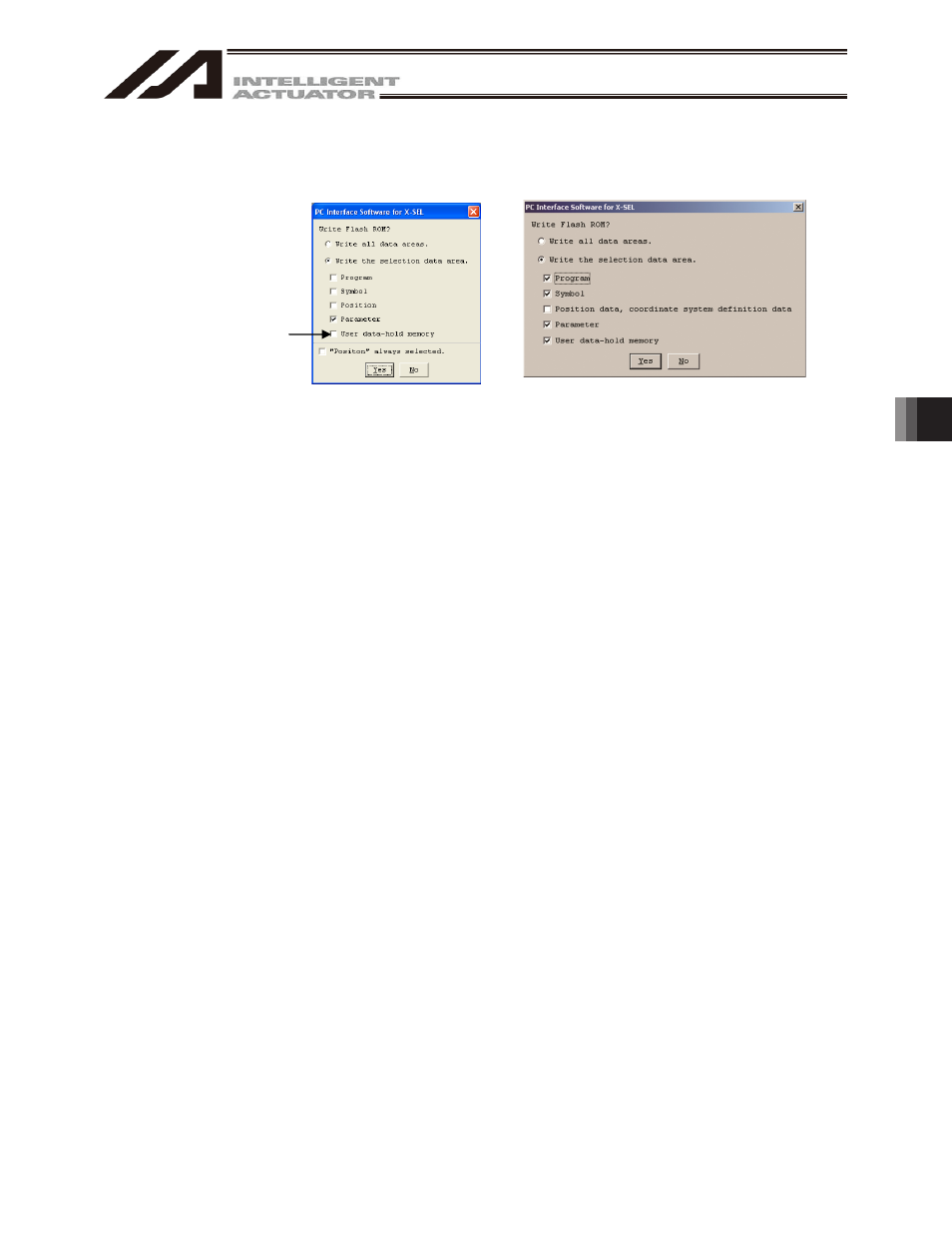

Fig. 7.4 Confirmation Fig. 7.5 Confirmation
(X-SEL-P/Q, R/S, SSEL, ASEL, PSEL) (X-SEL-PX/QX, RX/SX, RXD/SXD)
Click and select a desired item (Position, etc.) to write to the flash ROM.
Click Yes ĺ The memory data will be written to the flash ROM.
Click No ĺ The memory data will not be written to the flash ROM.
* The number of writing to the flash ROM is limited (approx. 100,000 times). If you do not write all the data,
select Write Selected Data Region and write to the flash ROM.
This is not displayed for
SSEL, ASEL and PSEL.
