13.3.3 Absolute Reset (Ball-screw Spline Adjustment) Procedure
(1) Select a "linear movement axis number" which will be used to perform an absolute reset (ball-screw spline
adjustment).

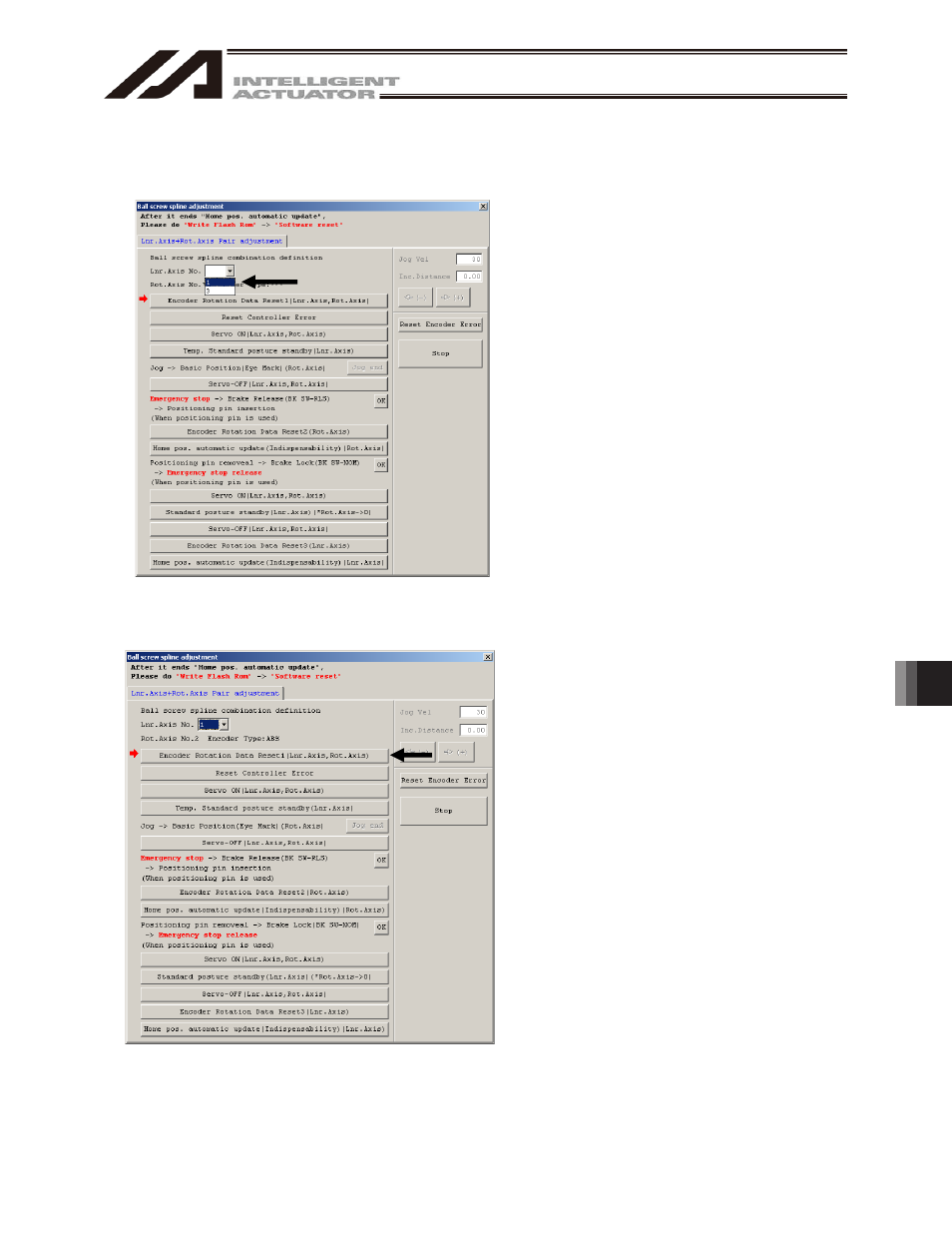

Fig. 14.43 Linear Movement Axis Number Selection Operation
(2) Click the [Encoder Rotation Data Reset (Lnr. Axis, Rot. Axis)] button.
Fig. 14.44 Encoder Multi-Rotation Data Reset 1 Operation
