1. Before
You Begin
39

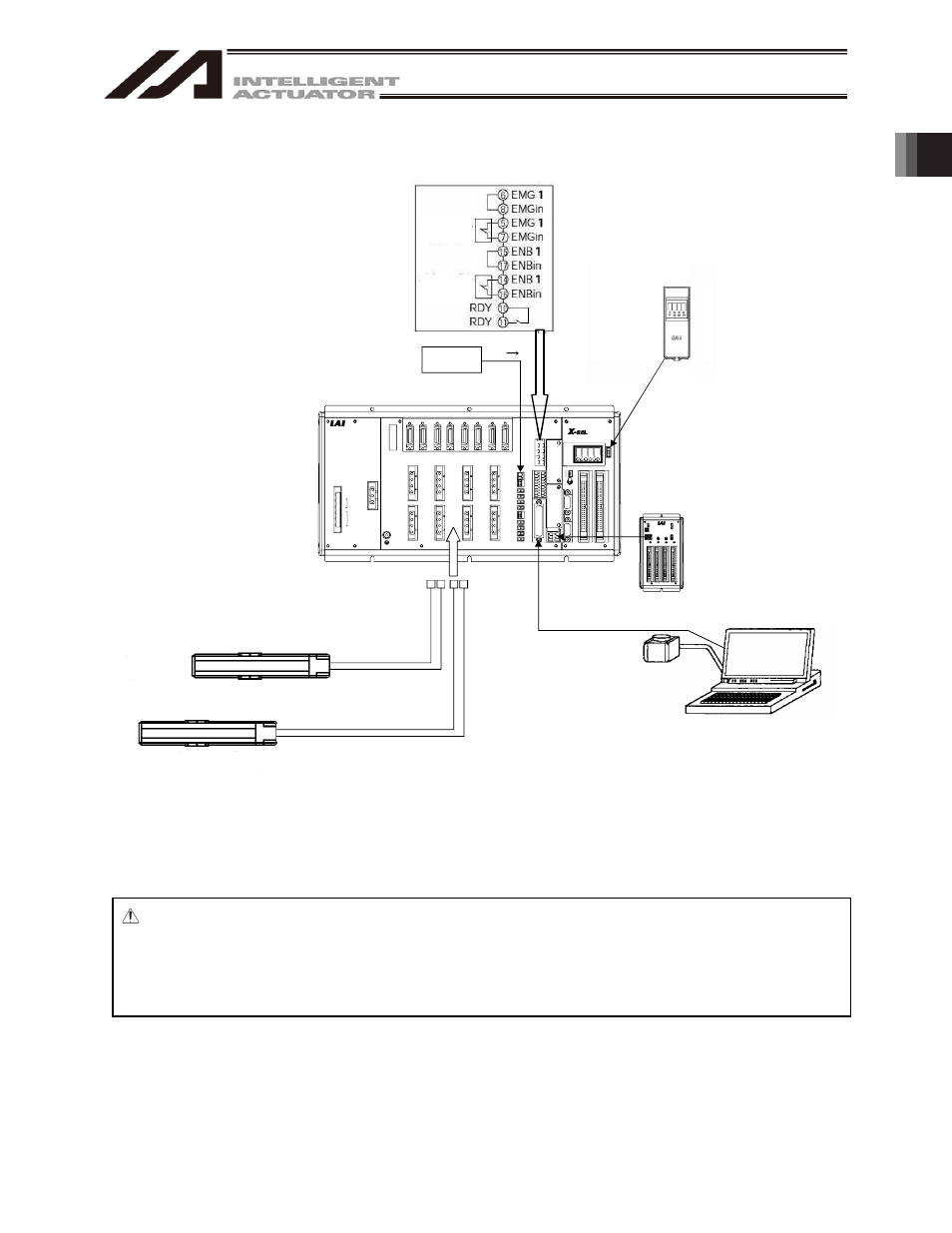

Fig. 1.40 X-SEL-R (S) Type Controller
Warning: The internal components of the controller may burn if the following cable is used to connect
XSEL-S to a computer.
PC software IA-101-X-MW
Accessory cable CB-ST-E1MW050 (black)
Even though the PC software can be used, make sure to use the cable CB-ST-A1MW050
(gray).
%1 06 41 ..'4
1A
Emergency
Stop Switch
Enable
Switch
24-V Power
Supply
Panel
Unit
Motor cable
Encoder cable
Expansion I/O unit
(optional)
PC
