3. Menu W

indow

3.3 Explanation of the Toolbar

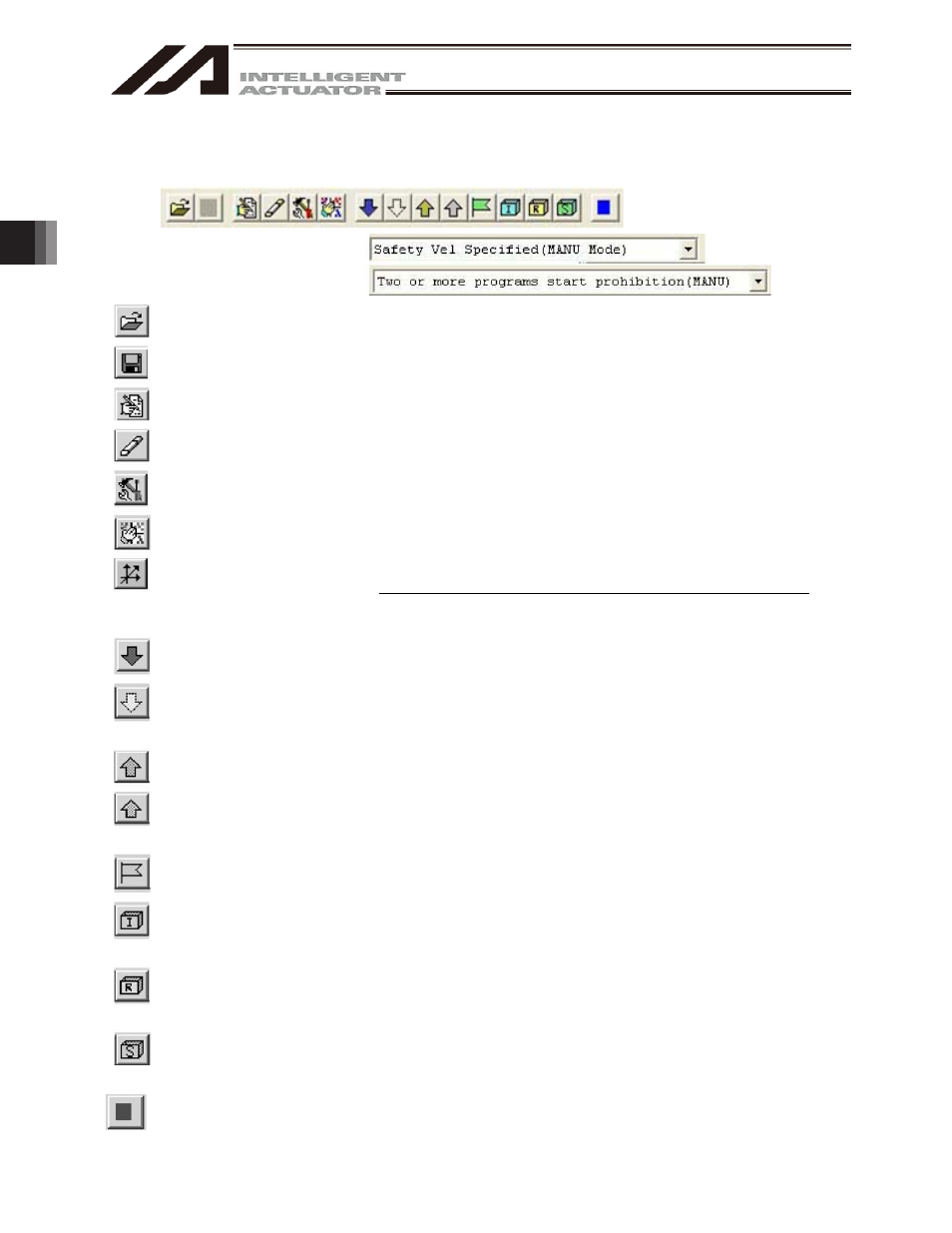

This section explains the toolbar (Fig.3.27) shown at the top of the main window (below the menu bar).

Fig. 3.29 Toolbar

Open File

Same as clicking File (F) and then selecting Open (O).

Save

Same as clicking File (F) and then selecting Save (S).

Edit Program

Same as clicking Program (S) and then selecting Edit (E).

Edit Position

Same as clicking Position (O) and then selecting Edit (E).

Edit Parameter

Same as clicking Parameter (P) and then selecting Edit (E)

Edit Symbol

Same as clicking Symbol (Y) and then selecting Edit (E)

Edit Coordinate System

Definition Data

Same as clicking Coordinate System (D) and then selecting Edit (E).

This item is displayed for X-SEL-JX/KX and PX/QX controllers.

Monitor Input Port

Same as clicking Monitor (M) and then selecting Input Port (I).

Monitor Virtual Input Port

Same as clicking Monitor (M) and then selecting Virtual Input Port (N).

Monitor Output Port

Same as clicking Monitor (M) and then selecting Output Port (O).

Monitor Virtual Output Port

Same as clicking Monitor (M) and then selecting Virtual Output Prot (U).

Monitor Global Flag

Same as clicking Monitor (M) and then selecting Global Flag (F).

Monitor Global Integer

Variable

Same as clicking Monitor (M) and then selecting Global Integer (L).

Monitor Global Real

Variable

Same as clicking Monitor (M) and then selecting Global Real (R).

Monitor Global String

Variable

Same as clicking Monitor (M) and then selecting Global String (G).

End All Operations

Same as clicking Program (S) and then selecting End All Programs (T).
