6. Position Data Edit W
indow
99

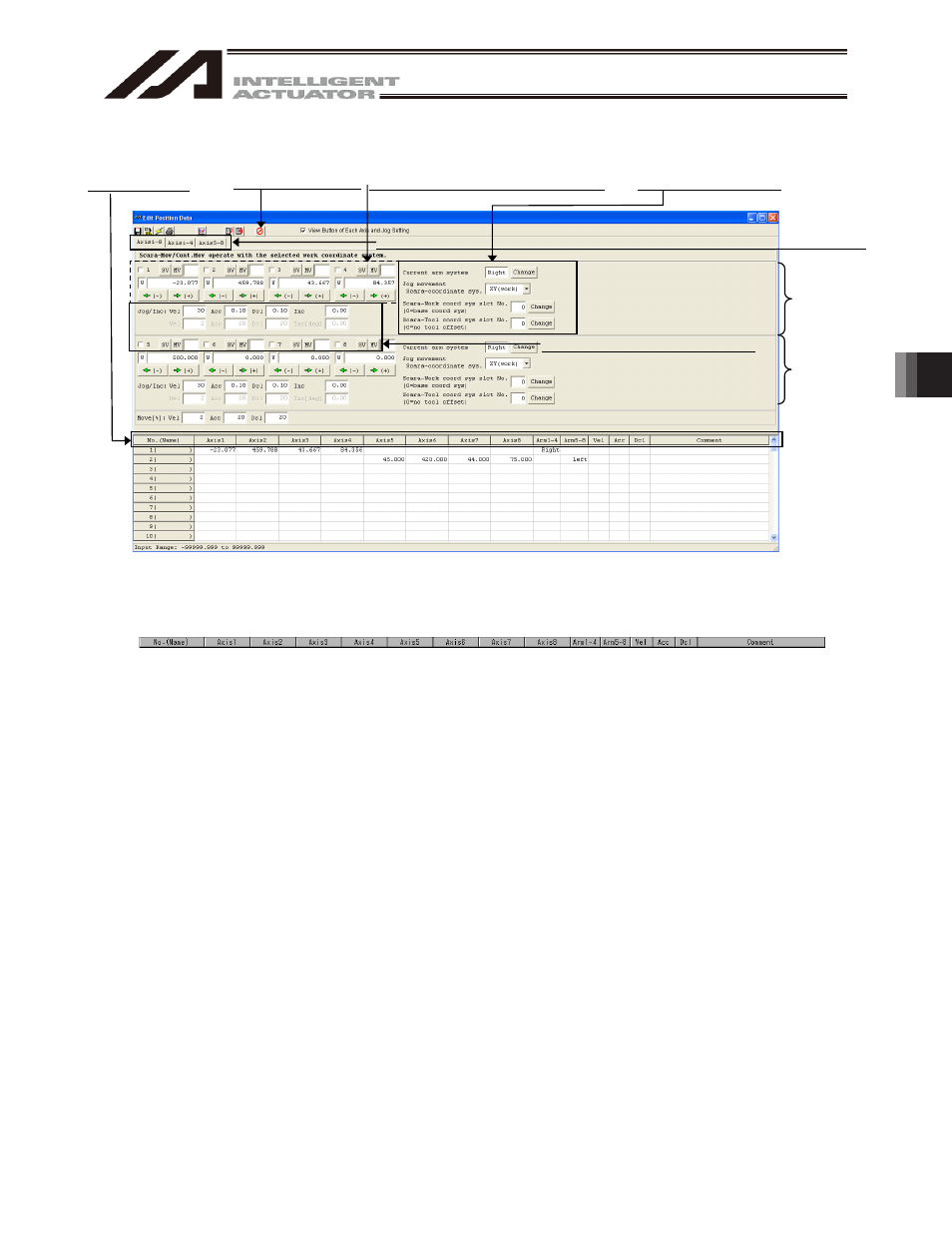

Fig. 6.11 Position Data (X-SEL-RXD/SXD)
(1) Position data
Fig. 6.12 Position Data (X-SEL-RXD/SXD)
(1) Position data (2) Common buttons (6) Axis-specific buttons (SCARA axis) (8) Movement setting
(9) Axis-specific button/setting function/movement setting display axis switching
SCARA
axis
setting
Orthognal
axis
setting
(7) Setting functions (SCARA axis)
