10.2 Work Coordinate System
A total of 32 different coordinates, provided as a combination of three-dimensional orthogonal coordinates
and rotation axis coordinates, are defined by the offset of each axis with respect to the base coordinate
system. Note that work coordinate system No. 0 is reserved in the system as the base coordinates (= work
coordinate system offsets are 0).

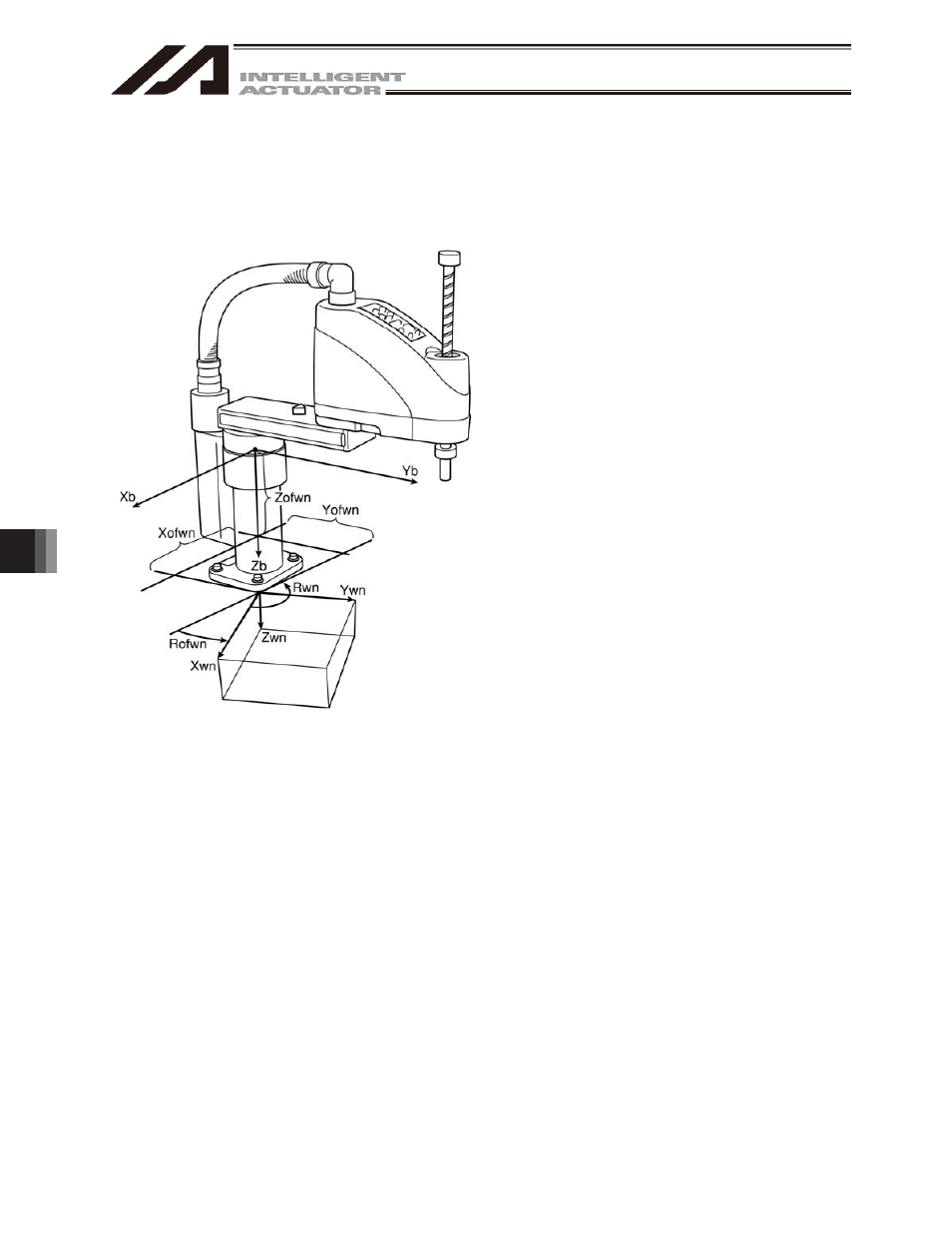

Xofwn: X work coordinate offset
Yofwn: Y work coordinate offset
Zofwn: Z work coordinate offset
Rofwn: R work coordinate offset
Xwn: Work coordinate system, X-axis
Ywn: Work coordinate system, Y-axis
Zwn: Work coordinate system, Z-axis
Rwn: Work coordinate system, R-axis
(n indicates work coordinate system No.)
