11. Monitor
161
(6) Local Data (Version V9.00.01.00 or later)
Select “Monitor (M)” ĺ “Local Data (B)” in the main menu and the Show Local Data window opens.
The Program No. selected in the Show Local Data window and the local data in the Category of Local
Data are displayed.

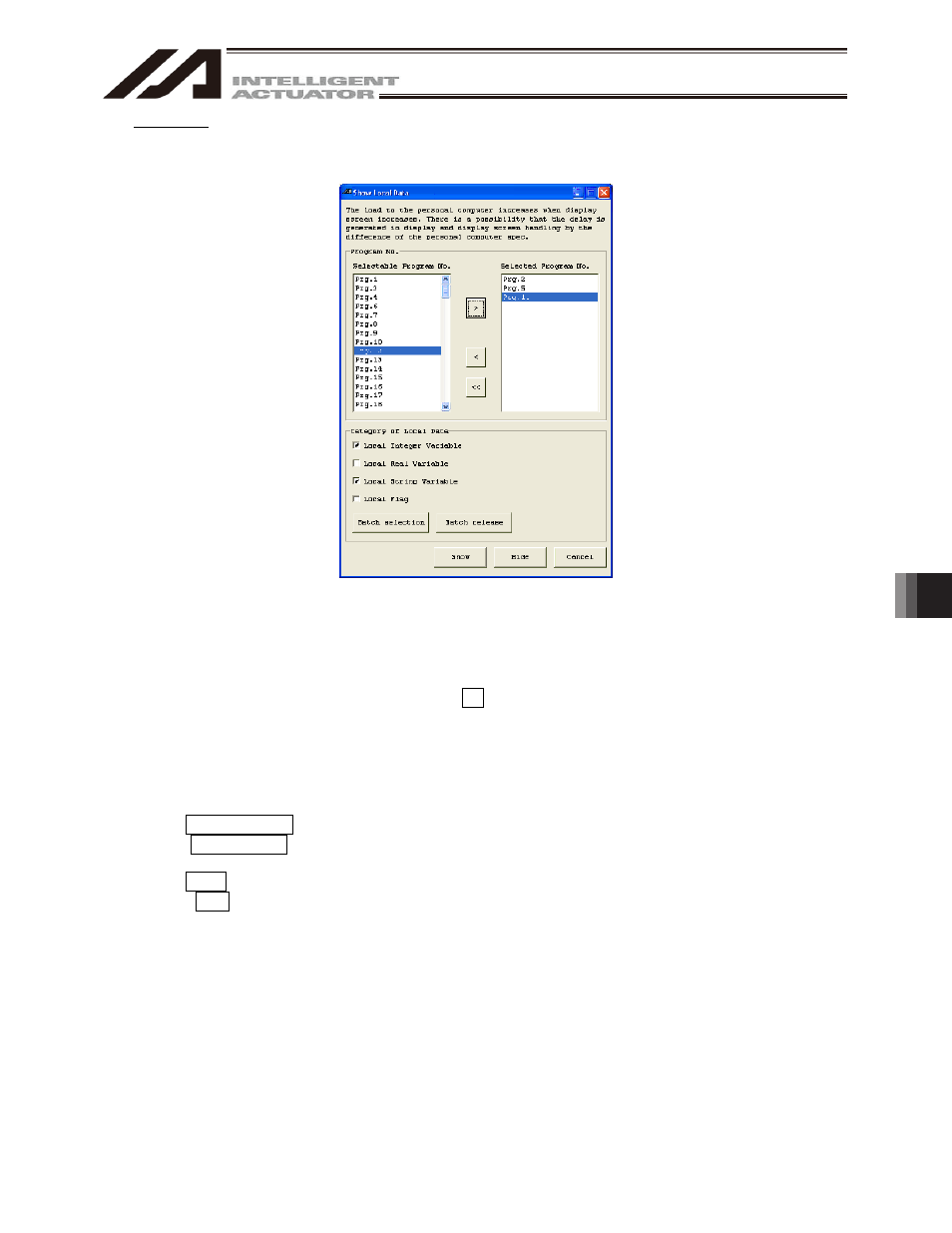

Fig. 11.14 Show Local Data Window
Select the Program No. to the local data and the Category of Local Data by following the steps below to show
the local data.
1) Selection of Program No.
Select a Program No. from the Selectable Program No. and click on it. The background color of the
Selectable Program No. turns into blue. Click on > . The data will be displayed in the Selectable Program
No..
2) Selection of Category of Local Data
Click in the box for the item to be displayed from the Category of Local Data. A tick mark 3 will be
shown in the selected box.
(Click again to remove the tick mark 3 and cancel the selection.)
Click on Batch selection to select all the selectable items at once.
(Click on Batch release to make all the selected ones cancelled.)
3) Click on Show and the local data display window will be shown.
(Click on (Hide) and the display window will be hidden.)
