13. How to Reset an
Absolute Encoder
198
(7) Click the [Temp. Standard posture standby (Lnr. Axis)] button.
x Be careful because the linear movement axis (Z-axis) returns to its home.

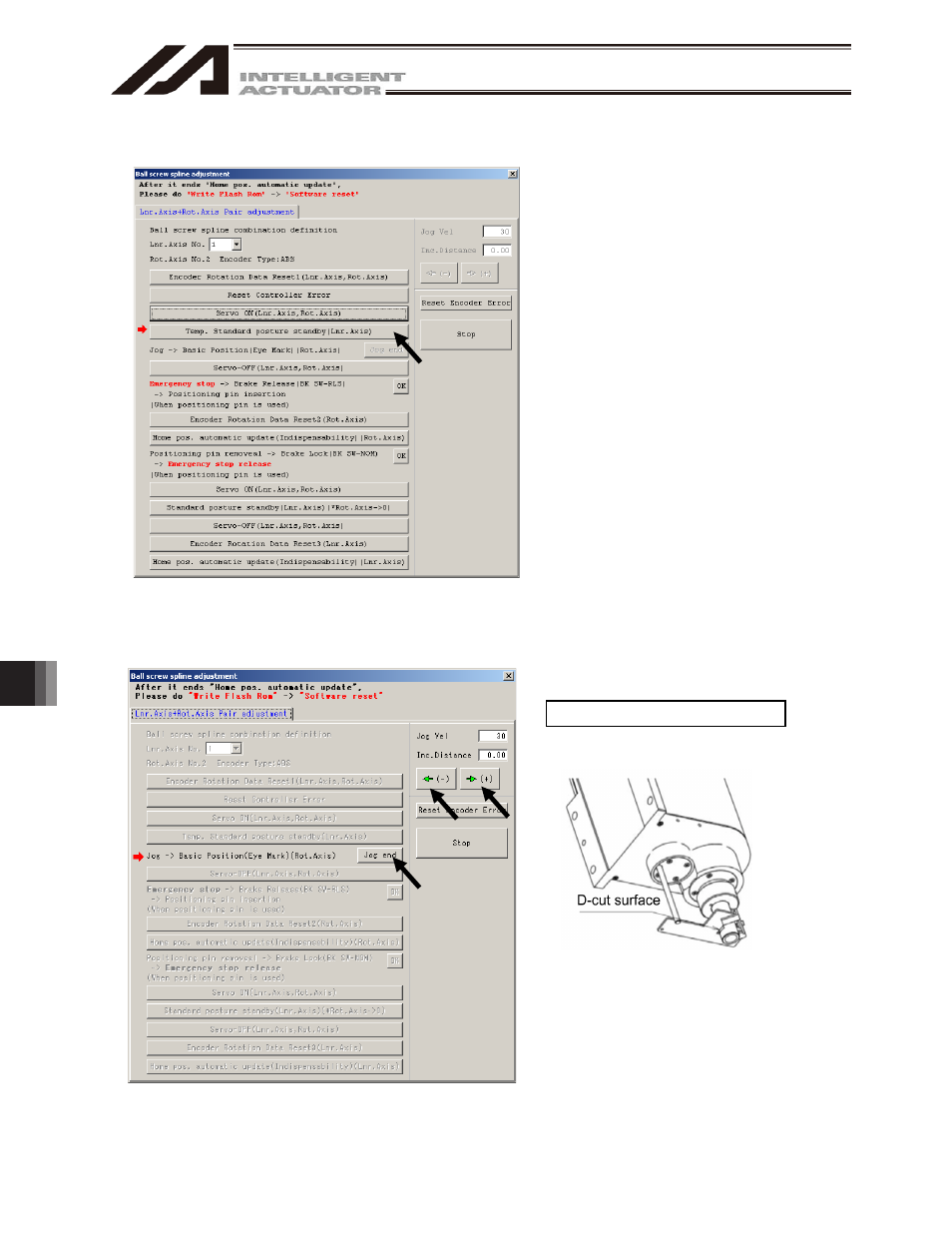

Fig. 14.49 Tentative Reference Posture Operation
(8) Jog the rotational movement axis (R-axis) to the reference posture position (refer to the illustration of
reference posture), and then click the [Jog end] button.
Fig. 14.50 Jogging
Illustration of reference posture
