1. Before
You Begin
15
1. Before You Begin
1.1 Items Supplied with This Software (Product Components)
Please check to make sure that the following items are included in your software package.
[1] Operation manual One
[2] CD-ROM containing the software One
[3] Permission of use contract (manual) for the software One
[4] External connection cables One set
External connection cables vary depending on the PC interface software type.

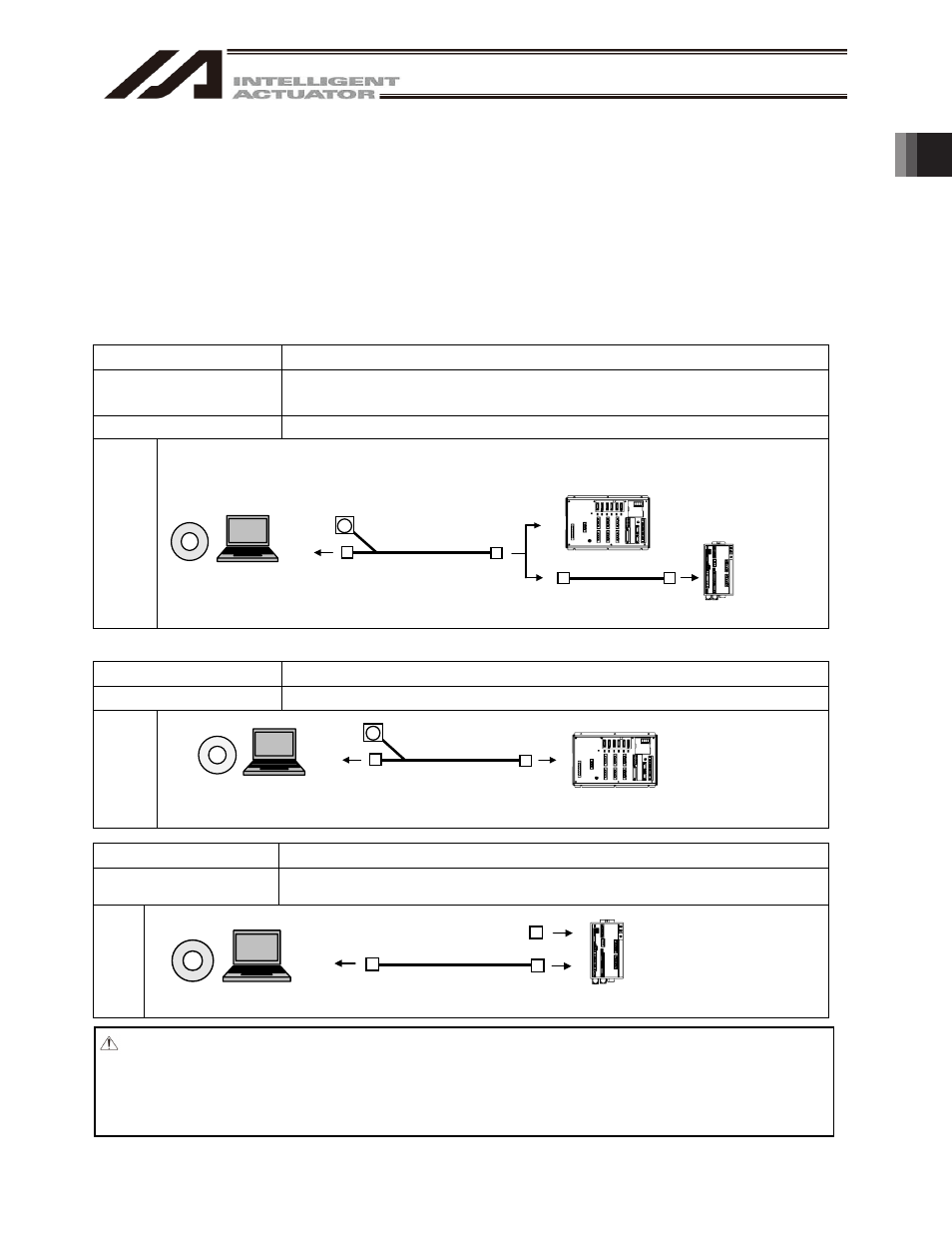

The types and external connection cables are shown in the table below.
Type External Connection Cable
IA-101-X-MW-J
RS232C cable (CB-ST-E1MW050-EB): 1 cable
Conversion cable (CB-SEL-SJ002): 1 cable
IA-101-X-MW RS232C cable (CB-ST-E1MW050-EB): 1 cable
C
on
ne
ct
io
n
Config
uratio
n
Compatible controller
XSEL-P, PX, R, RX, RXD
PX Compatible
controller SSEL
RS232C cable
CB-ST-E1MW050-EB
Conversion cable: CB-SEL-SJ002
When an NEC computer is used, some models may require an adapter separately for the RS232C cable.
Type External Connection Cable
IA-101-XA-MW Cable Conforming to Safety Category 4 (CB-ST-A1MW050-EB): 1 cable
C
on
ne
ct
io
n
Config
uratio
n
Compatible controller
XSEL-Q, QX, S, SX,
SXD
Cable corresponding to safety category
CB-ST-A1MW050-EB
Type External Connection Cable
IA-101-X-USB
USB cable (CB-SEL-USB030): 1 cable
Dummy plug (DP-3) 1 unit
C
on
ne
ct
io
n
Config
uratio
n
Dummy plug
DP-3 Compatible controller
SSEL
USB cable CB-SEL-USB030
Warning: The internal components of the controller may burn if the following cable is used to connect
XSEL-Q or QX to a computer.
PC software IA-101-X-MW
Accessory cable CB-ST-E1MW050 (black)
Even though the PC software can be used, make sure to use the cable CB-ST-A1MW050 (gray).
