13. How to Reset an
Absolute Encoder
175

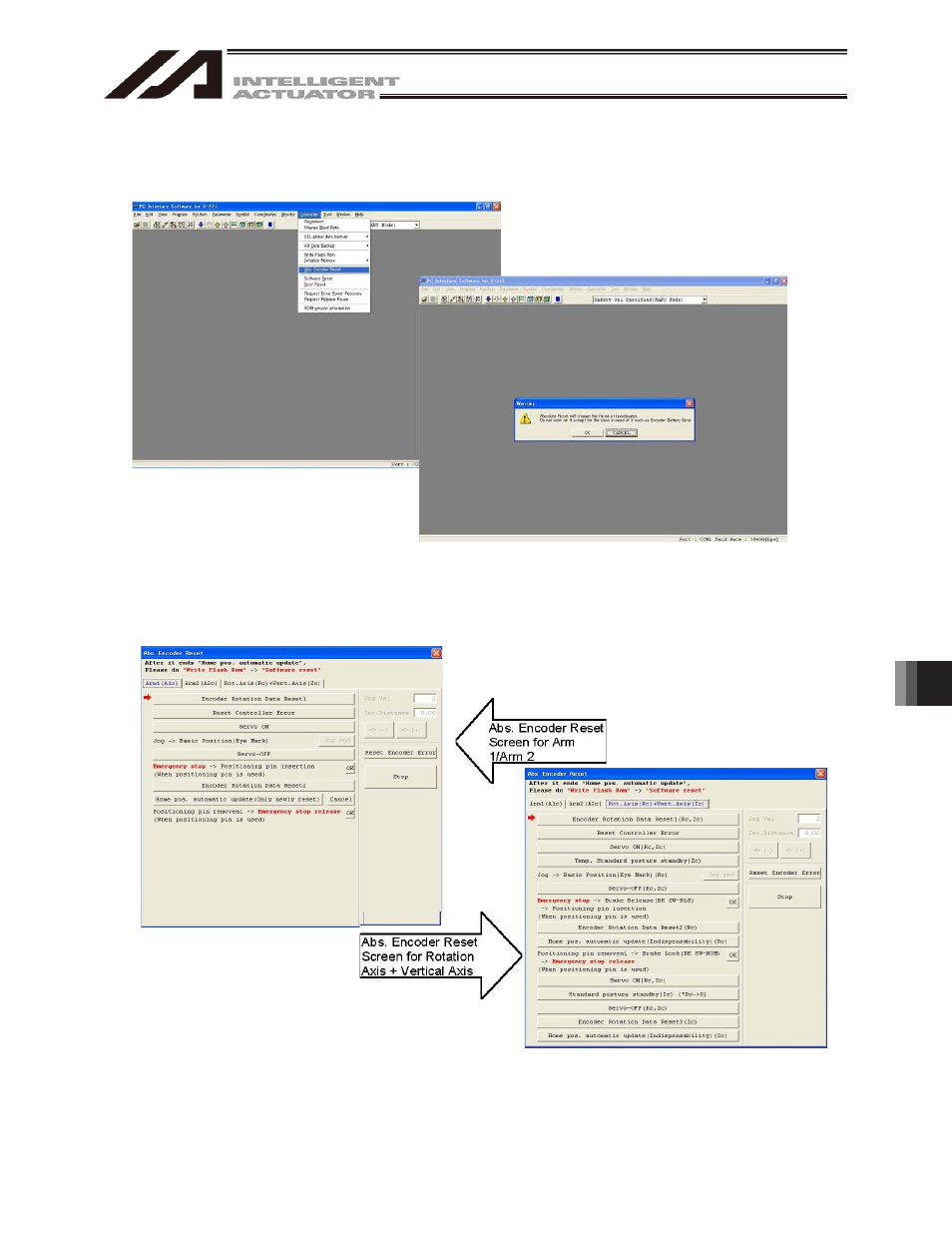

13.2.2 Starting the Absolute Reset Menu
(1) Open the Abs. Encoder Reset window from PC software.
(Note) In the case of X-SEL-PX/QX, RX/SX, and RXD/SXD select Abs. Encoder Reset (Scara Axis) (Y).
Fig. 14.7 Opening Operation of Abs. Encoder Reset Window
(2) The Abs. Encoder Reset window will open.
x One of three Abs. Encoder Reset screens - for Arm1 (A1c), Arm2 (A2c), Rot. Axis (Rc) + Vert. Axis (Zc)
- is displayed when a corresponding tab is clicked.
Fig. 14.8 Abs. Encoder Reset Window
