Page 52 Epson Research and Development
Vancouver Design Center
S1D13705 Hardware Functional Specification
X27A-A-001-10 Issue Date: 02/02/01
7.3.10 9/12-Bit TFT/D-TFD Panel Timing

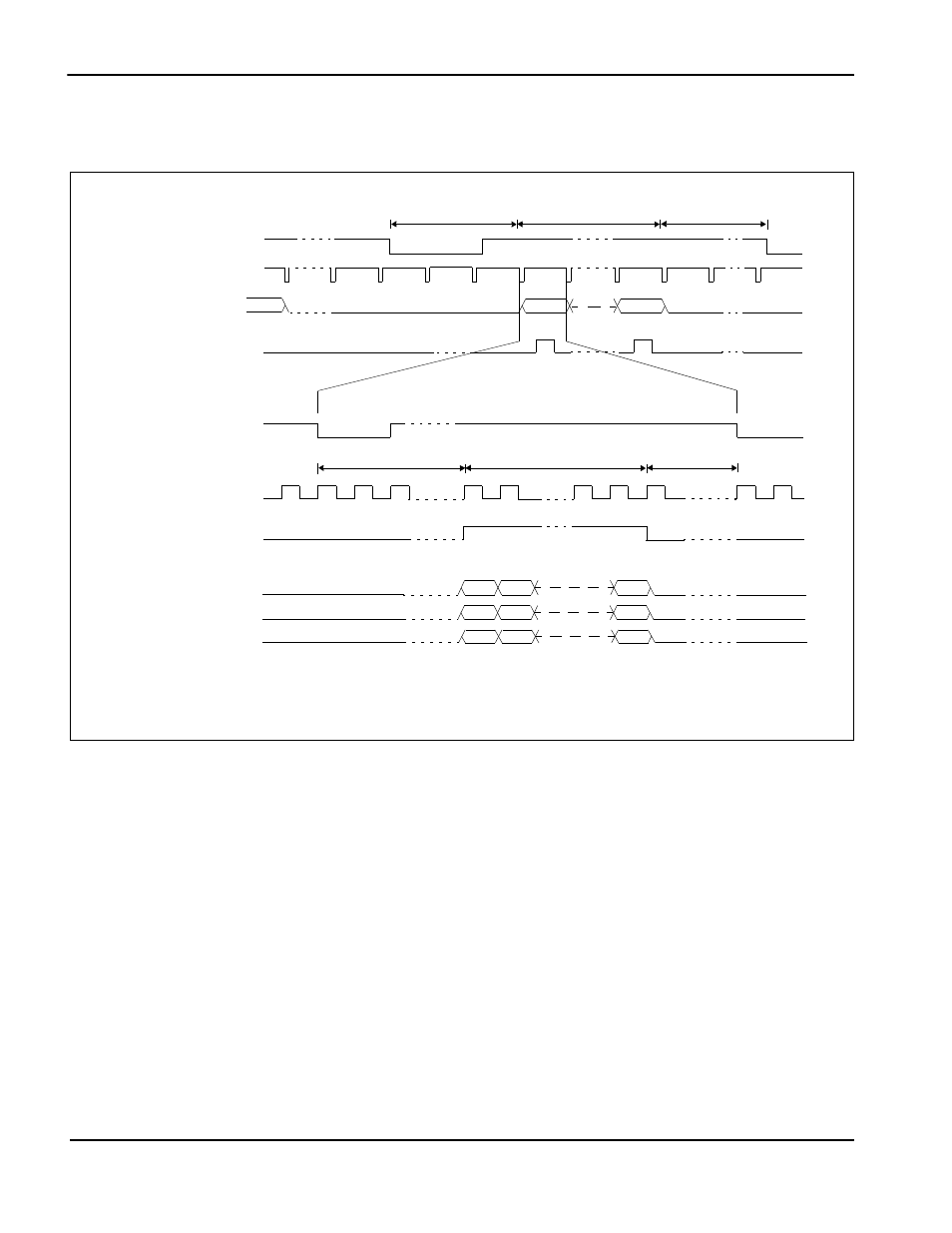

Figure 7-25: 12-Bit TFT/D-TFD Panel Timing
VDP = Vertical Display Period = (REG[06h] bits 1-0, REG[05h] bits 7-0) + 1 Lines
VNDP = Vertical Non-Display Period = VNDP1 + VNDP2 = (REG[0Ah] bits 5-0) Lines
VNDP1 = Vertical Non-Display Period 1 = REG[09h] bits 5-0 Lines
VNDP2 = Vertical Non-Display Period 2 = (REG[0Ah] bits 5-0) - (REG[09Ah] bits 5-0) Lines
HDP = Horizontal Display Period = ((REG[04h] bits 6-0) + 1) x 8Ts
HNDP = Horizontal Non-Display Period = HNDP1 + HNDP2 = (REG[08h] + 4) x 8Ts
HNDP1= Horizontal Non-Display Period 1 = ((REG[07h] bits4-0) x 8) +16Ts
HNDP2= Horizontal Non-Display Period 2 = (((REG[08h] bits4-0) - (REG[07h] bits 4-0)) x 8) +16Ts
FPFRAME
FPLINE
LINE1 LINE480
1-1
1-1
1-1
1-2
1-2
1-2
1-640
1-640
1-640
FPLINE
FPSHIFT
DRDY
FPDAT[11:0]
FPDAT[9]
FPDAT[10]
FPDAT[11]
VDP
DRDY
Note: DRDY is used to indicate the first pixel
Example Timing for 12-bit 640x480 panel
VNDP
2
HDP HNDP
2
HNDP
1
LINE480
VNDP
1
FPDAT[8:6]
FPDAT[4:3]
FPDAT[2:0]
