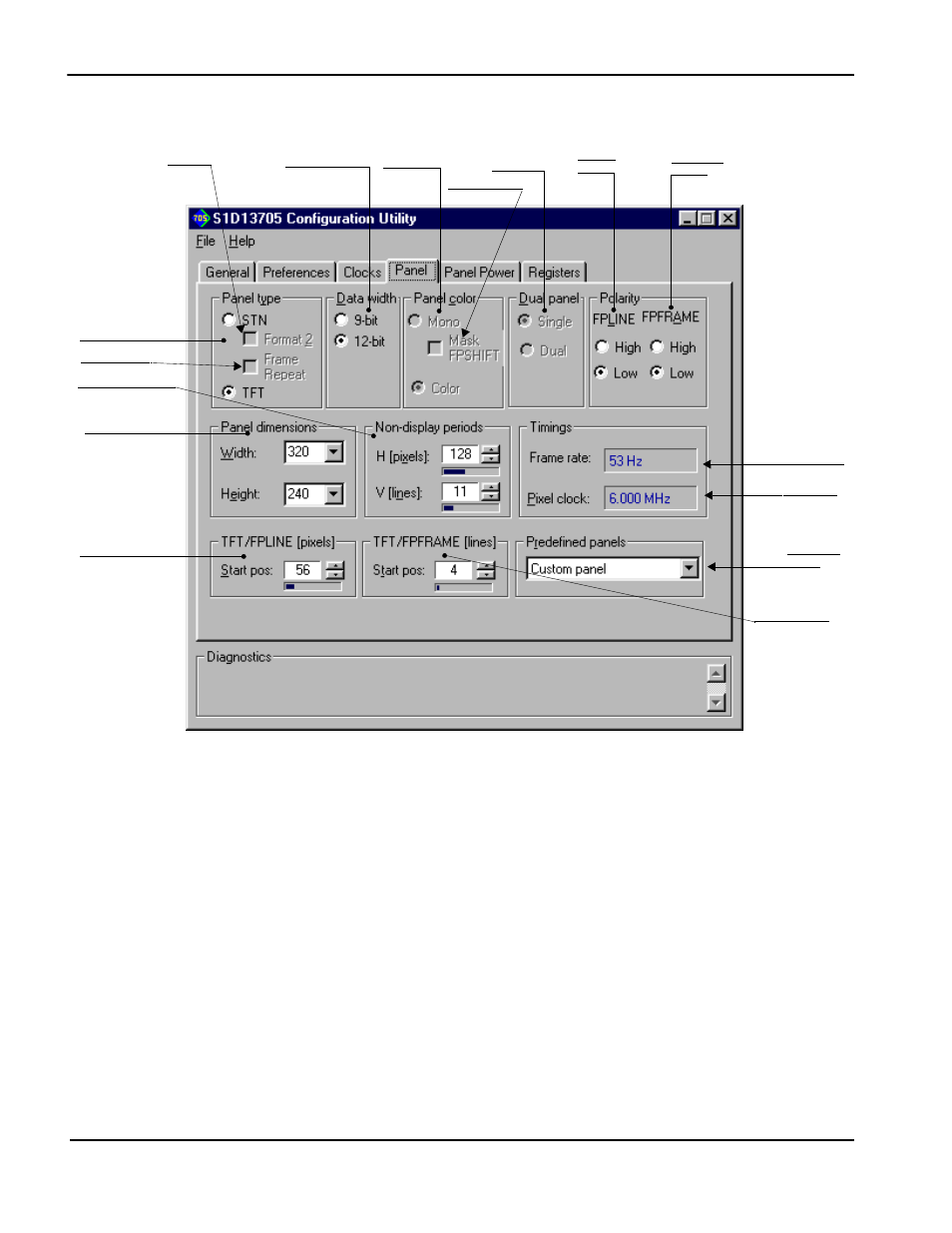

S1D13705 13705CFG Configuration Program
X27A-B-001-03 Issue Date: 02/03/11
Panel Tab
The S1D13705 supports many panel types. This tab allows configuration of most panel
settings such as panel dimensions, type and timings.
Panel Type Selects between passive (STN) and active (TFT/D-
TFD) panel types. The Epson D-TFD panels are
supported only in TFT compatible mode.
Several options may change or become unavailable
when the STN/TFT setting is switched. Therefore,
confirm all settings on this tab after the Panel Type is
changed.
Panel Type
TFT/FPLINE
TFT/FPFRAME
Panel Data Width
FPLINE FPFRAME
Frame Rate
Pixel Clock
Predefined
Panels
Polarity Polarity
Panel Color Format 2
Panel Dimensions
Non-display Periods
Dual Panel
Frame Repeat
Mask FPSHIFT
