7.3 Display Interface
7.3.1 Power On/Reset Timing

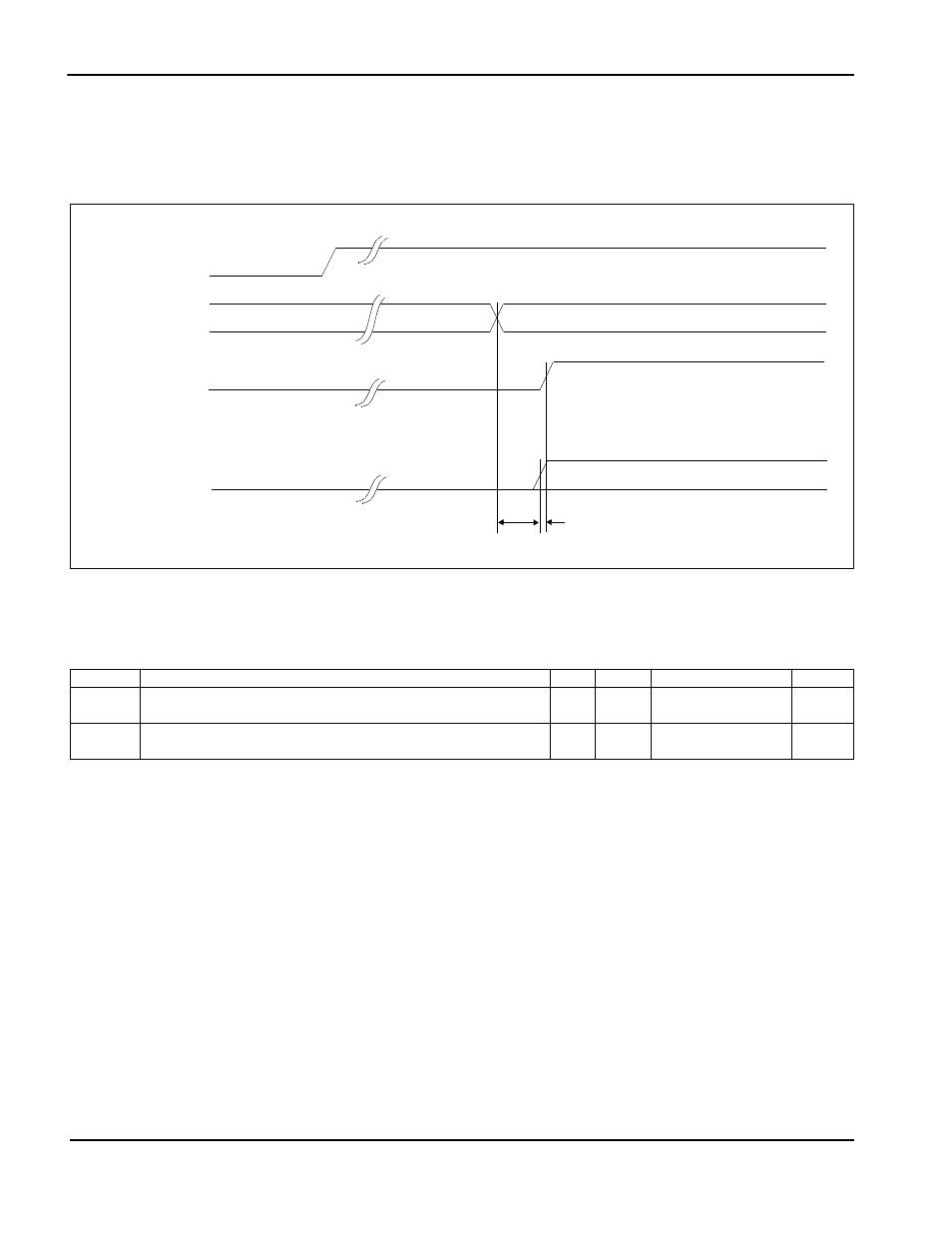

Figure 7-9: LCD Panel Power On/Reset Timing
Note
Where T
FPFRAME
is the period of FPFRAME and T
PCLK
is the period of the pixel clock.
Table 7-9: LCD Panel Power On/Reset Timing
Symbol
Parameter
Min
Typ
Max
Units
t1
REG[03h] to FPLINE, FPFRAME, FPSHIFT, FPDAT, DRDY
active
T
FPFRAME
ns
t2
FPLINE, FPFRAME, FPSHIFT, FPDAT, DRDY active to
LCDPWR
0
Frames
RESET#
REG[03h] bits [1:0]
LCDPWR
FPLINE
FPSHIFT
FPDAT
DRDY
t1
t2
00
11
FPFRAME
ACTIVE
