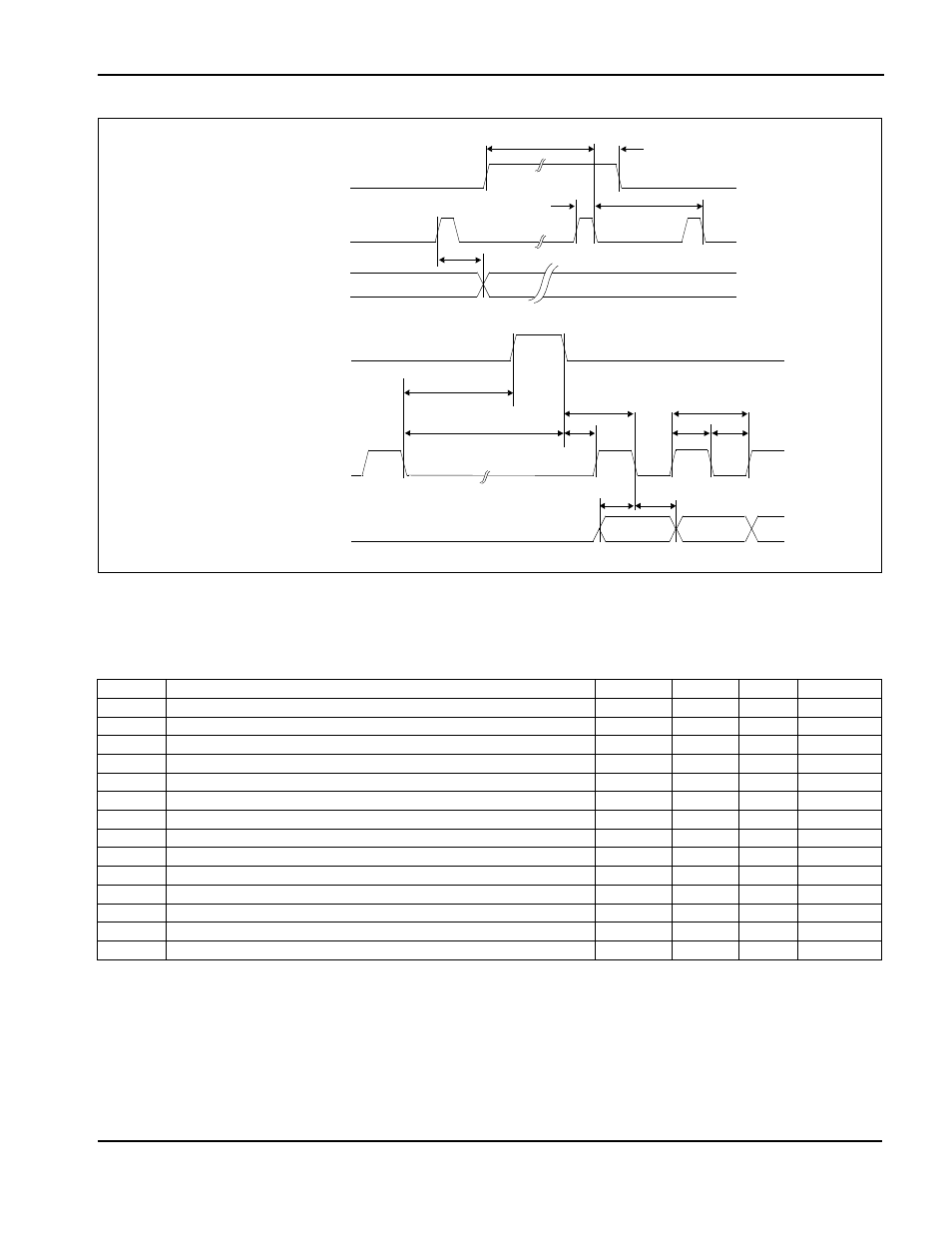

Figure 7-16: Single Color 4-Bit Panel A.C. Timing
1. Ts = pixel clock period
2. t1
min
= t3
min
- 9Ts
3. t3
min
= [((REG[04h] bits 6-0)+1) x 8 + ((REG[08h] bits 4-0) + 4) x 8]Ts
4. t6
min
= [(REG[08h] bits 4-0) x 8 + 1.5]Ts
5. t7
min
= [(REG[08h] bits 4-0) x 8 + 10]Ts
Table 7-13: Single Color 4-Bit Panel A.C. Timing
Symbol Parameter Min Typ Max Units
t1 Frame Pulse setup to Line Pulse falling edge note 2 (note 1)
t2 Frame Pulse hold from Line Pulse falling edge 9 Ts
t3 Line Pulse period note 3
t4 Line Pulse pulse width 9 Ts
t5 MOD delay from Line Pulse rising edge 1 Ts
t6 Shift Pulse falling edge to Line Pulse rising edge note 4
t7 Shift Pulse falling edge to Line Pulse falling edge note 5
t8 Line Pulse falling edge to Shift Pulse falling edge t14 + 0.5 Ts
t9 Shift Pulse period 1 Ts
t10 Shift Pulse pulse width low 0.5 Ts
t11 Shift Pulse pulse width high 0.5 Ts
t12 FPDAT[7:4] setup to Shift Pulse falling edge 0.5 Ts
t13 FPDAT[7:4] hold to Shift Pulse falling edge 0.5 Ts
t14 Line Pulse falling edge to Shift Pulse rising edge 24 Ts
Frame Pulse
Line Pulse
DRDY (MOD)
Sync Timing
Line Pulse
Shift Pulse
FPDAT[7:4]
Data Timing
t5
t14
t1 t2
t3 t4
t8 t9
t10 t11
t12 t13
