Epson Research and Development Page 9
Vancouver Design Center
Interfacing to the NEC VR4102/VR4111 Microprocessor S1D13705
Issue Date: 01/02/13 X27A-G-008-02
2.1.2 LCD Memory Access Cycles
Once an address in the LCD block of memory is placed on the external address bus,
ADD[25:0], the LCD chip select, LCDCS#, is driven low. The read or write enable signals,
RD# and WR#, are driven low for the appropriate cycle. LCDRDY is driven low by the
S1D13705 to insert wait states into the cycle. The high byte enable is driven low for 16-bit
transfers and high for 8-bit transfers.
Figure 2-1: “NEC VR4102/VR4111 Read/Write Cycles,” on page 9 shows the read and
write cycles to the LCD Controller Interface.

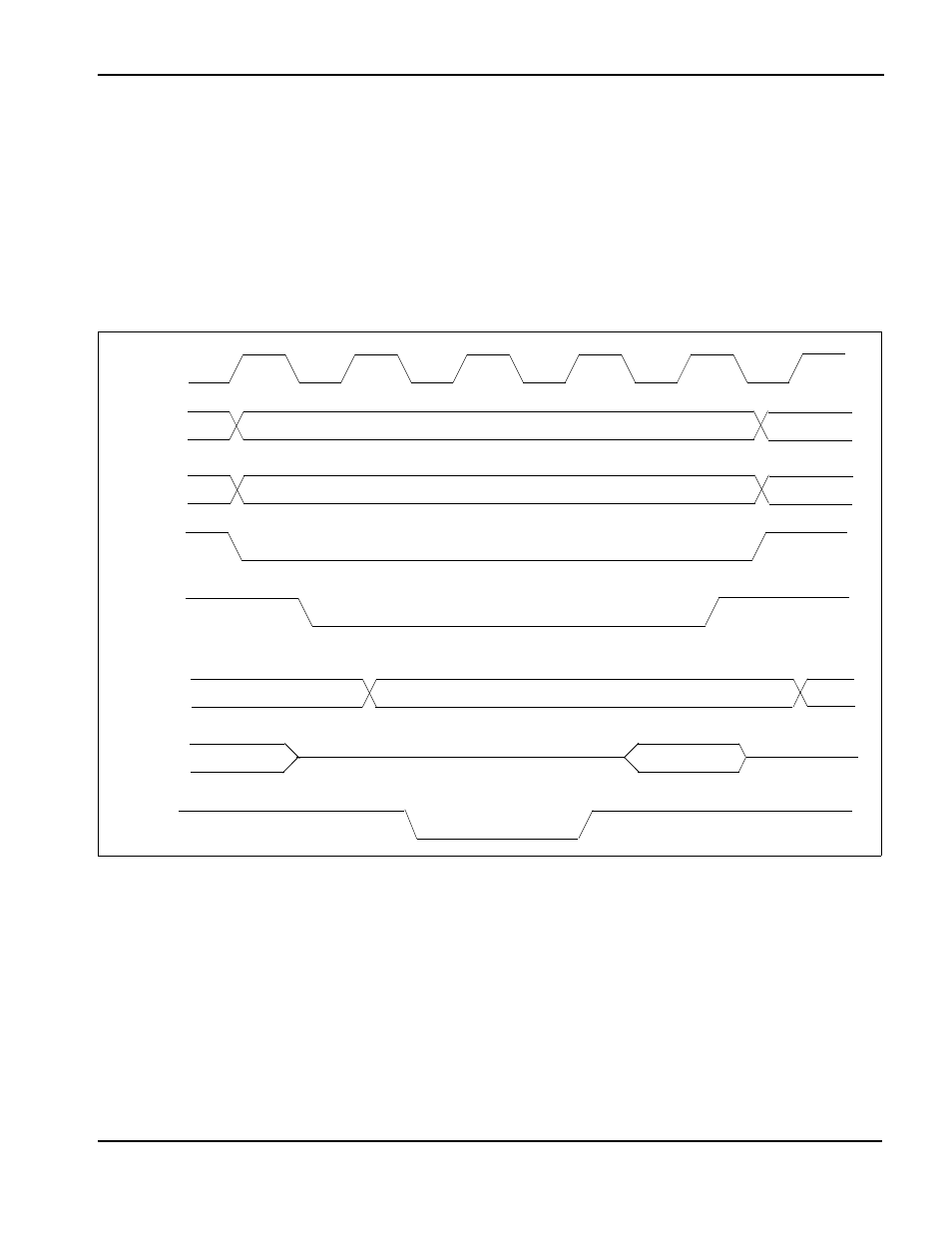

Figure 2-1: NEC VR4102/VR4111 Read/Write Cycles
TCLK
ADD[25:0]
LCDCS#
WR#,RD#
LCDRDY
VALID
VALID
VALID
Hi-Z
Hi-Z
D[15:0]
D[15:0]
(write)
(read)
SHB#
