Alternative Mode When alternate mode is selected, SwivelView requires
no virtual display but consumes more power.
For details see the S1D13705 Hardware Functional
Specification, document number X27A-A-001-xx.

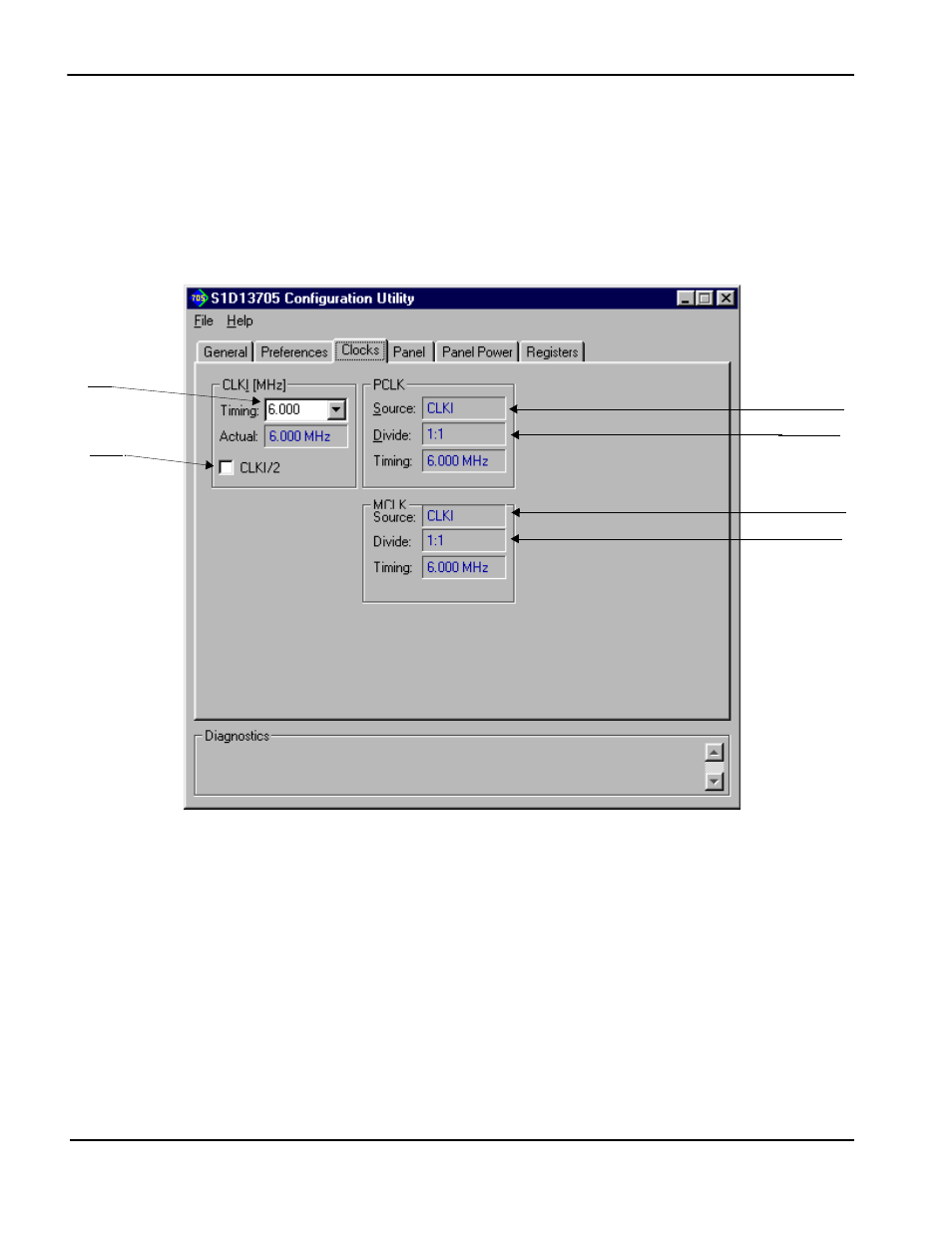

Clocks Tab
The Clocks tab is intended to simplify the selection of input clock frequencies and the
source of internal clocking signals. For further information regarding clocking and clock
sources, refer to the S1D13705 Hardware Functional Specification, document number
X27A-A-001-xx.
Note
Options for LCD frame rates are limited to ranges determined by the clock values.
Changing clock values may modify or invalidate Panel settings. Confirm all settings on
the Panel tab after modifying any clock settings.
CLKI
PCLK Source
PCLK Divide
MCLK Source
MCLK Divide
CLKI/2
