7.3.8 Dual Monochrome 8-Bit Panel Timing

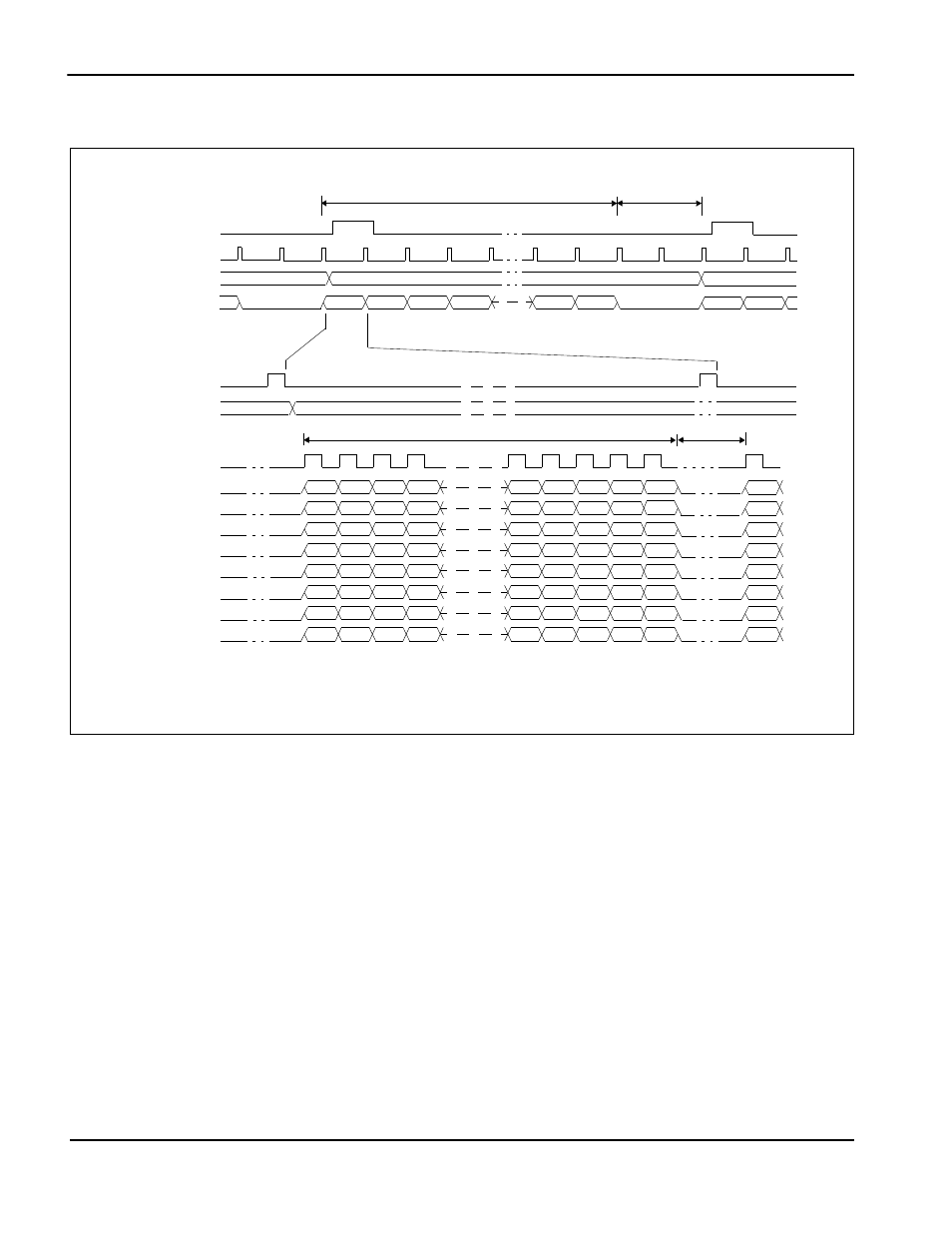

Figure 7-21: Dual Monochrome 8-Bit Panel Timing
VDP = Vertical Display Period = (REG[06h] bits 1-0, REG[05h] bits 7-0) + 1 Lines
VNDP = Vertical Non-Display Period = REG[0Ah] bits 5-0 Lines
HDP = Horizontal Display Period = ((REG[04h] bits 6-0) + 1) x 8Ts
HNDP = Horizontal Non-Display Period = (REG[08h] + 4) x 8Ts
VDP
FPLINE
FPSHIFT
FPDAT[7:0]
FPFRAME
FPLINE
DRDY (MOD)
FPDAT6 1-2 1-6 1-638
FPDAT5 1-3 1-7 1-639
FPDAT4 1-4 1-8 1-640
FPDAT3 241-1 241-5 241-637
FPDAT2 241-638
FPDAT1 241-639
FPDAT0 241-640
FPDAT7 1-1 1-5 1-637
HDP
DRDY (MOD)
241-2 241-6
241-3 241-7
241-4 241-8
VNDP
HNDP
* Diagram drawn with 2 FPLINE vertical blank period
Example timing for a 640x480 panel
LINE 1/241 LINE 2/242 LINE 3/243 LINE 4/244 LINE 239/479 LINE 240/480 LINE 1/241 LINE 2/242
