Epson Research and Development Page 21
Vancouver Design Center
13705CFG Configuration Program S1D13705
Issue Date: 02/03/11 X27A-B-001-03

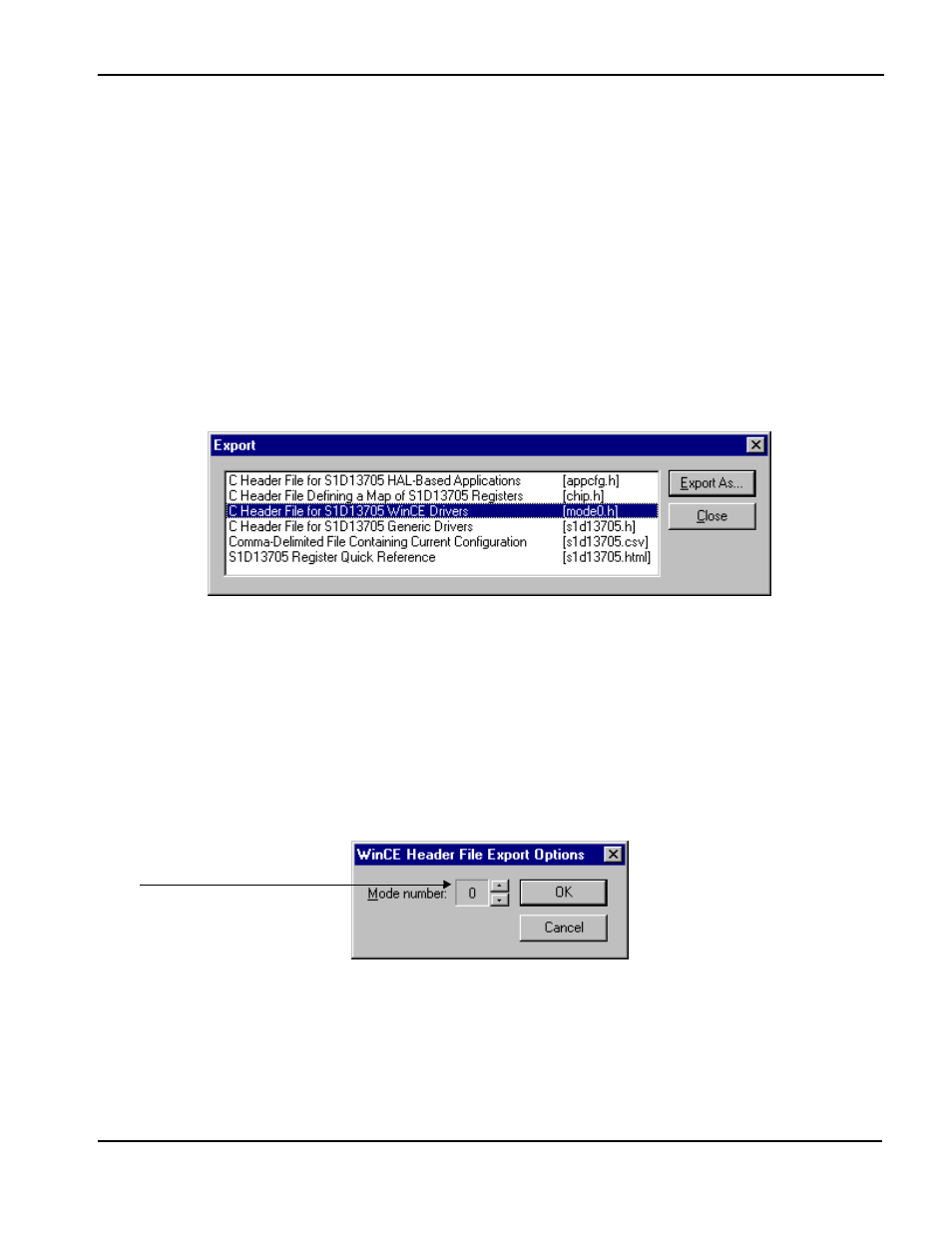

Export
After determining the desired configuration, “Export” permits the user to save the register
information as a variety of ASCII text file formats. The following is a list and description
of the currently supported output formats:
• a C header file for use in writing HAL library based applications.
• a C header file which lists each register and the value it should be set to.
• a C header file for use in developing Window CE display drivers.
• a C header file for use in developing display drivers for other operating systems such as
Linux, QNX, and VxWorks UGL or WindML.
• a comma delimited text file containing an offset, a value, and a description for each
S1D13705 register.
After selecting the file format, click the “Export As...” button to display the file dialog box
which allows the user to enter a filename before saving. Before saving the configuration
file, clicking the “Preview” button starts Notepad with a copy of the configuration file about
to be saved.
When the C Header File for S1D13705 WinCE Drivers option is selected as the export
type, additional options are available and can be selected by clicking on the Options button.
The options dialog appears as:
Mode Number
selects the mode number for
use in the header file
