Page 12 Epson Research and Development
Vancouver Design Center
S1D13705 Interfacing to the PC Card Bus
X27A-G-009-02 Issue Date: 01/02/13
4 PC Card to S1D13705 Interface
4.1 Hardware Connections
The S1D13705 is interfaced to the PC Card bus with a minimal amount of glue logic. In
this implementation, the address inputs (AB[16:0]) and data bus (DB[15:0] connect directly
to the CPU address (A[16:0]) and data bus (D[15:0]).
The PC Card interface does not provide a bus clock, so one must be supplied for the
S1D13705. Since the bus clock frequency is not critical, nor does it have to be synchronous
to the bus signals, it may be the same as CLKI.
BS# (bus start) is not used by Generic #2 mode but is used to configure the S1D13705 for
either Generic #1 or Generic #2 bus and should be tied high (connected to IO V
DD
).
RD/WR# is also not used by Generic #2 bus and should be tied high (connected to IO V
DD
).

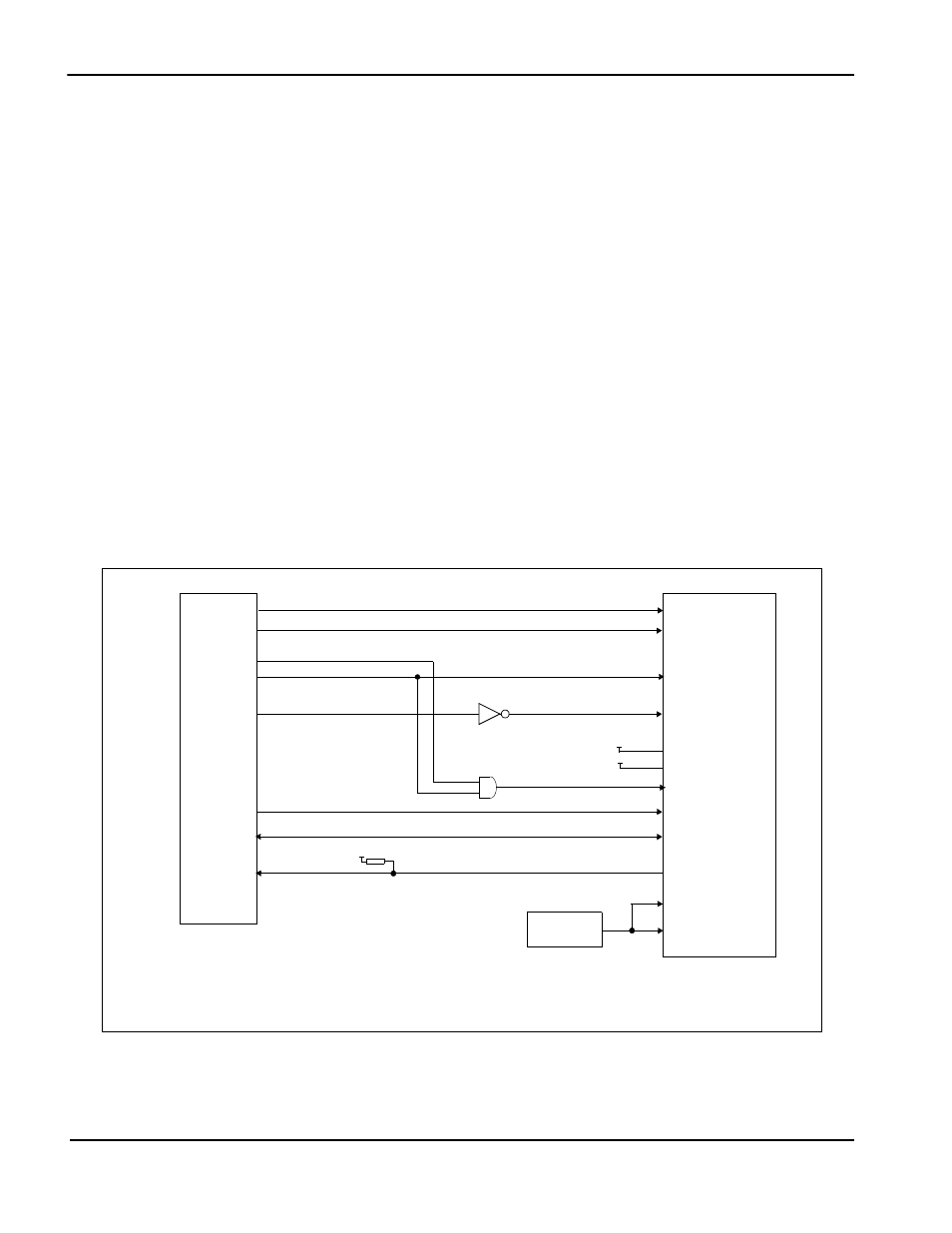

The following diagram shows a typical implementation of the PC Card to S1D13705
interface.
Figure 4-1: Typical Implementation of PC Card to S1D13705 Interface
RD/WR#
RD#
DB[15:0]
WAIT#
BUSCLK
S1D13705
RESET#
AB[16:0]
OE#
D[15:0]
WAIT#
A[16:0]
PC Card socket
15K pull-up
CLKI Oscillator
WE1#
WE0#
CS#
WE#
CE1#
CE2#
RESET
IO V
DD
BS#
IO V
DD
Note:
When connecting the S1D13705 RESET# pin, the system designer should be aware of all
conditions that may reset the S1D13705 (e.g. CPU reset can be asserted during wake-up
from power-down modes, or during debug states).
