7. Execute the Create Site command and enter the Name to be used for this site.
In the Tree View, expand the Network to expose the newly created Site.
8. Right-click on the Site icon and select Properties.
Using the Position dialog, enter the exact coordinates for the Site.
9. After adding a site, click-hold and drag-and-drop the associated Antenna
from the Satellite Tree View onto the Site.
10. Once the Hub Site and at least one Remote Site have been added and popu-
lated with their antennas, a Carrier Line should appear between them
(figure 3-117), assuming that the Sites are up and there is at least one active
link.

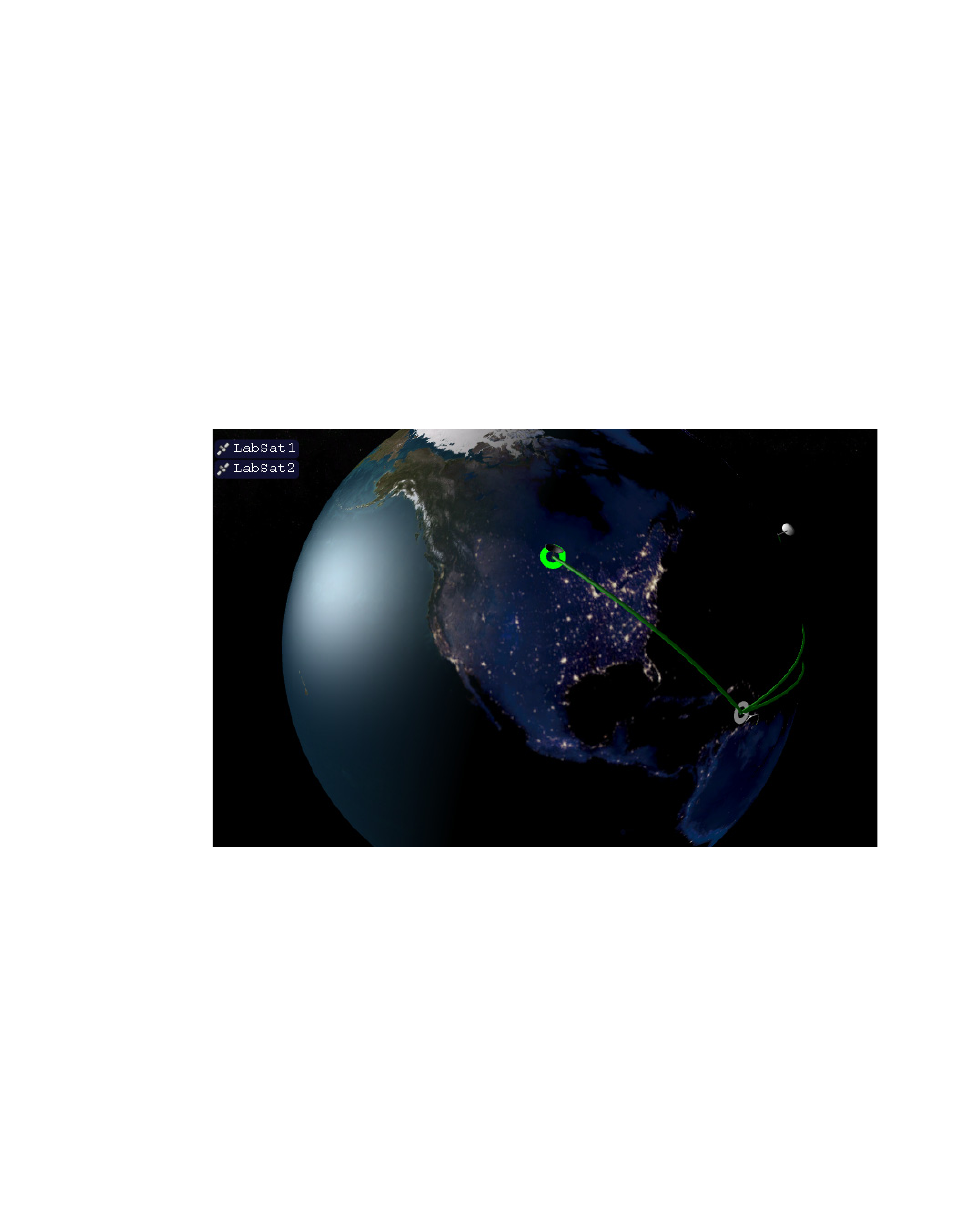

Figure 3-117 Globe View with Linked Sites
In order to have the Sites in the Network Manager and on the Globe View indi-
cate alarms, it is also necessary to drag-and-drop the subnet icons associated
with each Site into the Network Manager.
11. Click-hold and drag-and-drop the associated Subnet from the Subnet Man-
ager onto the Site.
12. Repeat the above Create Site steps to create all desired sites for the Net-
work.
