Creating and Starting a Test Case
Ethernet and Fibre Channel Application 81
Ethernet EtherSAM (Y.1564) and RFC 2544 Dual Test Set Test Cases
To create an EtherSAM (Y.1564) or RFC 2544 Dual Test Set test
case, first create the test on the remote module as follow:

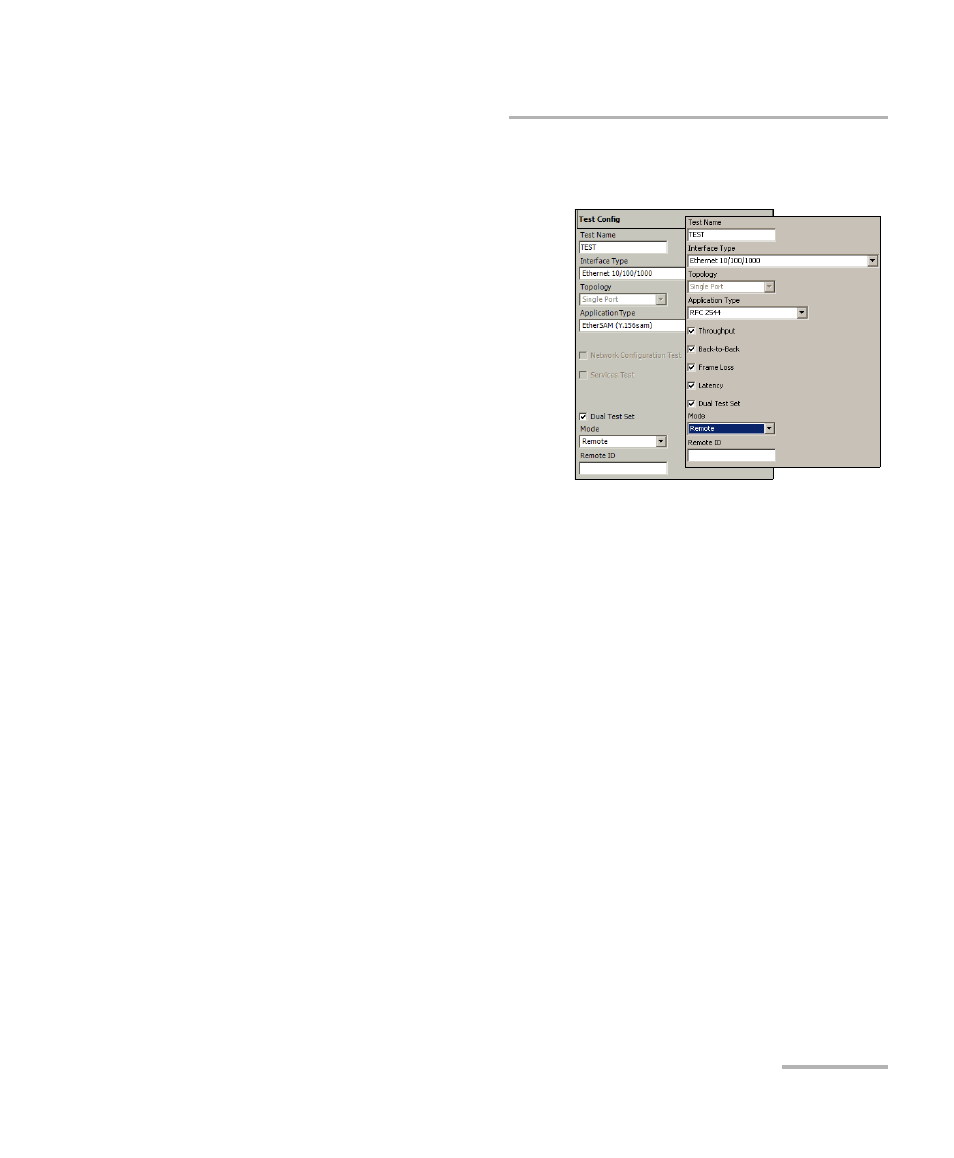

1. Test configuration:
1a. Select
Ethernet 10/100/1000 as
the Interface Type.
Interface Type is not
available with RTU-310G.
1b. Select Single Port as the
Topology. Topology is only
available with RTU-310.
1c. Select EtherSAM (Y.1564)
or RFC 2544 as the
Application Type.
1d. Select the Dual Test Set check box to enable the control of a
remote compatible module (FTB-8510B, FTB-8510G,
FTB-8525/FTB-8535, FTB-8120NGE/FTB-8130NGE, or
RTU-310/RTU-310G). For RTU-310, Dual Test Set is only available
in Single Port Topology. This setting is not selected by default.
1e. Select the Remote test Mode.
1f. Type an ID for this remote unit. Up to 16 characters are allowed.
1g. Click Next.
