EXFO RTU 310-310G IP Services Test Head User Manual
Page 32
Getting Started
20
RTU-310/310G
Connecting the Power
5. Using 14-16 AWG copper insulated wires and the supplied lug, insert
the two stripped wires into the lug and tighten the screws firmly. Make
sure to respect the polarity.
The positive supply wire lead (40-70V) must be on the right side of the
lug and the negative supply wire on the left side.

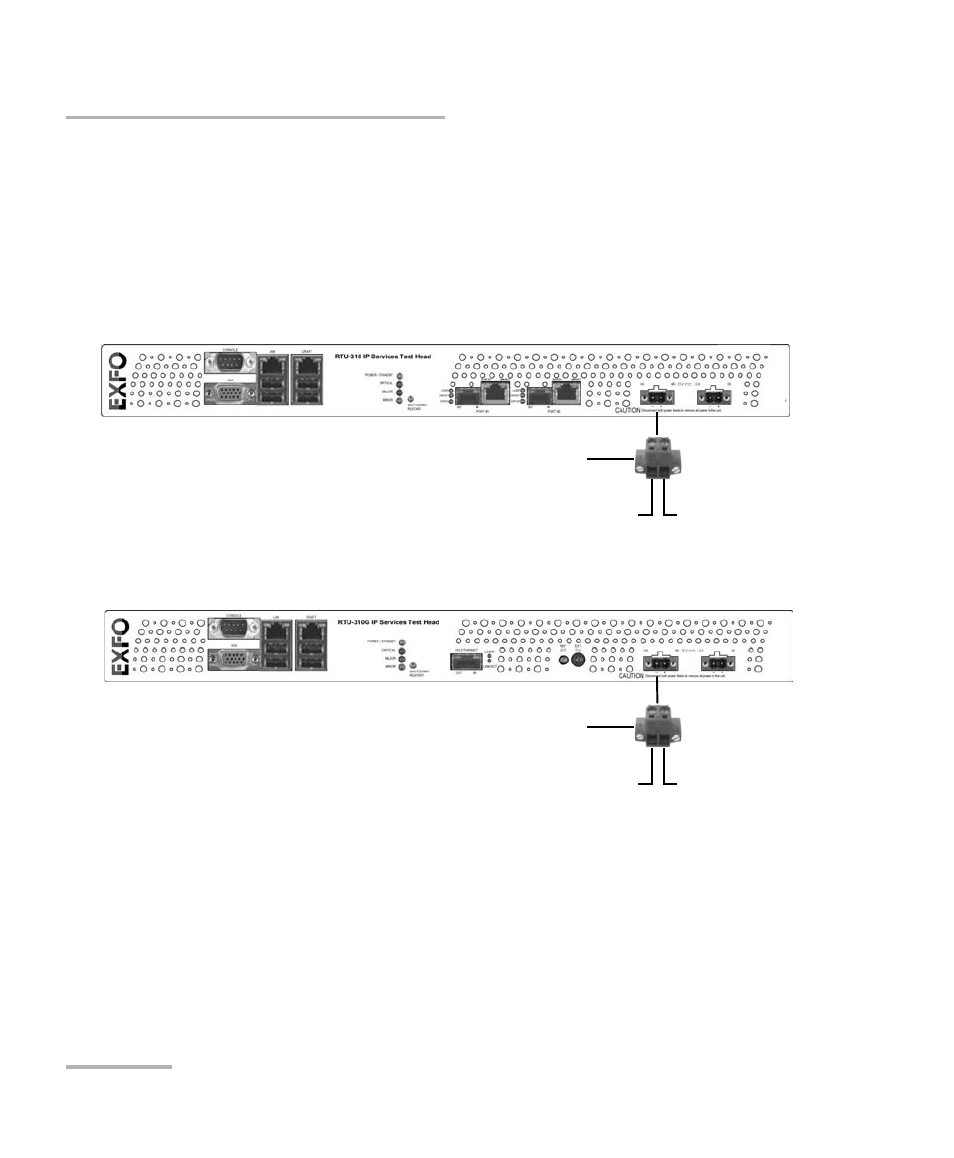

For RTU-310
For RTU-310G
6. Connect the lug to one of the two DC input lugs on the RTU-310/310G
unit and tighten the screws firmly.
Supplied lug
Positive ( + ) supply
wire lead
Negative ( - ) supply
wire lead
Supplied lug
Positive ( + ) supply
wire lead
Negative ( - ) supply
wire lead
