Creating and Starting a Test Case
Ethernet and Fibre Channel Application 107
Ethernet Frame Analyzer Test Case
5. Traffic stream configuration:
5a. Select the traffic stream to be configured, then set its parameters.
Up to 10 streams can be configured with Frame Analyzer test.
5b. For IPv4, select the Automatic IP Address check box to
dynamically obtain an IP address from a DHCP (Dynamic Host
Configuration Protocol) server or set the source and destination IP
addresses, Subnet Mask, and the Default Gateway. Refer to IPv4
Configuration on page 489 for more information.
5c. For IPv6, set the destination IP address and if required, click the
IPv6 Config button for additional IPv6 settings. Refer to IPv6
Address Configuration on page 491 for more information.
5d. If required, set the network source MAC Address. Select the
Resolve MAC Address check box or set the destination MAC
address. Refer to MAC on page 177 for more information.
5e. Select the Frame Format. Choices are Ethernet II and
802.3 SNAP. Refer to Frame Format on page 177 for more
information.

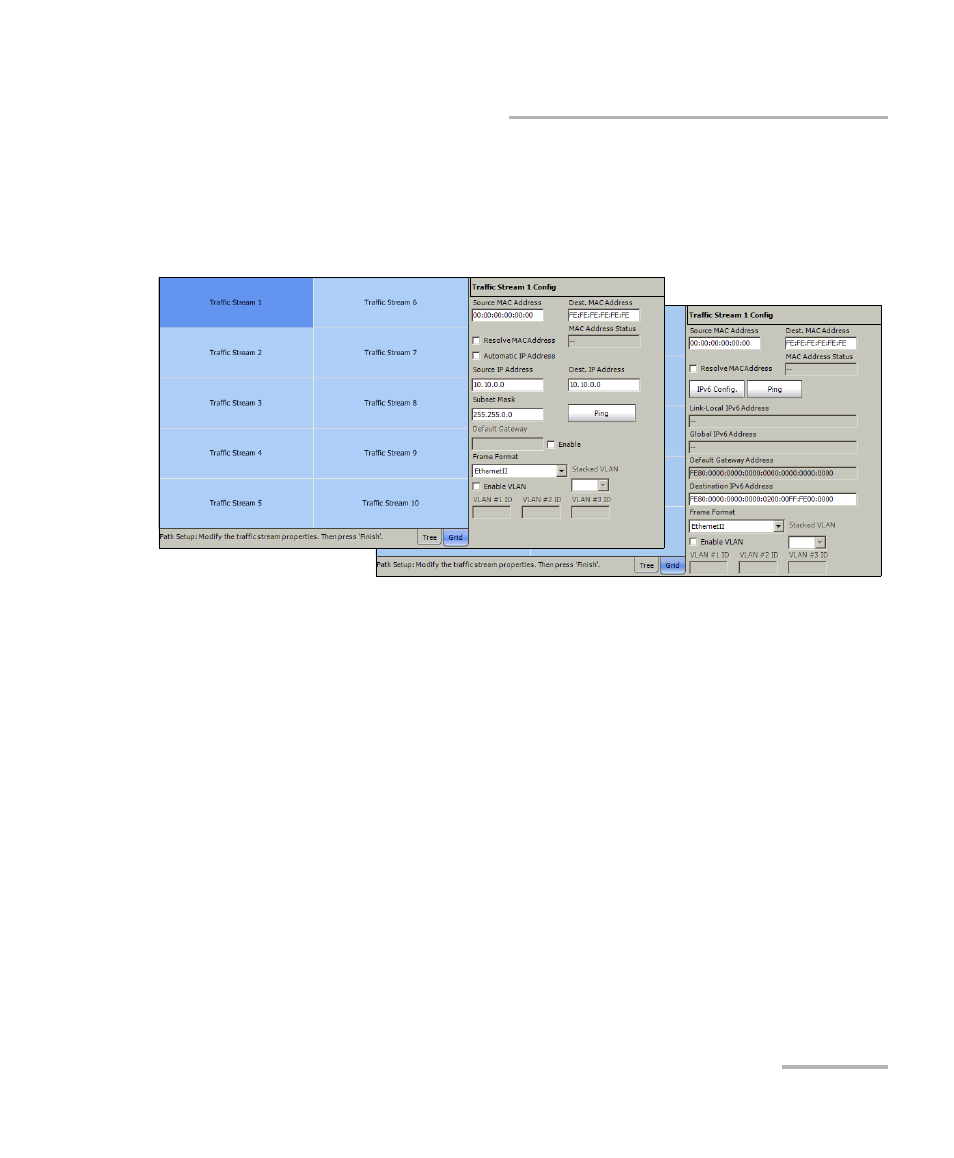

IPv4
IPv6
