EtherSAM Tabs

Ethernet and Fibre Channel Application

333

Ramp (Configuration)

Ramp (Configuration)

Note: The Ramp tab is only available when the ramp test is enabled (see Ramp

Test on page 323).

Click TEST, EtherSAM Configuration, and Ramp.

Note: The ramp template is defined globally for all services but the presence of

the CIR, CIR+EIR, and Traffic Policing steps are as per each Services
configuration. For example a stream may be configured to use CIR, another
one to use CIR+EIR, and another one to use both CIR and CIR+EIR with
Traffic Policing.

Dynamic Ramp

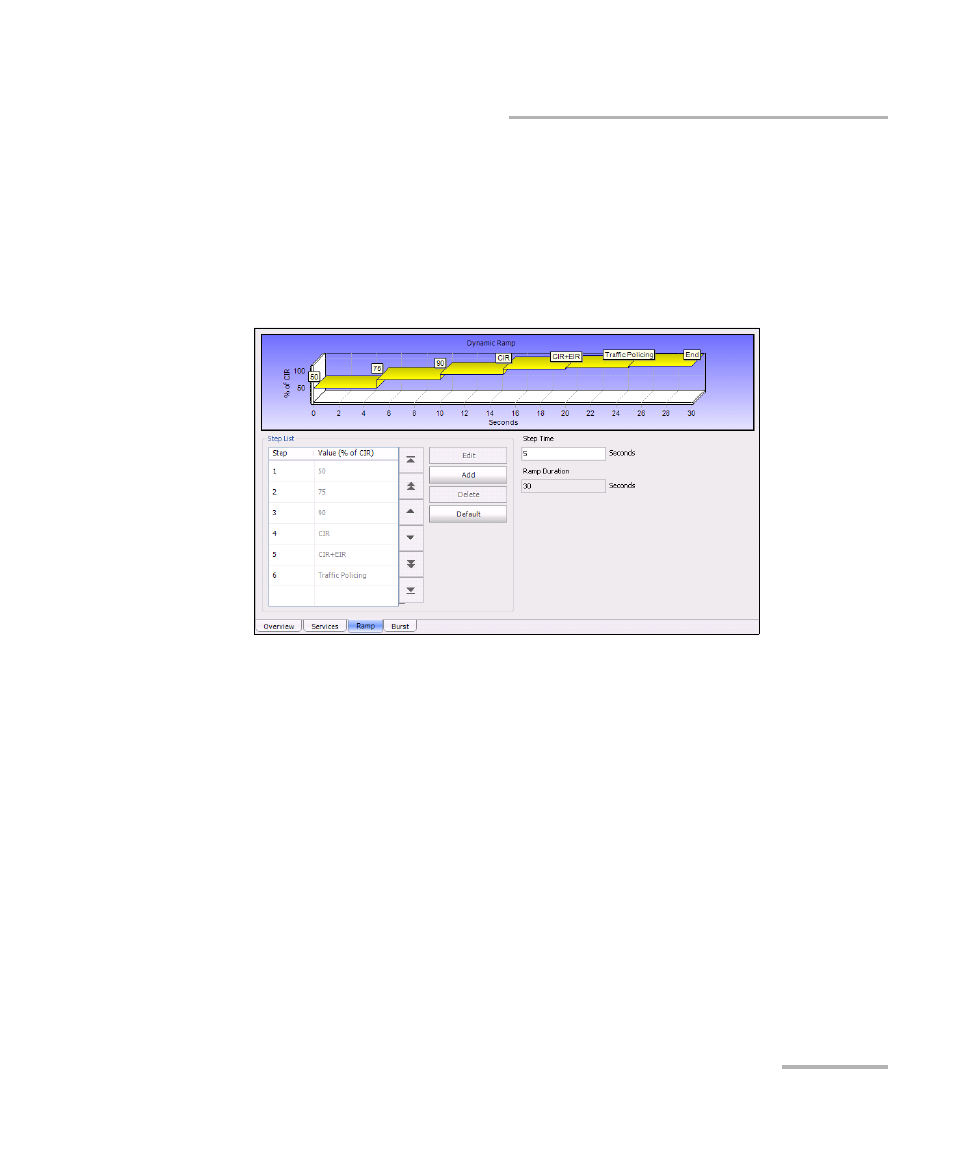

The graphic displays the percentage of each ramp step in time.
