Pop-Up Windows
498 FTB-8500 Series and FTB-8120NGE/8130NGE

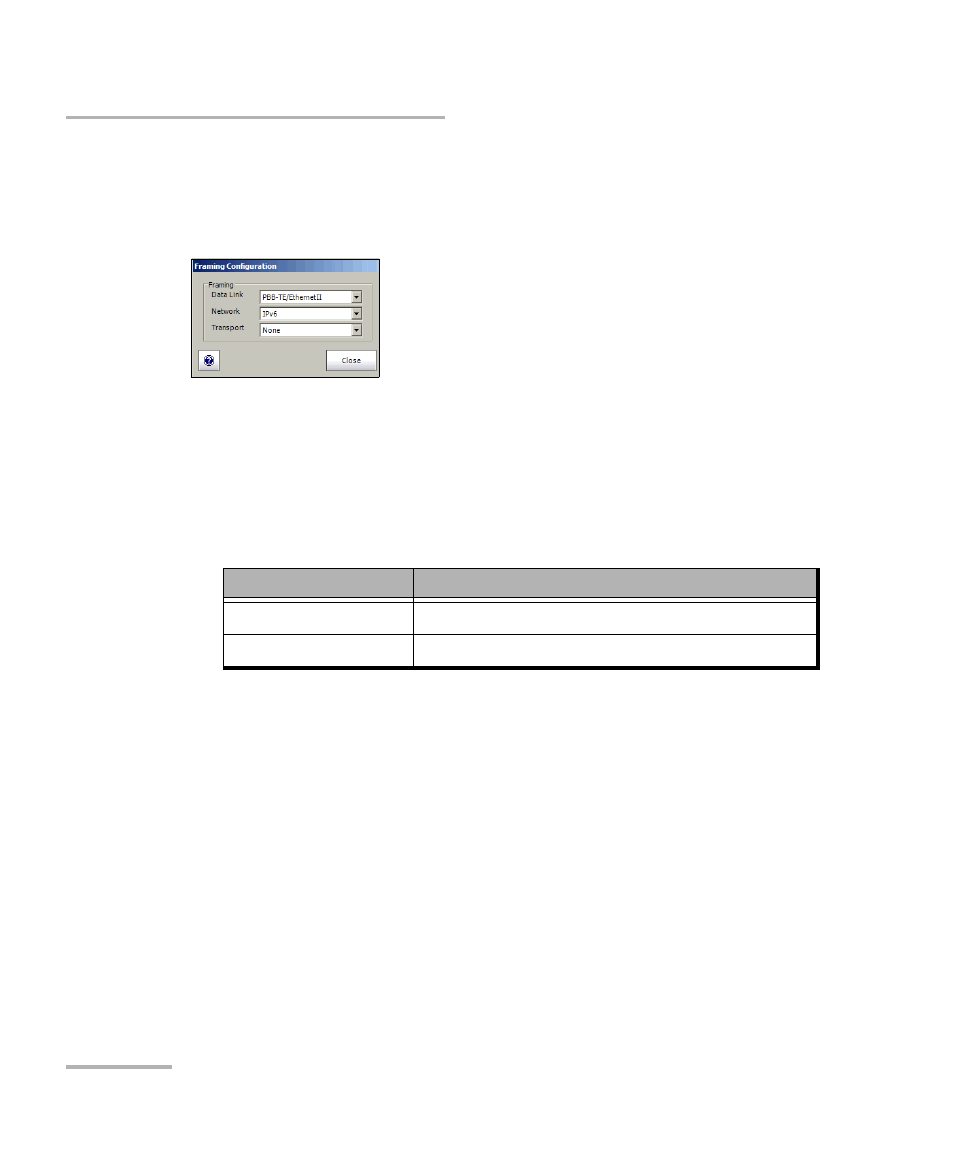

Framing Configuration
Framing Configuration
This pop-up window is only available with EtherSAM (Y.1564) test case.

Data Link: Select the data link type (layer 2). Choices are Ethernet II,
and 802.3 SNAP. PBB-TE/Ethernet II and PBB-TE/802.3 SNAP are also
available when PBB-TE is enabled.

Network: Select the network traffic type (layer 3). The default setting is
either IPv4 or IPv6 when MPLS is not enabled and either MPLS/IPv4 or
MPLS/IPv6 when MPLS is enabled.Choices are:
Note: When the stream profile is set to either voice or video, Network is
automatically set to IPv4 or IPv6.

Transport: Select the transport traffic type (layer 4). Choices are UDP,
TCP, and None. The default setting is UDP. Transport is automatically
set to None when Network is set to None. Transport is automatically
set to UDP when the stream profile is set to either voice or video.
Interface IP version Network
IPv4 IPv4, MPLS/None
a
, MPLS/IPv4
a
, and None.
a. Only available when MPLS is enabled.
IPv6 IPv6, MPLS/None
a
, MPLS/IPv6
a
, and None
