4-2 Basic Settings and Advanced Settings
4-41 IG-E
4
Setting V
a
ri
o
us
F
u
nct
ion
s
When button operations are not performed more than one minute, the power saving
indication is activated with the sensor amplifier and the sensor head.
The power saving indication is activated as soon as the setting is complete. The normal
display is restored by pressing any of the buttons.
*1 Only one segment (horizontal bar in the center) on the main
display (upper) flashes, moving in order on the display from right
to left. Also, the sub display indicator turns off.
The display status of the position monitor is set.
„ Position monitor display
Use the position monitor on the side of the sensor head
receiver to check the amount of laser light received.
The position monitor display varies depending on "1.
Measurement mode" (page 4-8) and "2. Measurement
direction" (page 4-17)

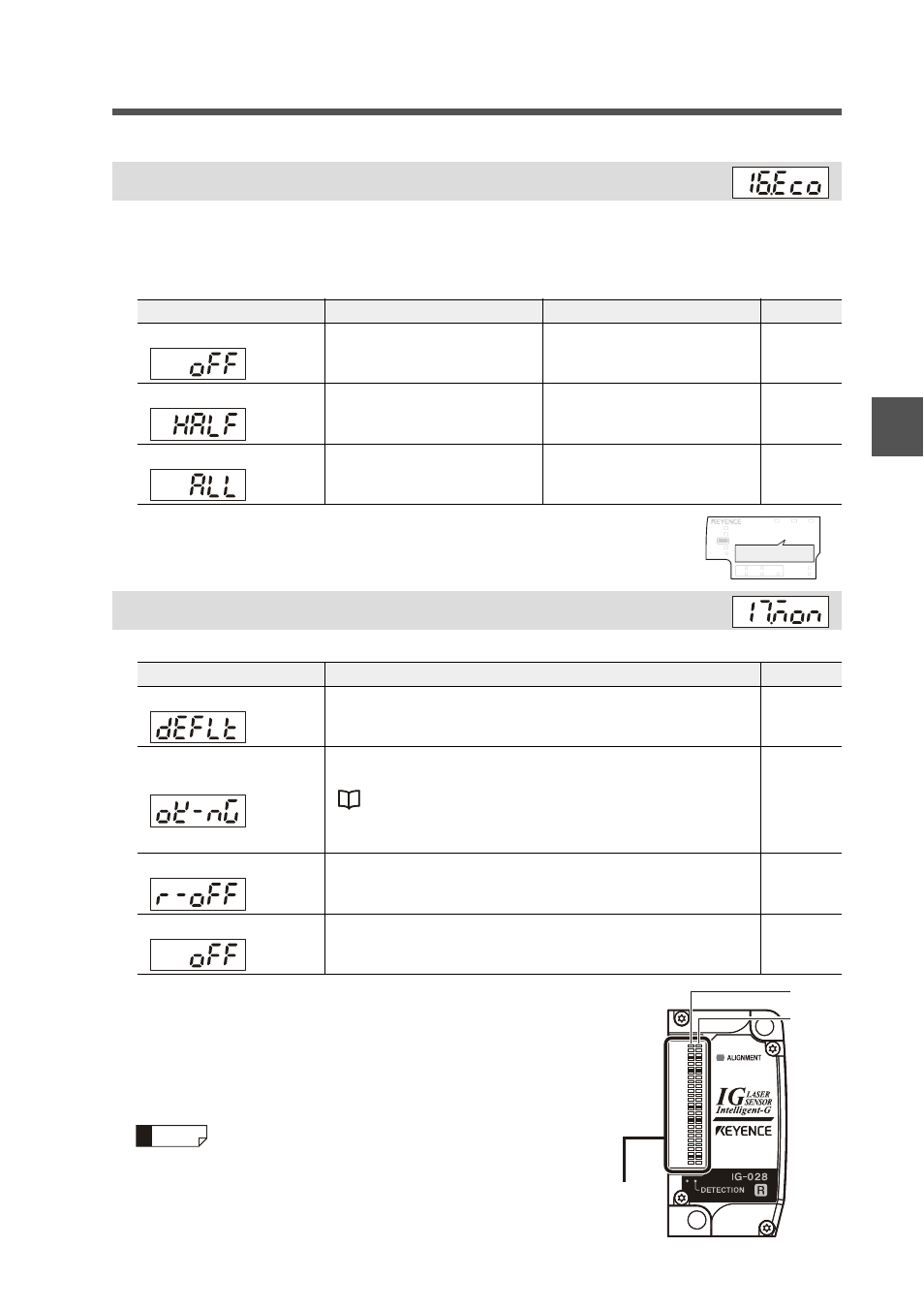

16. Power saving indication
Power save function Sensor Amplifier Sensor Head Default value
OFF
Normally ON Normally ON c
Half
Animation display
*1
Normally ON
All
All OFF
Only the Power indicator
[POWER] is ON.
LASER
BANK 0
1
2
3
HI
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
ALIGNMENT
GO
HOLD CALC CHECK
Move to the left
17. Position monitor
Position monitor Description Default value
Default setting
Green LED: Only the measured area lights ON.
Red LED: Only the light received area lights ON.
c
OK/NG display
Green LED: Lights ON for GO judgment.
Red LED: Lights ON for HIGH judgment, LOW judgment and error.
"3-6 Setting the Tolerance Setting Value" (page 3-11)
If GO: red is set for "18. Display Color" (page 4-43), the
lighting method for green LED and red LED is reversed.
Red : Off
Green LED: Only the measured part lights ON
Red LED: Always OFF
Off
Green LED: Always OFF
Red LED: Always OFF
Reference When a transparent object is measured, the
red LED may flicker. However, if the green
LED lights on in the stable condition, this is
not a problem. If desired, set "Red : Off".
Red
Green
Position
monitor
