KEYENCE IG Series User Manual
Page 35
2-2 Connecting and Mounting the Sensor Head
2-13
IG-E
2
In
s
ta
lla
tion
a
nd C
onnection
3

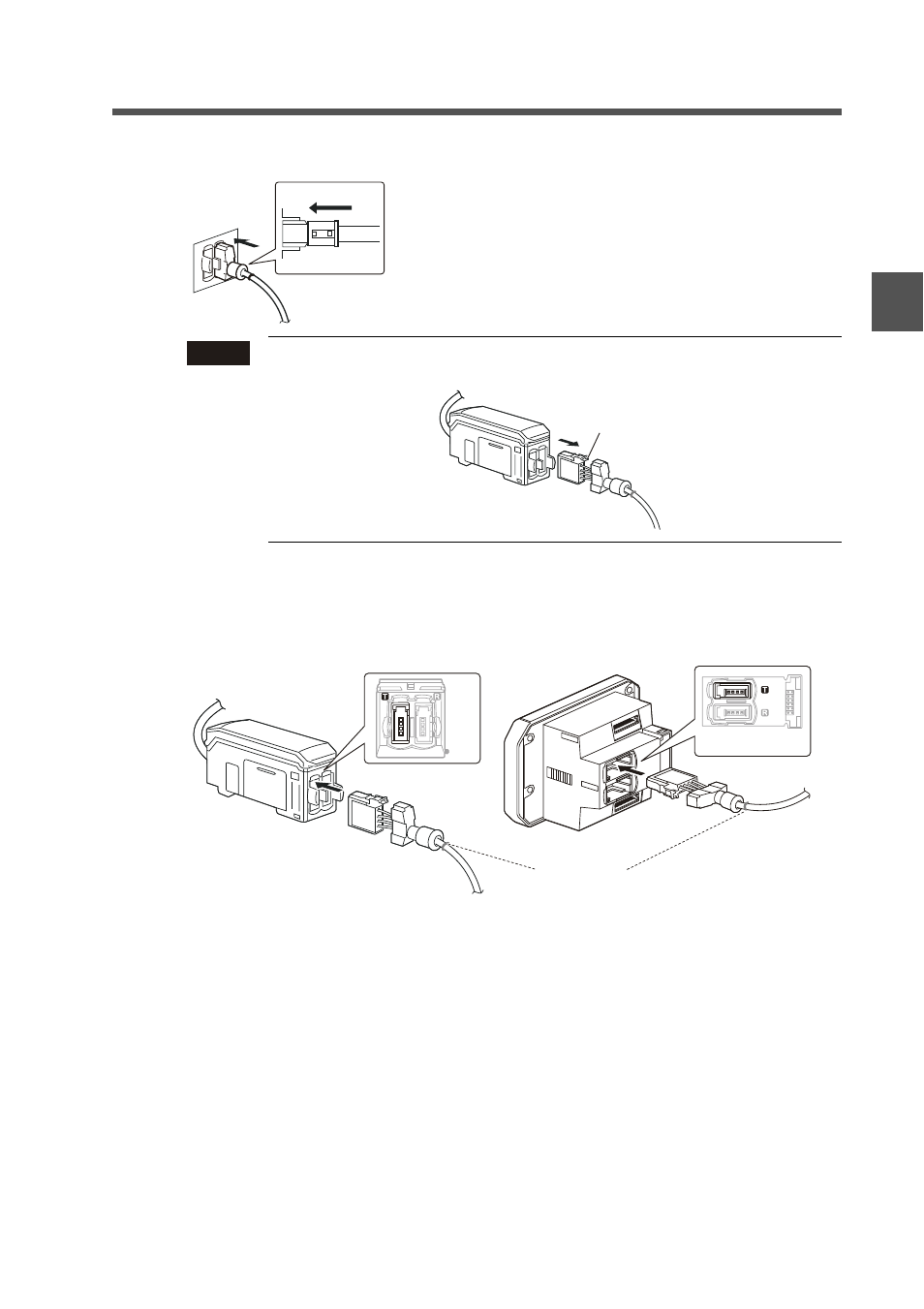

Attach the lock cover to the connector to fix the cable.
4
Connect the sensor head connection cable on the transmitter side to the
[T] connector of amplifier.
The connection procedure is the same as the one for the receiver.
Note
When removing the sensor head connection cable, push the lock
lever and pull it out.
DIN rail mount type
(IG-1000/IG-1050)
Panel mount type
(IG-1500/IG-1550)
Locked
Lock cover
Lock lever
Top: T side
Red O-ring
Left: T side
