2-2 Connecting and Mounting the Sensor Head
2-14
2
In
s
ta
lla
tion
a
nd C
onnection
IG-E

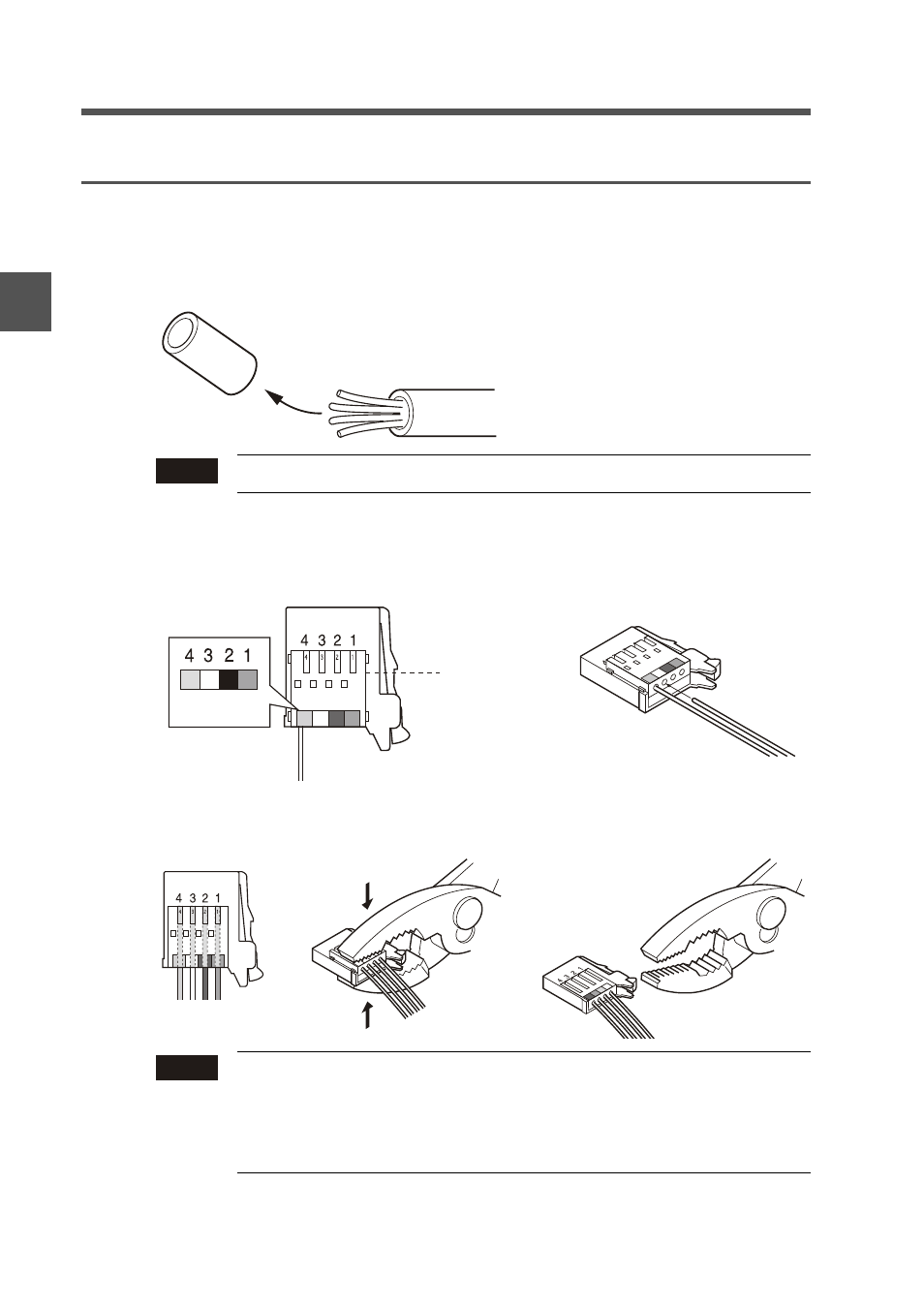

Attaching the sensor head cable connector (OP-84338)
Cut the sensor head connection cable to the required length and attach the new connector
to use the sensor. The attaching method is the same for both transmitter and receiver.
1
Cut the cable to the required length and strip approx. 15 mm of insulation
from the end of the cable.
2
Insert each cable to the end matching to the same color marks on the
connector.
The cables are inserted to the end and tentatively fixed.
3
Confirm that all cables are inserted to the specified position and crimp
them tight parallel using a plier or similar tool.
Note
Do not strip the core wire insulation.
Note If the connector is changed, make sure to connect it to the
amplifier and confirm the normal operation.
If it does not operate normally, crimp the connector again with a
plier.
Once the connector is crimped, it cannot be reused.
Blue
White
Black
Brown
Insert further
than here.
