KEYENCE IG Series - Manual (Page 62)

4-4 IG-E
4
Setting V
a
ri
o
us
F
u
nct
ion
s
4-2
Basic Settings and Advanced Settings
The following items can be set.

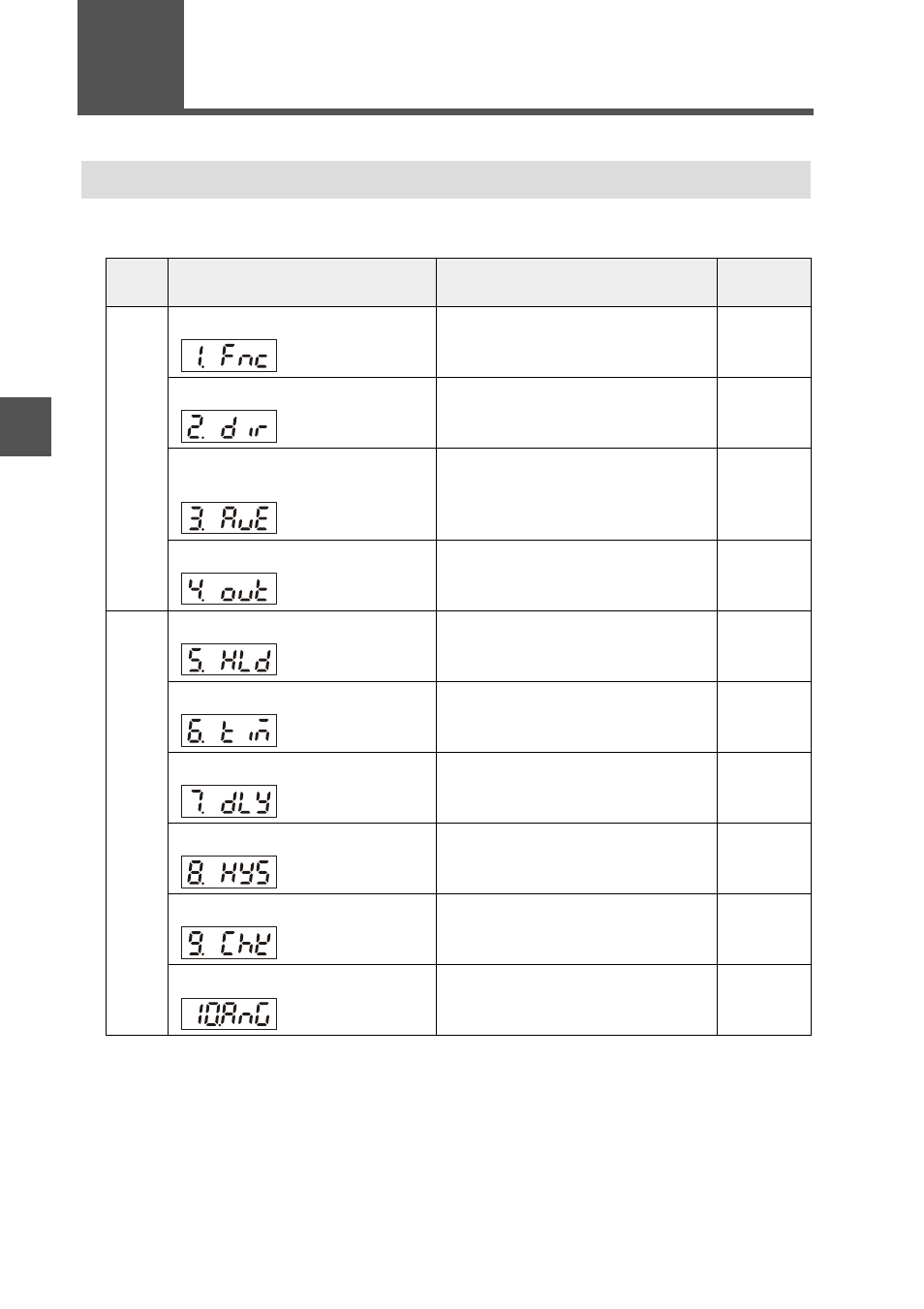

List of Setting Items
Type Setting items Description
Reference
page
1. Measurement mode Select a suitable measurement
mode according to the shape of
object and applications.
4-8
2. Measurement direction Select either the top side or the
bottom side of sensor head as a
starting point of measurement.
4-17
3. Average number of times
(Response time)
By selecting the average number
of times, the response time of
judgment output is determined.
4-17
4. Output mode According to the judgment value
(P.V.), select the output mode (NO/
NC) of judgment output ON/OFF.
4-19
5. Hold function
The holding method is set for the
judgment value (P.V.).
4-20
6. Timing input
Set the using method of the timing
input used for the hold function.
4-27
7. Delay timer
Set the delay timer for the
judgment output.
4-27
8. Hysteresis
The hysteresis for the tolerance
setting value is set.
4-30
9. Edge check function You can check if the measurement
is correct by checking the number
of edges of object.
4-31
10. Analog output scaling
The analog output scaling for the
judgment value (P.V.) is set.
4-32
B
as
ic
s
e
tti
ng
Ad
v
a
nce
d
s
ett
in
g
