3-8 Bank Function (Registering Multiple Tolerance Setting Values)
3-19 IG-E
3
B
as
ic Oper
a
tion
s
The following two methods can be used to switch the bank.
• Press the button on the amplifier.
• Use the external inputs (Bank A input, Bank B input)*
* When the Bank A input and Bank B input are set for the external inputs, the bank can be
switched using the external inputs.
" 11. External input" (page 4-33)

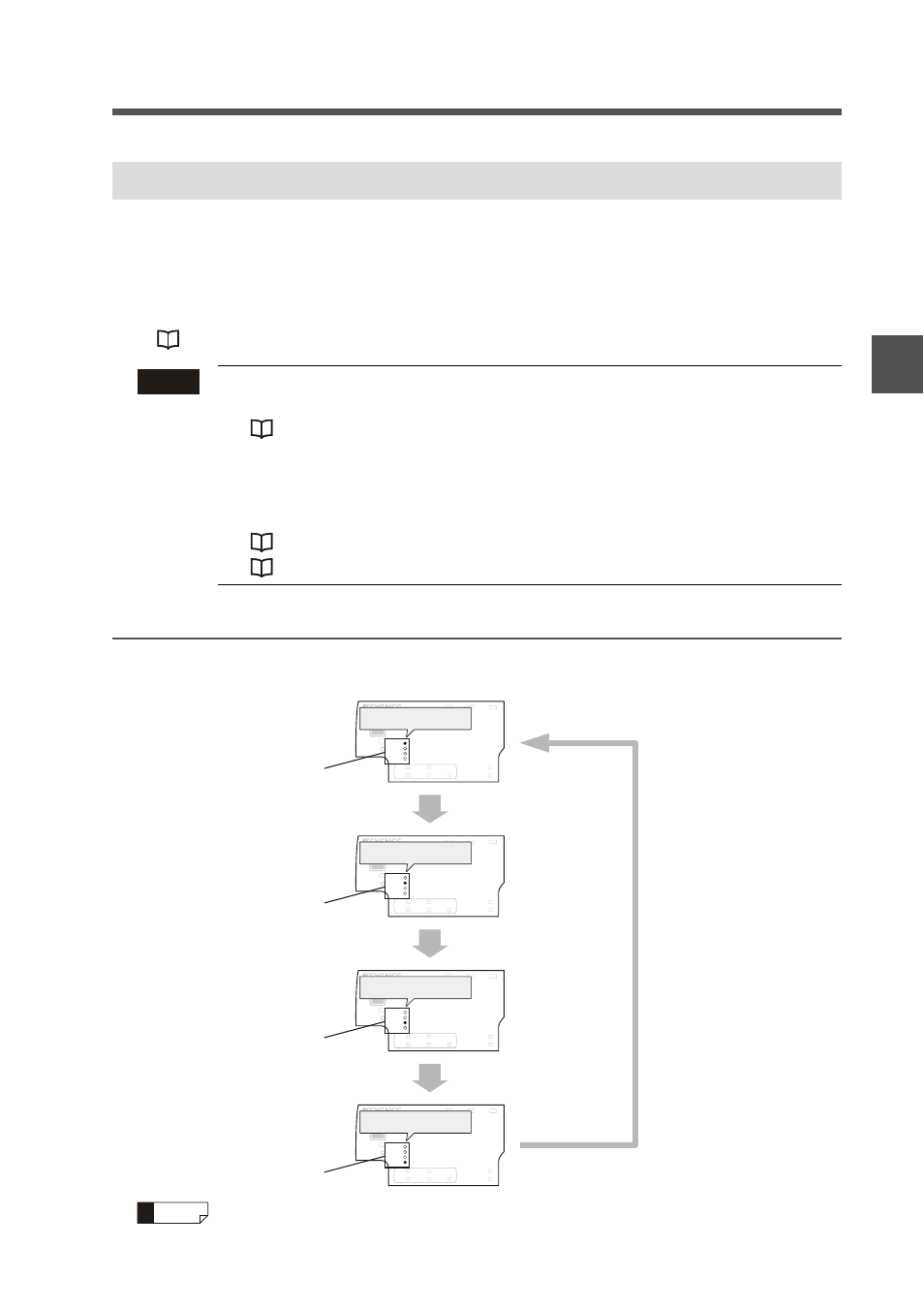

Switching the bank by button operation
While pressing the [MODE] button on the main screen, press the S / T button.
The bank is switched and the bank indicator [BANK 0 to 3] lights up according to the selected bank.
How to Switch the Bank
Note • When the bank is switched, the internal measurement value (R.V.) shows
[ ] until the average number of times (response time) elapses.
"3. Average number of times (Response time)" (page 4-17)
• When the measurement mode is "Pin interval judgment mode" or "Pin
diameter judgment mode", if the bank is switched and the setting of
number of pins is changed, the judgment value (P.V.) shows
[
] and is held even if the judgment value (P.V.) is held.
"1. Measurement mode" (page 4-8)
"5. Hold function" (page 4-20)
Reference When S is pressed while pressing down the [MODE] button, the screen moves
to the opposite direction.
LASER
BANK 0
1
2
3
HI
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
ALIGNMENT
GO
HOLD CALC CHECK
Bank indicator
LASER
BANK 0
1
2
3
HI
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
ALIGNMENT
GO
HOLD CALC CHECK
Bank indicator
LASER
BANK 0
1
2
3
HI
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
ALIGNMENT
GO
HOLD CALC CHECK
Bank indicator
LASER
BANK 0
1
2
3
HI
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
ALIGNMENT
GO
HOLD CALC CHECK
Bank indicator
While pressing the [MODE]
button, press
T.
While pressing the [MODE]
button, press
T.
While pressing the [MODE]
button, press
T.
While pressing the [MODE]
button, press
T.
BANK 0 lights up.
BANK 1 lights up.
BANK 2 lights up.
BANK 3 lights up.
