KEYENCE IG Series User Manual
Page 32
2-2 Connecting and Mounting the Sensor Head
2-10
2
In
s
ta
lla
tion
a
nd C
onnection
IG-E

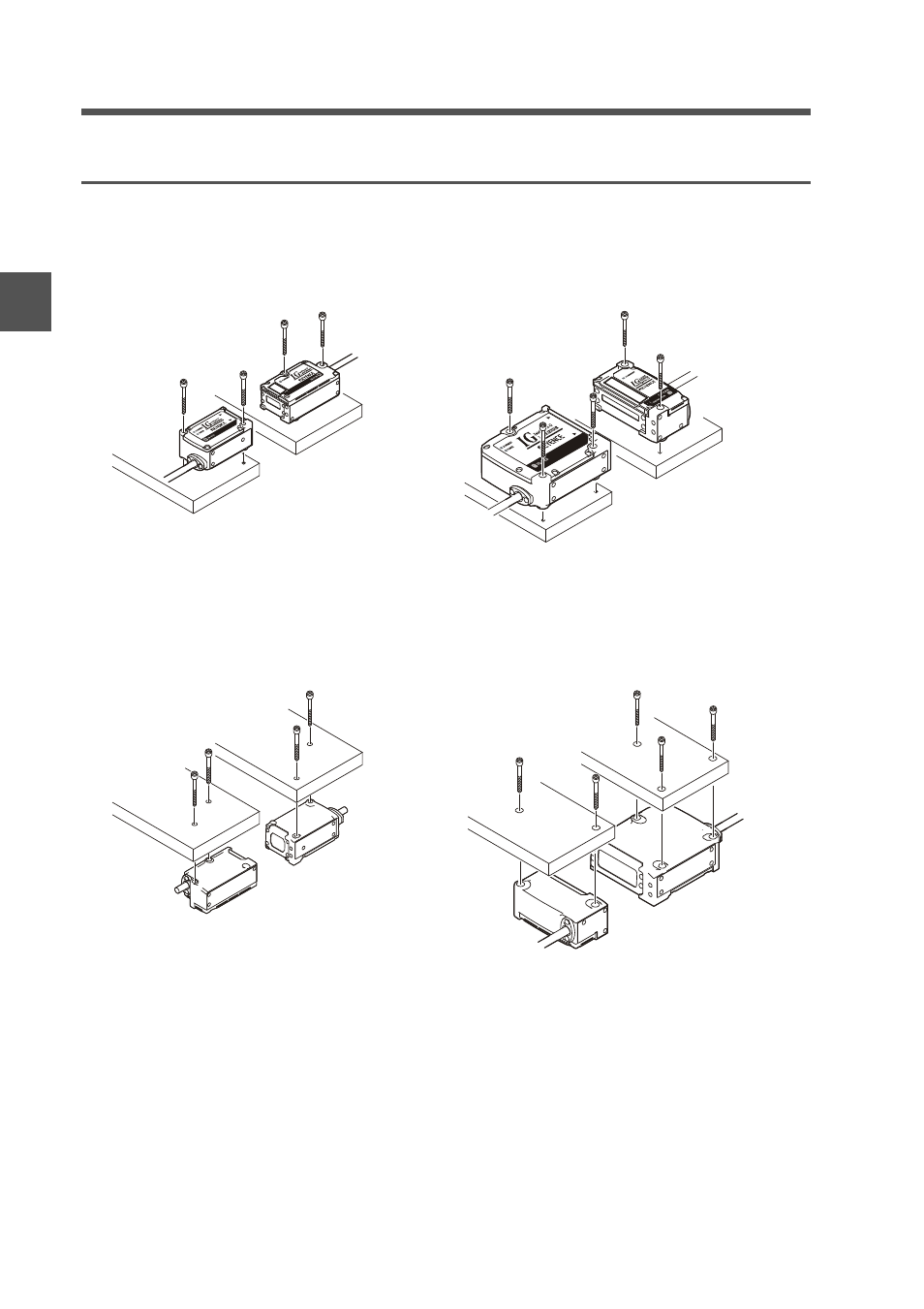

Mounting from the side
Mounting from the sensor side
Fix using the commercially available screws (IG-010: M3, IG-028: M4).
Tightening torque: 1.6 N·m or less
Mounting from the jig side
Fix using the commercially available screws (IG-010: M4, IG-028: M5, length: board
thickness + 5 mm or less).
Tightening torque: 1.6 N·m or less
IG-010
IG-028
IG-010
IG-028
