4-2 Basic Settings and Advanced Settings
4-37 IG-E
4
Setting V
a
ri
o
us
F
u
nct
ion
s
Bank A input/Bank B input
By combining ON/OFF setting of bank A input and bank B input, you can switch the banks.
"3-8 Bank Function (Registering Multiple Tolerance Setting Values)" (page 3-18)

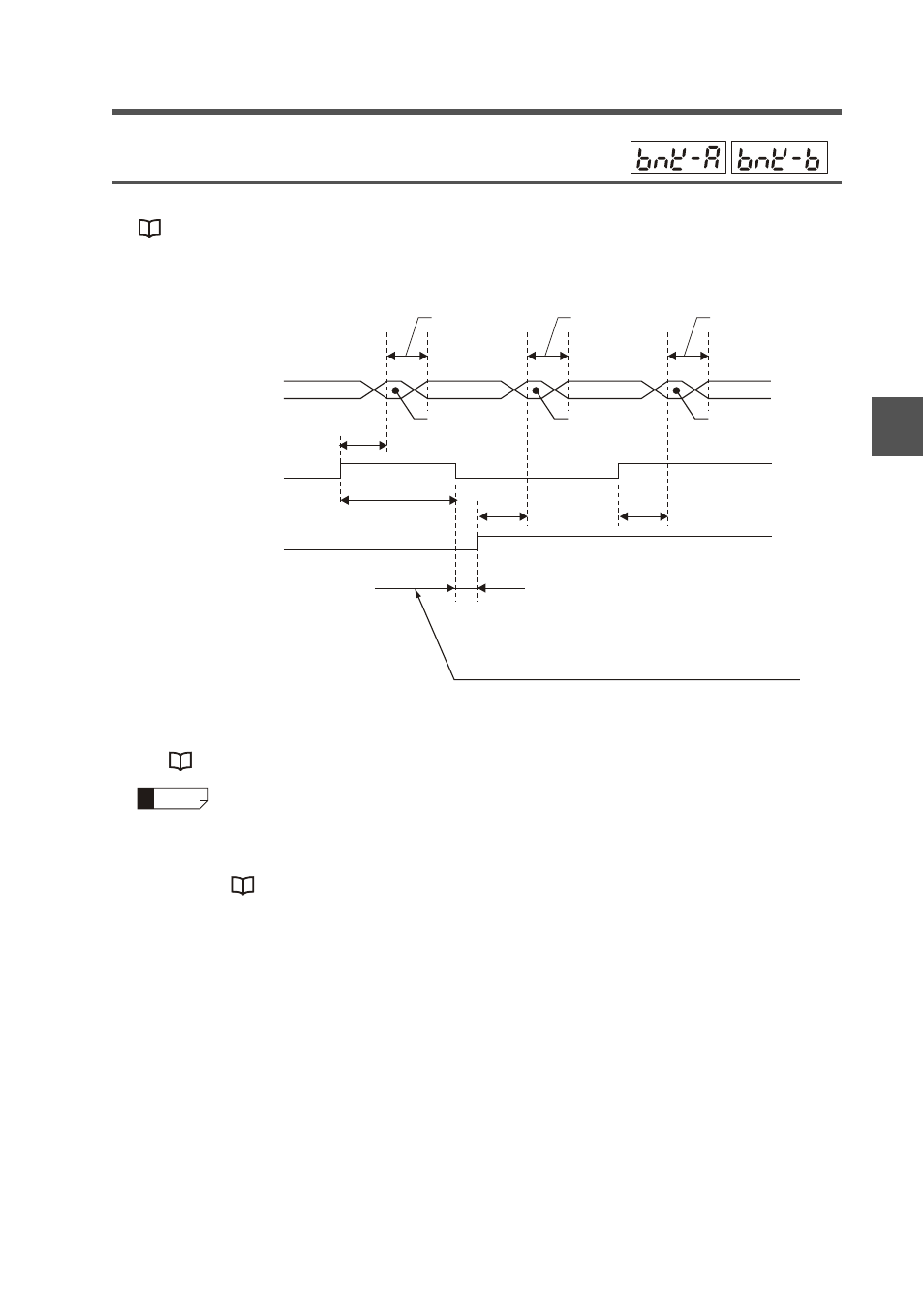

„ Timing chart
*1 When the bank is switched, the internal measurement value (R.V.) shows [ ] until
the average number of times (response time) elapses.
"3. Average number of times (Response time)" (page 4-17)
„ Minimum Input Time
ON time: 20 ms
OFF time: 20 ms
Reference When the judgment value (P.V.) is held using the hold function, the judgment
value (P.V.) remains held even if ON/OFF for bank A input or bank B input is
switched. However, the judgment output changes according to the setting value
set for the new bank.
"5. Hold function" (page 4-20)
Judgment value
(P.V.) judgment
output
Within the
response time
[
]* 1
Within the
response time Within the
response time
Max. 8 ms
Max. 20 ms
Max. 20 ms
Min. 20 ms
ON
OFF
Bank A input
ON
OFF
Bank B input
Max. 20 ms
Bank 1 Bank 2 Bank 3 Bank 0
[
]* 1 [
]* 1
In this example, after 8 ms have passed, Bank A
and Bank B are judged as OFF and operation at
Bank 0 may be performed during a certain period.
