4-2 Basic Settings and Advanced Settings
4-30
4
Setting V
a
ri
o
us
F
u
nct
ion
s
IG-E
The hysteresis for the tolerance setting value is set.
If the judgment value (P.V.) fluctuates due to the vibration of the object, etc. and the
judgment output repeats ON/OFF, increasing the hysteresis value stabilizes ON/OFF.
"3-6 Setting the Tolerance Setting Value" (page 3-11)

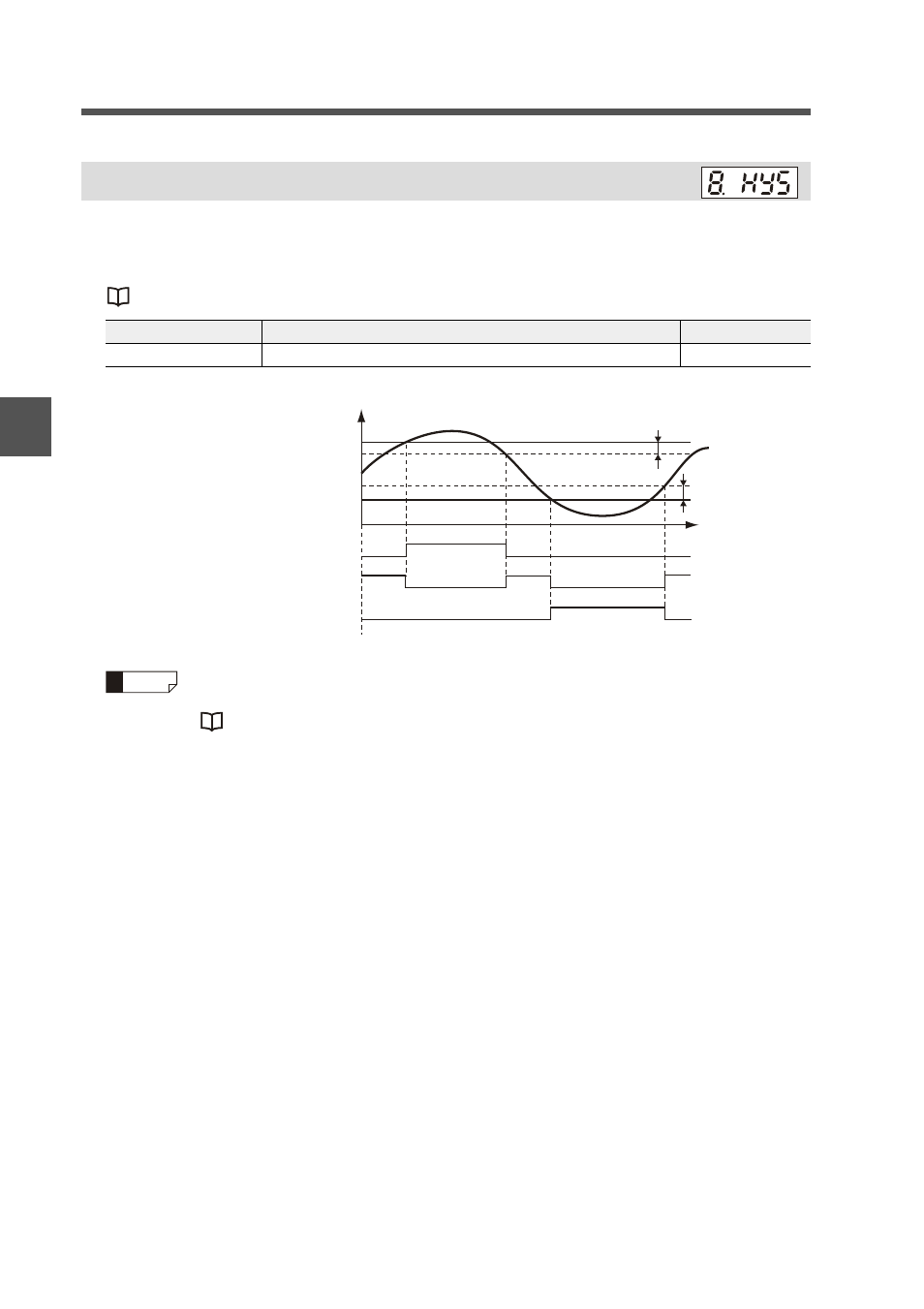

8. Hysteresis
Item Setting range Default value
Hysteresis 0.000 to 99.999 0.020
Reference The above is the timing chart when the output mode of judgment output is
Normally Open (default value). ON/OFF is reversed for Normally Close.
"4. Output mode" (page 4-19)
Time
Hysteresis
Hysteresis
Judgment value (P.V.)
HIGH side setting value
LOW side setting value
ON
OFF
ON
OFF
ON
OFF
HIGH judgment output
GO judgment output
LOW judgment output
