6-20 IG-E
6
IG Config
u
ra
tion Softw
a
re (
IG-
H1)
6-5

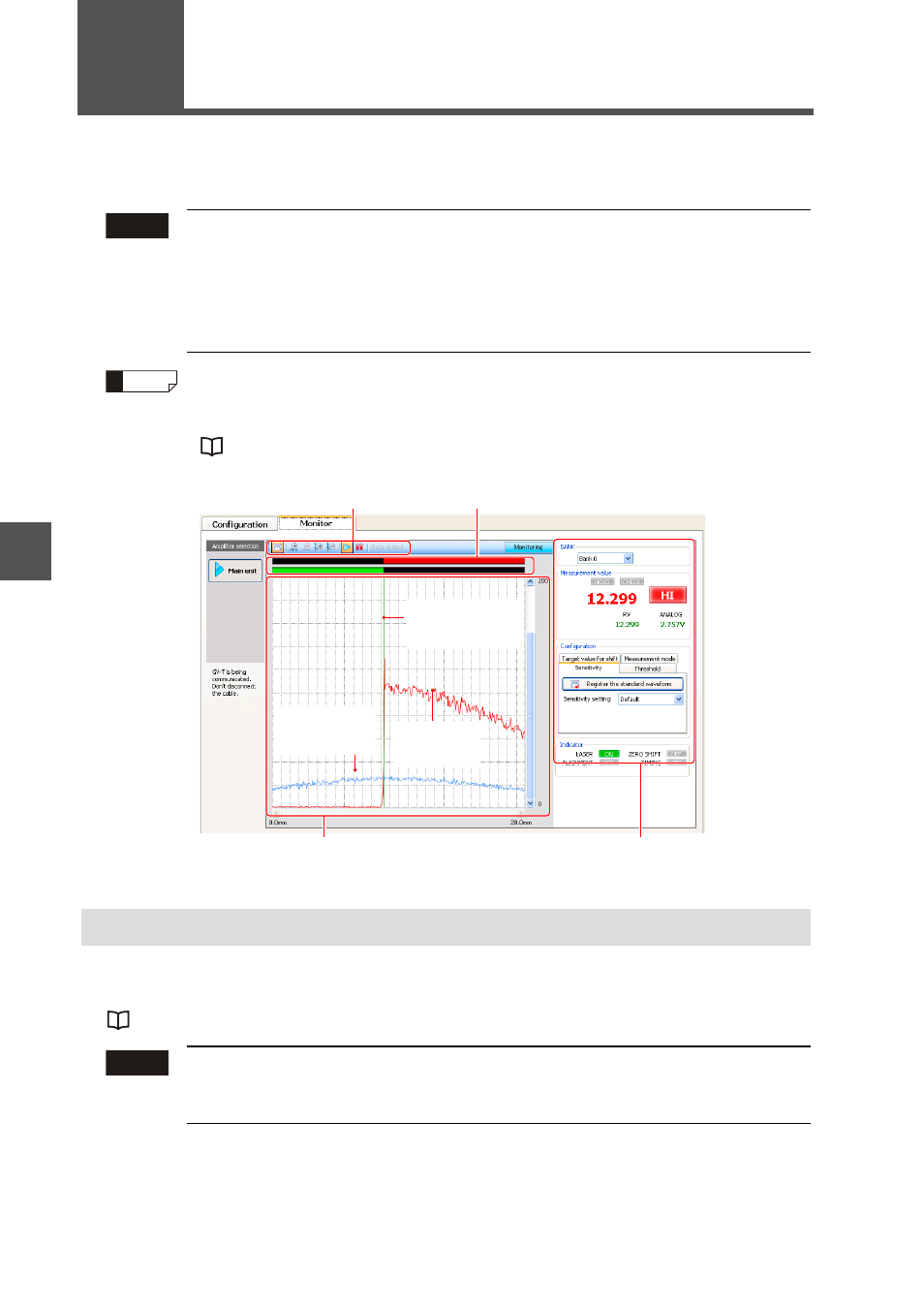

Monitor tab
When the monitor tab is selected, the measured status of the IG Series is displayed in real
time.
This displays the similar contents displayed on the position monitor equipped with the
sensor head receiver.
"17. Position monitor" (page 4-41)
Note • Before selecting the monitor tab, check if the PC (IG Configurator)
and the IG Series main unit are properly connected.
• If the configuration data opened with the IG Configurator and the
configuration data stored on the IG Series differ, monitoring is not
possible. Read the configuration data from the IG Series or transfer
the IG Configurator’s configuration data.
Reference If the baud rate for communication setting is set to faster, the updating speed of
the measured state becomes faster and monitoring can be performed
smoothly.
"Starting and Exiting the IG Configurator" (page 6-7)
Function display Waveform display
Position monitor display Monitor tool bar
Light-receiving
waveform
Binarization
waveform
Edge used for
measurement.
Position Monitor Display
Note This offers a more detailed display than on the sensor head. Therefore,
the operation of the sensor head receiver may not agree with the
position monitor display.
