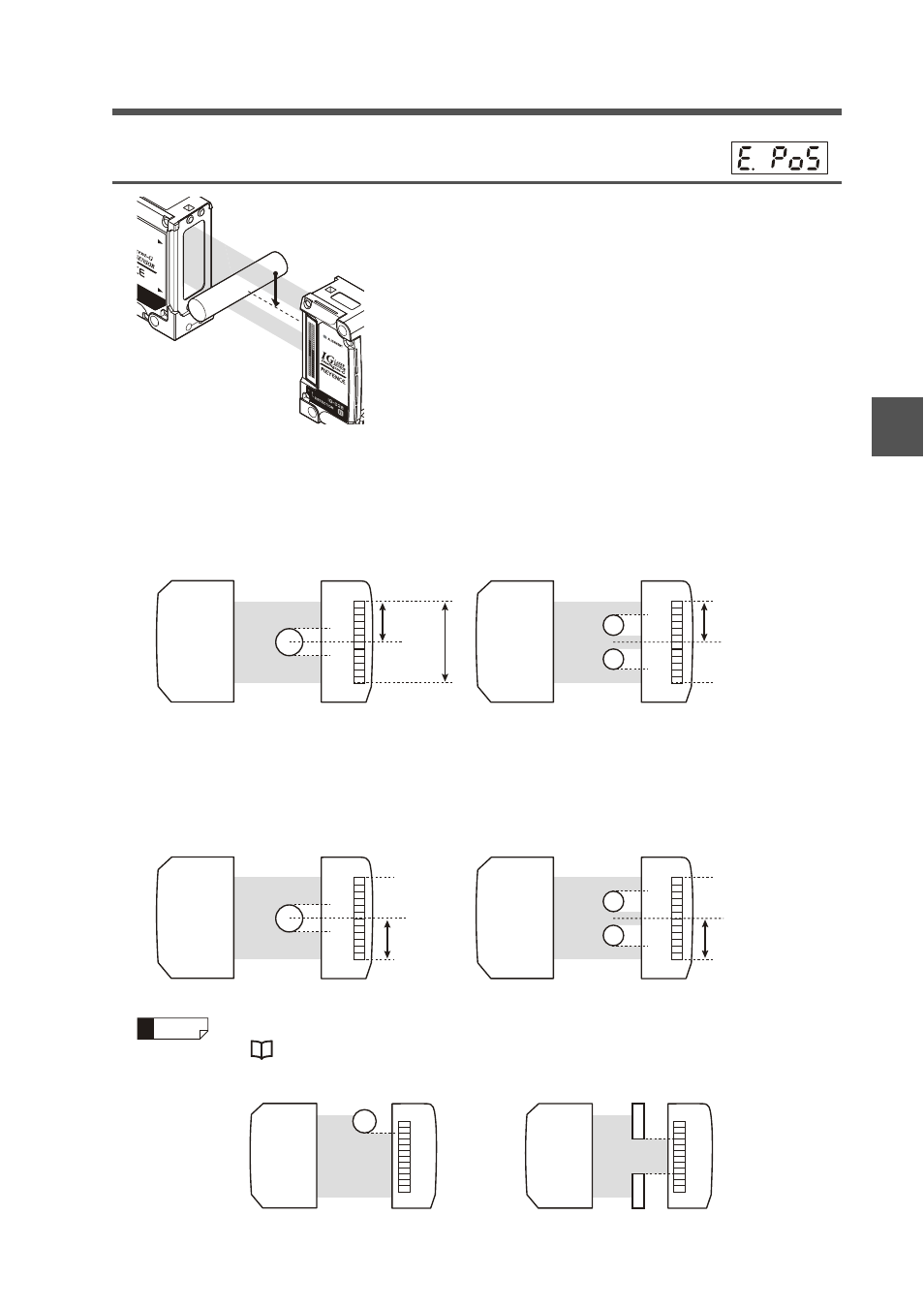

Pin position measurement mode
The internal measurement value (R.V.) is determined by
measuring the distance from the edge of the
measurement range to the center of a target.
„ Details
z "2. Measurement direction" (page 4-17) When "Top" is set
The position of the top most light to dark transition as seen by the receiver is defined as point B. The position
of the bottom most dark to light transition as seen by the receiver is defined as point C. The distance form the
top of the measuring range to center point of B and C is the internal measurement value (R.V.).
z "2. Measurement direction" (page 4-17) When "Bottom" is set
The position of the top most light to dark transition as seen by the receiver is defined as point C. The position
of the bottom most dark to light transition as seen by the receiver is defined as point B. The distance form the
bottom of the measuring range to center point of B and C is the internal measurement value (R.V.).
R.V.
Measurement
range
Top
Bottom
Top
Bottom
A A
B
C
R.V.
B
C
Reference • If there is no object present , the internal measurement value (R.V.) becomes [ ].
"2 Display Screen and Output" (page A-9)
• If the object is in the following status, the internal measurement value (R.V.) becomes [ ].
R.V.
Top
Bottom
Top
Bottom
A A
C
B
R.V.
C
B
