For connecting the DL-RS1A to a PC, refer to "RS-232C Communication Unit DL-RS1A
User’s Manual".
The direction of RS-232C (serial port) on a PC varies depending on each PC. For
connection, refer to the operation manual of your PC.
Connection image of DL-RS1A
* Recommended connection cable
KPEV-SP (1P) wire 2 cores twist shield attached (twisted wire)
Nominal cross-section area 0.16 mm
2
(AWG25) or more
Wire connection
Additionally install the DL-RS1A behind the expansion unit.
For connecting the sensor amplifier with the DL-RS1A, refer to "RS-232C Communication
Unit DL-RS1A User’s Manual".

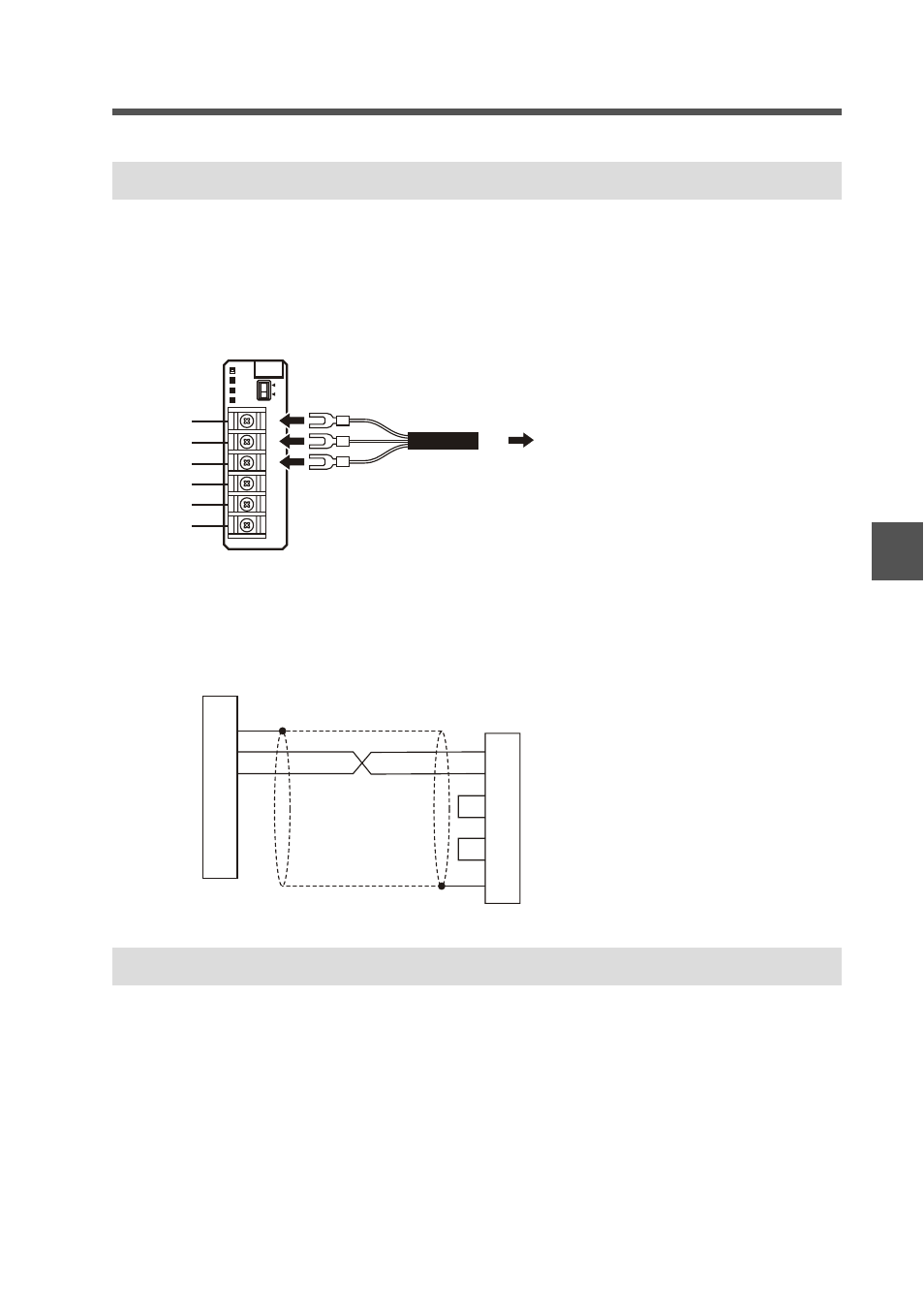

Connecting with a Computer
Communication cable
Computer
1 SG
RD
SD
SG
SG
DRQ
RD
SD
ALM
RW
R
POWER
2
3
4
5
6
Computer DL-RS1A
Shield
SG
RD
SD
SG
SG
DRQ
1
2
3
4
5
6
RD
SD
DR
ER
RS
CS
SG
Connecting the Sensor Amplifier and the DL-RS1A
