Part Names and Functions
Menu bar
This bar indicates the menu for operating each function.
For the menu details, refer to
"6-6 Menu Bar" (page 6-25) .
Tool bar
This bar contains frequently used functions.

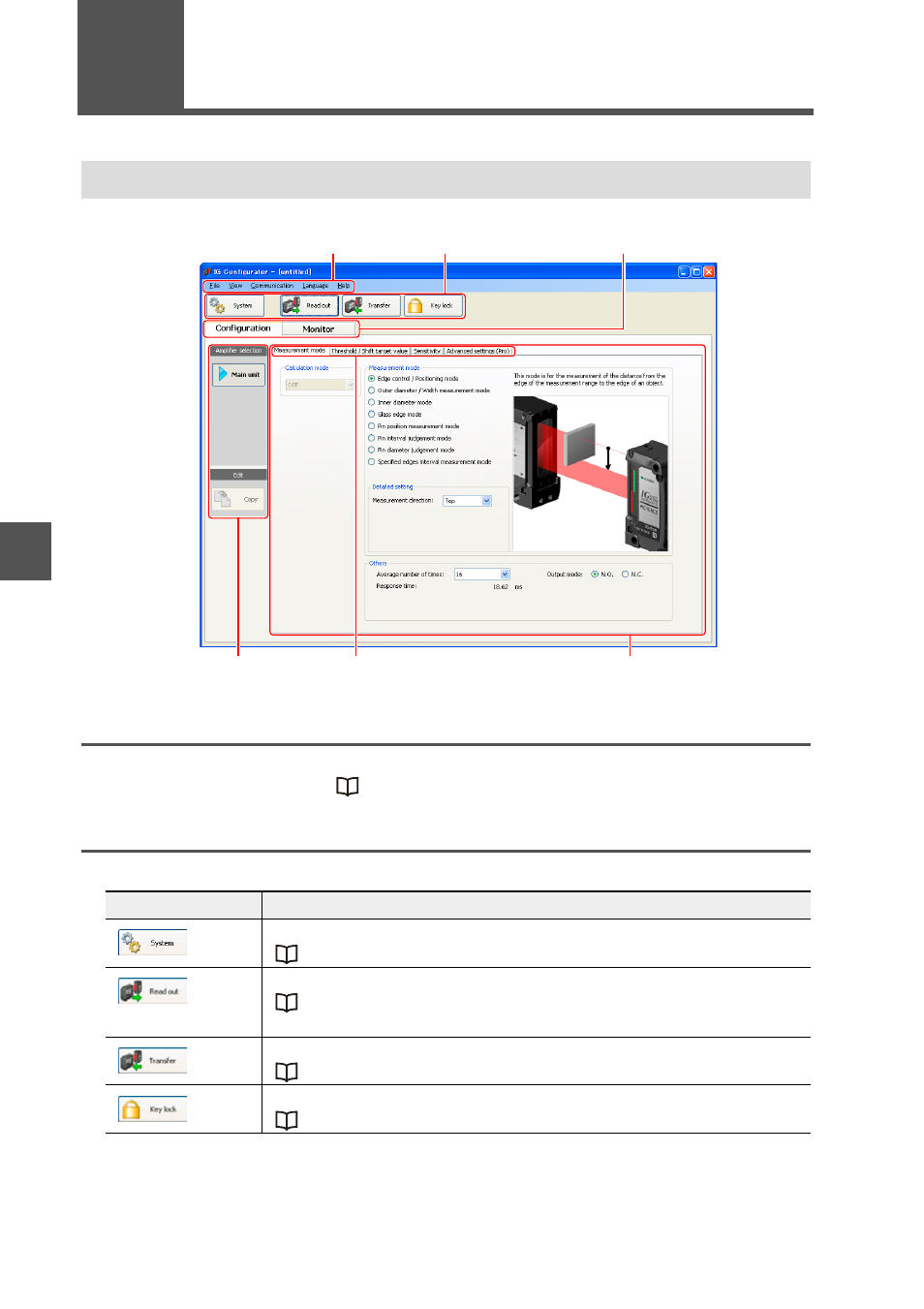

Main Window
Main panel switching tab Main panel Sub panel
Tool bar Configuration/Monitor switching tab Menu bar
Item Description
Displays the [System configuration] dialog box.
"When [Create a new configuration file.] is selected" (page 6-9)
Reads the configuration data from the IG series and displays.
"When [Read out the configuration data from IG.] is selected"
(page 6-9)
Transfers the configuration data to the IG Series.
"Transfer of Configuration data" (page 6-19)
Sets the key lock function.
"Key Lock Button" (page 6-24)
