KEYENCE IG Series - Manual (Page 34)

2-2 Connecting and Mounting the Sensor Head
2-12
2
In
s
ta
lla
tion
a
nd C
onnection
IG-E

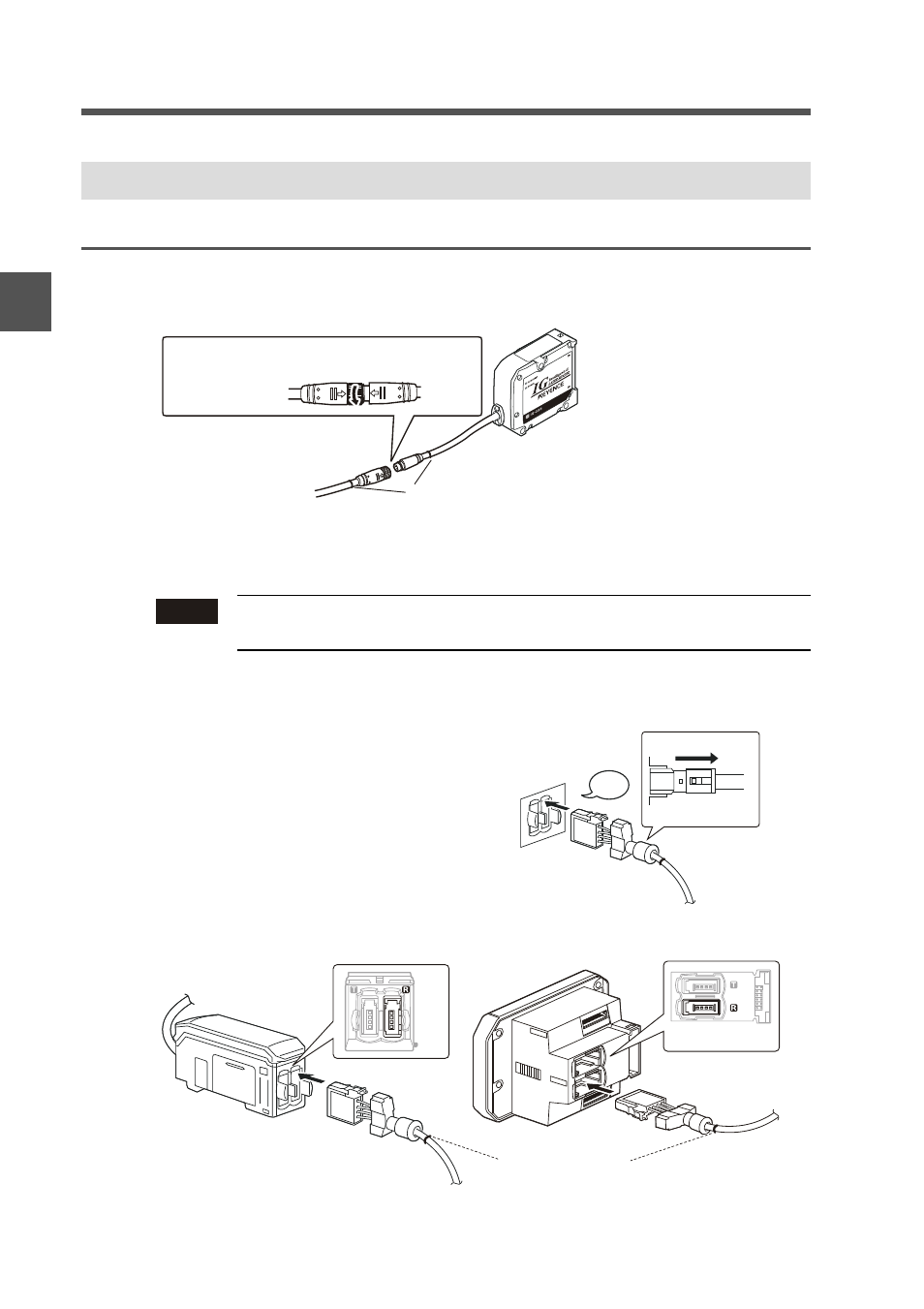

Connecting the sensor head and sensor amplifier
1
Connect the sensor head connection cable to the transmitter and receiver
cables respectively.
2
Connect the sensor head connection cable on the receiver side to the [R]
connector of amplifier.
Sensor Head Connection
Note Tighten the connectors securely with hand. If loosely tightened,
the environment resistance IP67 cannot be guaranteed.
Remove the lock cover of the connector and
insert it to the connector (R) of amplifier until a
clicking sound can be heard.
DIN rail mount type
(IG-1000/IG-1050) Panel mount type
(IG-1500/IG-1550)
(1) Align the arrow position of the connector to insert.
(2) Rotate the connector screw to tighten.
The red O-ring is attached to the transmission cable and
blue O-ring to the receiver cable. Connect the sensor head
connection cable with red O-ring to the transmitter and
connect the sensor head connection cable with blue O-ring
to the receiver.
Unlocked
Lock cover
Click
Down: R side
Blue O-ring
Right: R side
