2-2 Connecting and Mounting the Sensor Head
2-11 IG-E
2
In
s
ta
lla
tion
a
nd C
onnection

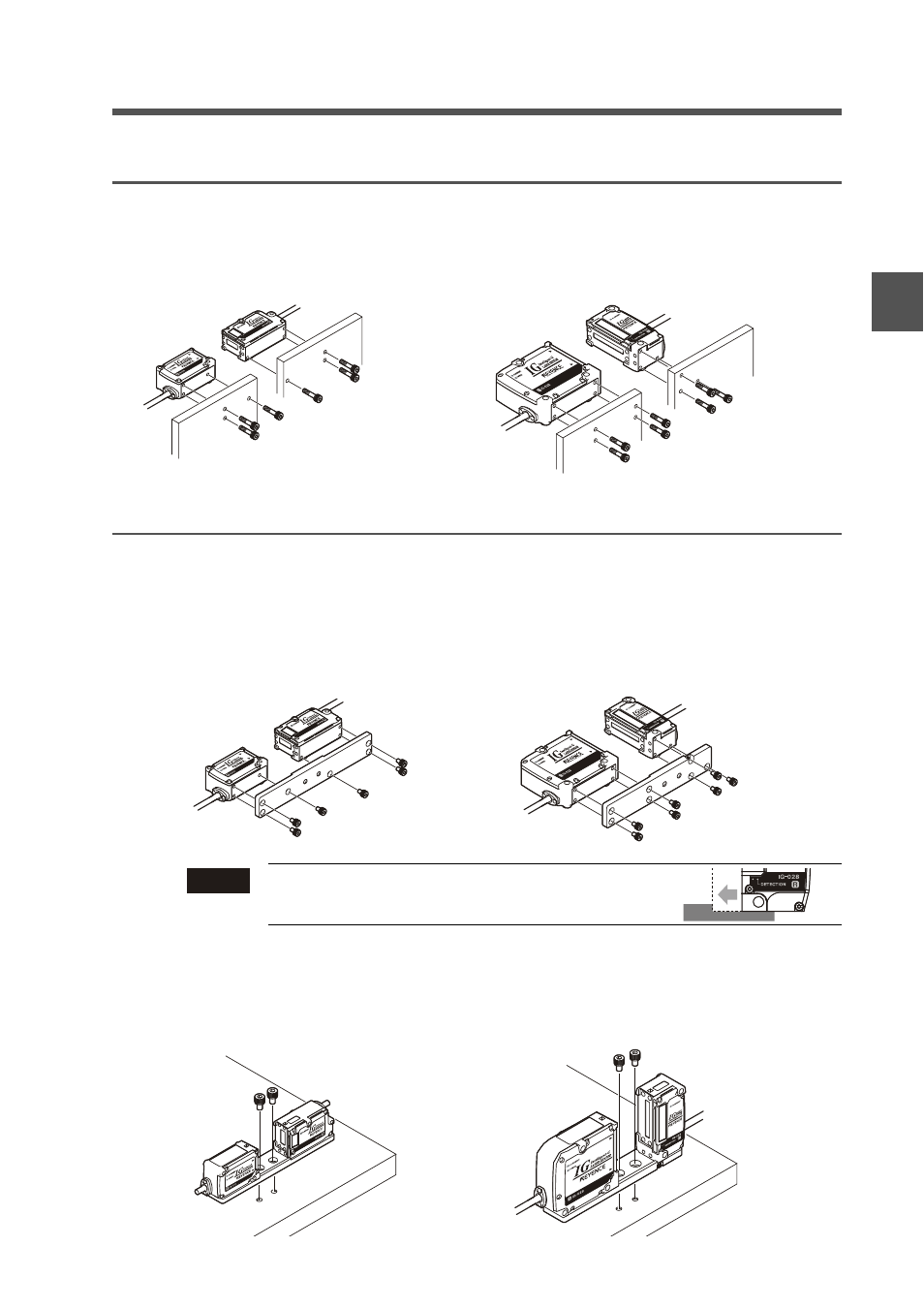

Mounting from the bottom
Fix using the commercially available screws.
IG-010: M3, board thickness +4 mm or less
IG-028: M3, board thickness +5 mm or less
Tightening torque: 1.6 N·m or less
When the mounting bracket (IG-TB01/IG-TB02) is used
1
Attach the mounting bracket to the sensor head.
Press the sensor head to the mounting bracket firmly and fix with the included
hexagon socket head bolt (M3, length: 5 mm).
Tightening torque: 1.6 N·m or less
2
Fix through the mounting holes from the upper part of the mounting bracket.
Use the commercially available hexagon socket head bolt (M4) to fix the mounting
bracket through its holes.
IG-010 IG-028
IG-010 IG-028
Note
Press the sensor head to the mounting
bracket firmly and fix.
IG-010 IG-028
