This section explains functions operable on the main screen and functions operable after
the display changes to each setting screen.
Functions Available on the Main Screen

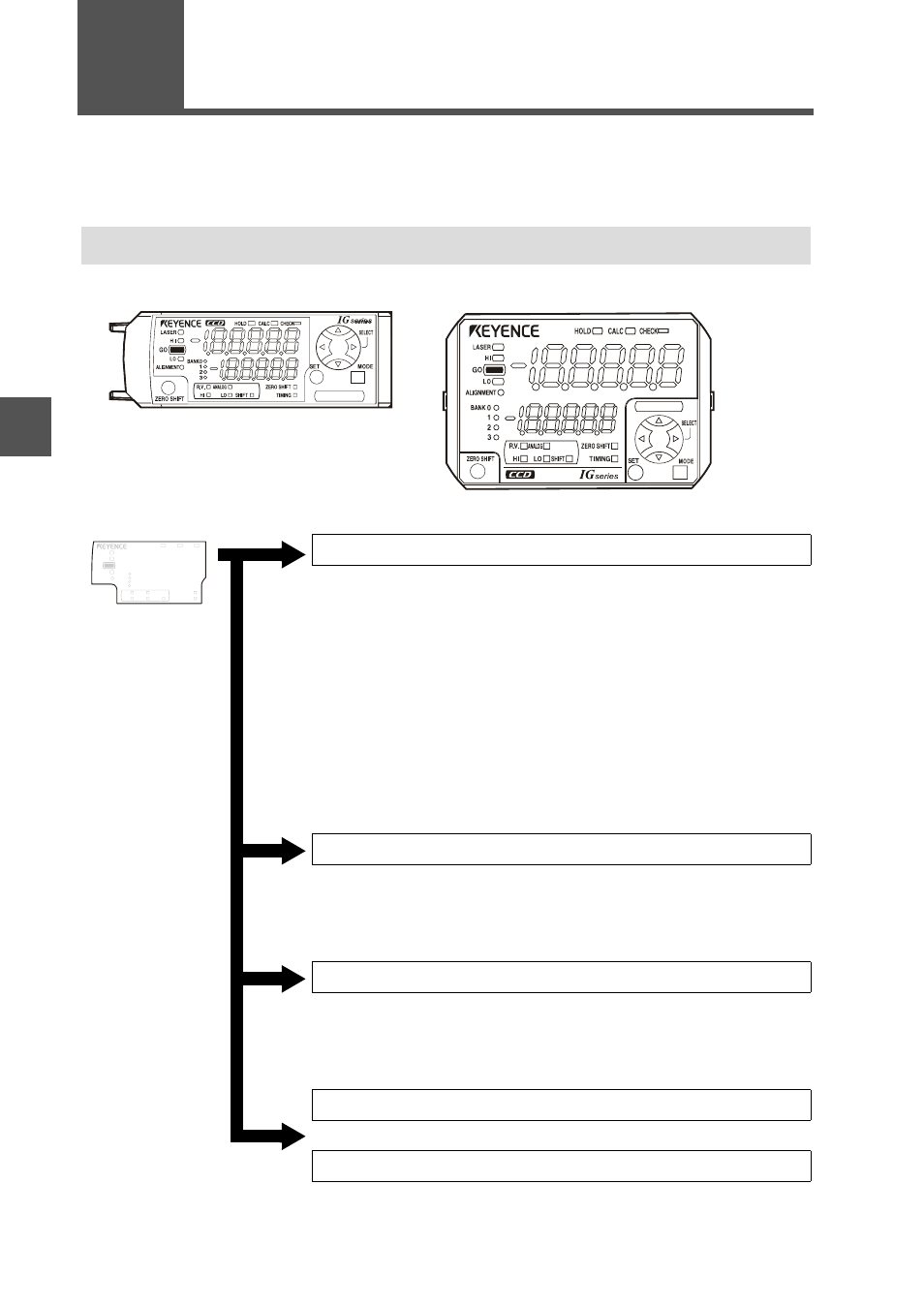

DIN rail mount type (IG-1000/IG-1050) Panel mount type (IG-1500/IG-1550)
Main screen
Press
W or X button.
Switching display on the sub display (lower level) (page 3-4)
Any of the internal measurement value (R.V.), analog output
value, HIGH side setting value, LOW side setting value or shift
target value is displayed and the setting can be changed.
3-6 Setting the Tolerance Setting Value (page 3-11)
HIGH side setting value and LOW side setting value are set. The judgment is
made among HIGH/GO/LOW, and the value is displayed and output.
3-7 Zero Shift Function (Shifting the Internal Measurement
Value (R.V.)) (page 3-16)
The internal measurement value (R.V.) can be shifted (offset)
to an arbitrary shift target value.
While pressing down [MODE], press
S or T button.
3-8 Bank Function (Registering Multiple Tolerance Setting
Values) (page 3-18)
HIGH side setting value, LOW side setting value, shift target
value, etc. can be saved at up to four banks and switched.
Press [MODE] and [SET] buttons for approx. 2 seconds.
3-4 Registering the Standard Waveform (Gain adjustment)
(page 3-9)
Make sure to do this for stabilized measurement when using
for the first time or the setting environment is changed.
Press [MODE] and S buttons for approx. 2 seconds.
or
Press [MODE] and
T buttons for approx. 2 seconds.
3-9 Key Lock Function (page 3-21)
This function prevents unwanted button operations during measurement.
