78

8 40.00 to 41.25
7 41.25 to 42.50
6 42.50 to 43.75
5

43.75 to 45.00

4 45.00 to 46.25
3 46.25 to 47.50
2 47.50 to 48.75
1

48.75 to 50.00


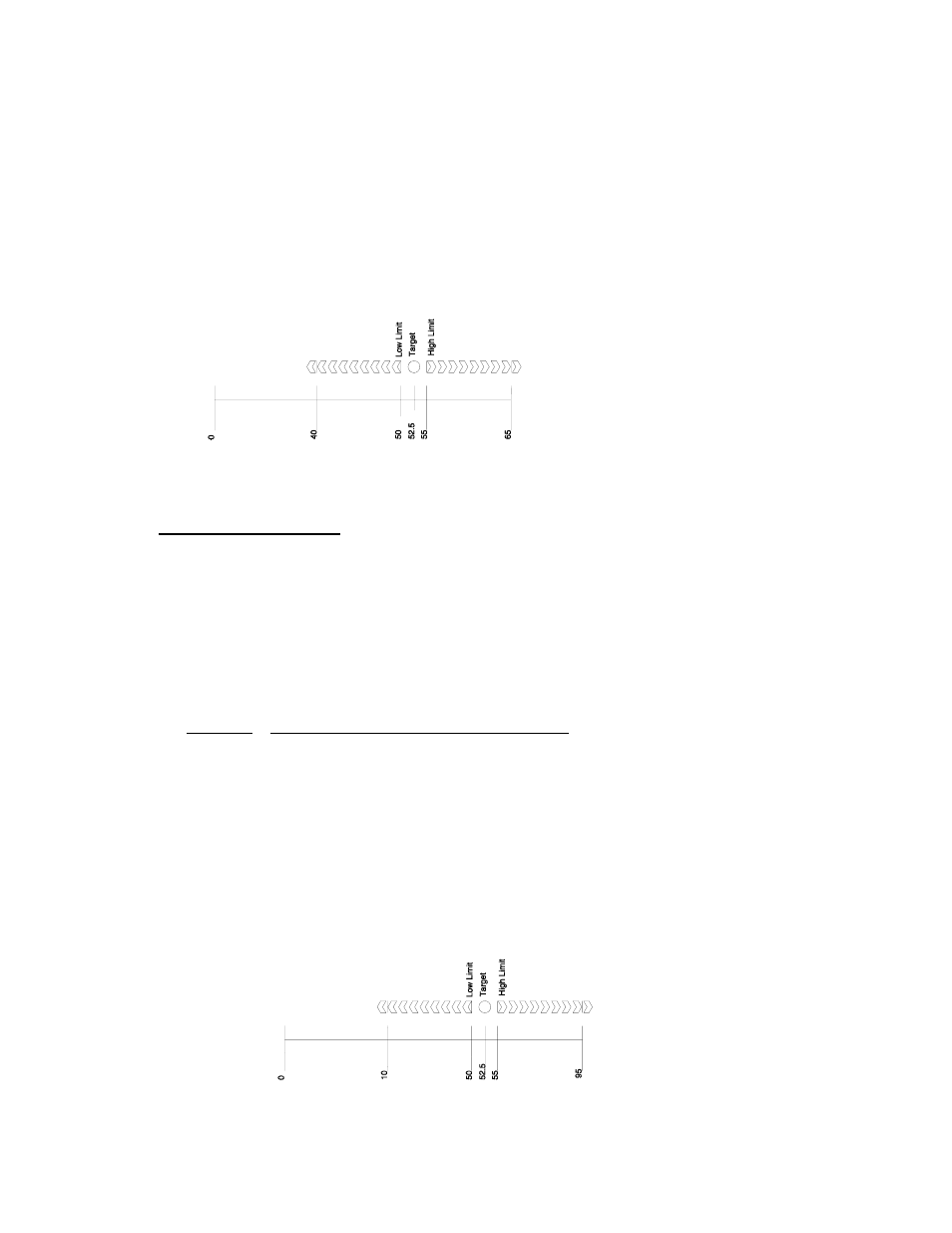

Figure 33: Example #1 Bargraph Segments (Weighted Value)


Example#2: : “ChecP”
(refer to

Figure 34

)

- Lower Limit is set at 50lbs.
- P5012 is set for 20%
- (Bar weight = 50 – 10 = 40 )

(40/8 = 5 lbs)


NOTE: Right-side bars will have the same scaling (lb per bar) as the left-side bars. They are represented as a mirror
image of each other.

Bars ON Weight Range (Lower Tolerance Limit)

9

<

10

8 10.00 to 15.00
7 15.00 to 20.00
6 20.00 to 25.00
5 25.00 to 30.00
4 30.00 to 35.00
3 35.00 to 40.00
2

40.00 to 45.00

1

45.00 to 50.00

Figure 34:Example #2 Bargraph Segments (Weighted Value)
