Swivel Bracket
The Model 350/355 has an optional stainless steel swivel bracket for secure mounting to desks, tabletops or walls. See
the Mounting section beginning on page 8 for instructions on mounting the Model 350/355 using the swivel bracket.
To install the swivel bracket:
1. Unpack the Swivel Bracket option.
Be sure that all parts shown in Figure 17 are accounted for.
2. Remove the two plastic Heyco plugs.
The plugs are located in the threaded bracket mounting holes on either side of the indicator. Be careful not
to scratch the finish of the indicator when removing these plugs.
3. Place the two spacers against the bracket and then insert the thumb screws.
The spacer and bracket holes should align with the bracket mounting holes on either side of the enclosure.
Panel Mount Kit
The Panel Mount Kit provides an easy way to mount the indicator into new or existing cabinetry. See Figure 18 for
detailed instructions on panel mounting the Model 350/355. See also NTEP Panel Mount Requirements on page 101
for additional panel mounting NTEP requirements.

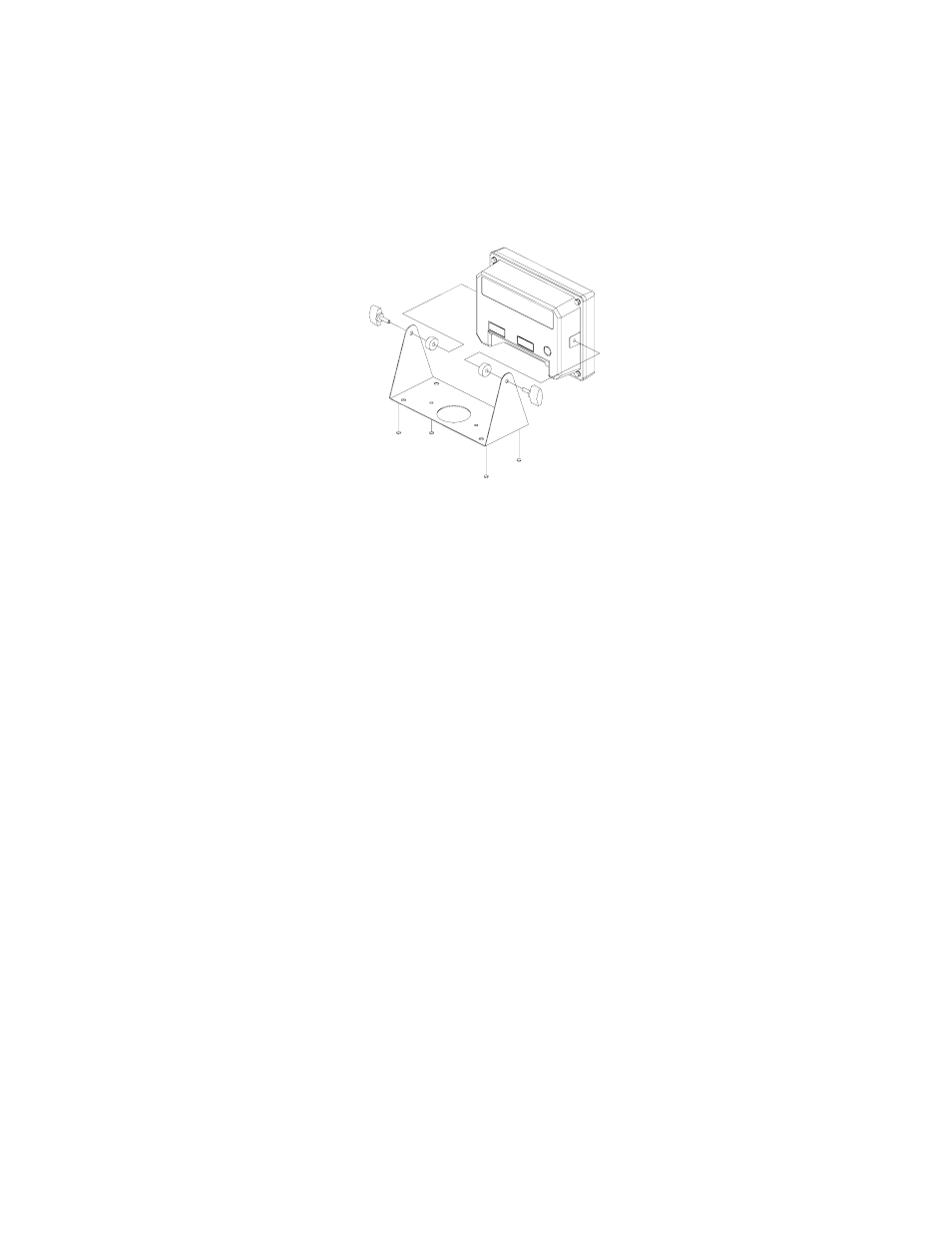

Figure 17: Swivel Bracket Installation (Die Cast Model)
