4

A

NNUNCIATORS

Annunciators provide mode and status information. When illuminated, they indicate the following conditions:

SP1

Setpoint #1 activated (relay 1 closed).

SP2

Setpoint #2 activated (relay 2 closed).

SP3

Setpoint #3 activated (relay 3 closed).

¼0»

Displayed weight is at center-of-zero (

± ¼ display graduation).

MOTION

Scale is in motion. Motion inhibited transmits and motion inhibited setpoint
activation will be delayed until motion ceases.

GROSS

Displayed value represents the current gross weight.

NET

Displayed value represents the current net weight.

QTY

Displayed value represents the current piece quantity (Count).

lb

The displayed value is represented in pounds.

kg

The displayed value is represented in kilograms.

Oz, lb oz, g

The displayed value is represented in either ounces, pound ounces or grams.

+ Lo -

Illuminates when the battery reaches a low tolerance. LCD only

350 KEYPAD

The Model 350 offers a sealed 5-button elastomer keypad is used for operator input. Each key is assigned two distinct
functions. Various key combinations are also used. Each key has secondary functions; allowing an operator to enter
target values, perform piece samples, access setup parameters, etc.

A






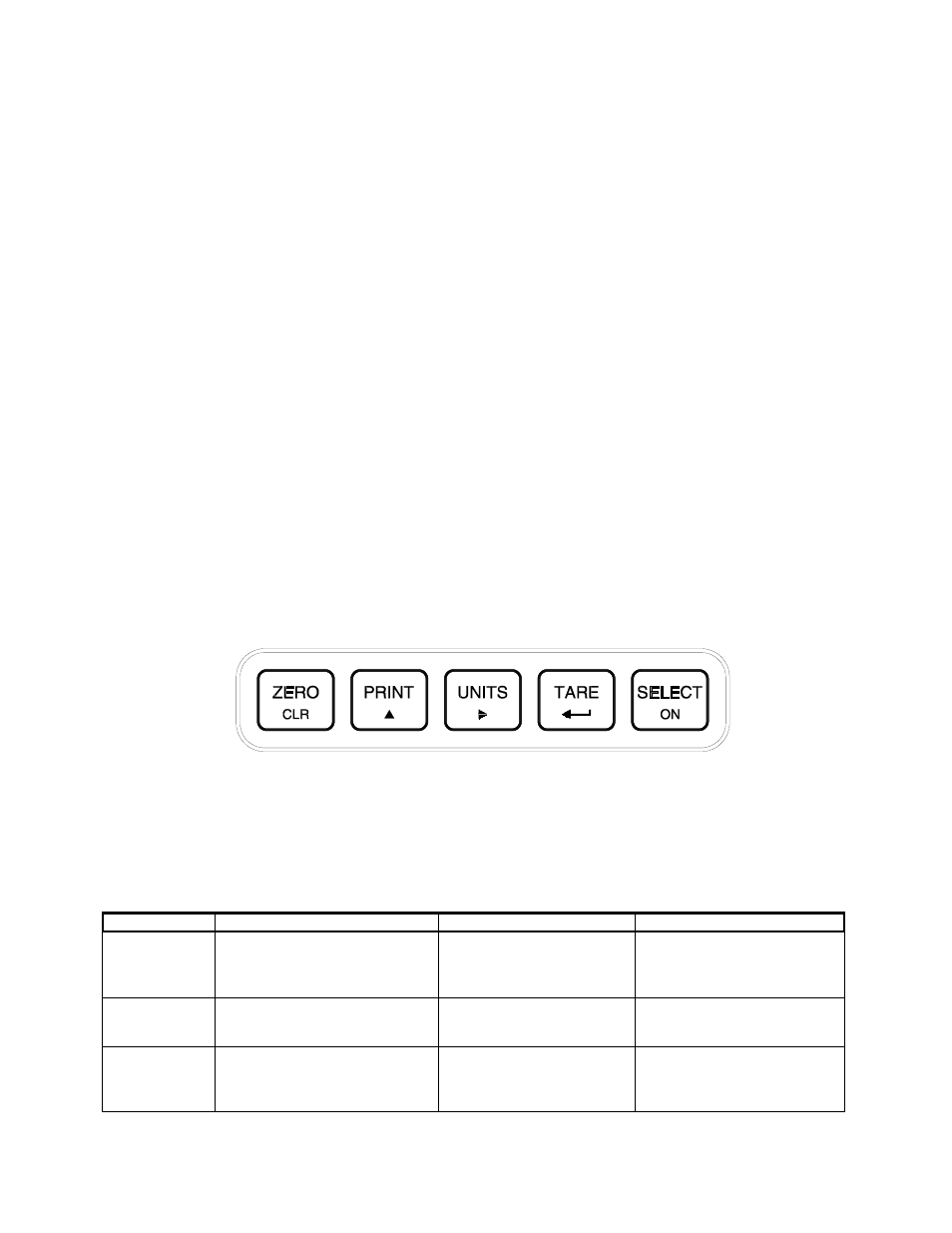

Figure 3: Model 350 Keypad

S

ECONDARY

F

UNCTIONS

The Model 350 keypad performs different functions in the Weigh Mode, the Setup Mode, and the Calibration Mode.
Secondary functions for each key allow you to perform additional tasks.

Key Press

W

EIGH

M

ODE

Count Mode

Setup Mode

Performs a gross zero function
and/or clears an entry in progress.
Hold this key on power-up to turn
on the display regardless of P420.

Performs a quantity zero
function and/or clears an entry
in progress.

Exits the Setup Mode and/or
answers “NO” to query prompts
and/or clears an entry in progress.

Performs a print function and/or
‘scrolls’ through digits during
setpoint entry.

Performs a print function
and/or ‘scrolls’ through digits
during setpoint entry.

‘Scrolls’ through digits during
data entry.

2

Toggles between ‘lb’ and ‘kg’
and/or advances cursor to next entry
position.

Toggles through standard
sample sizes and/or begins a
new sample entry.

Advances cursor to next entry
position and/or cycles prompts.
