To change targets from the Weigh Mode (355 IS):
1. Press $ .
DISPLAY READS X0.00
2. Press ! to view the current fill target.
DISPLAY READS XTarg1 ~ 250
B
ARGRAPH
(G
ENERAL
)
A bargraph display is available for the ChecP, Fill, Batch, Dschg, Both and ChecA setpoint modes of operation. To
enable the bargraph, refer to parameter P5011 (SPbar) in the Parameter Map section beginning on page 47. To weight
each segment of the bargraph refer to parameter P5012 (bArPc) in the Parameter Map section beginning on page 47.
S CALING FOR “ BARS ” ( BARGRAPH ARROWS )
If the first bar turns off at the specified percentage (set at P5012) of the low limit, and the last bar turns off at the low
limit, then the difference will be divided by 8 to determine the number of lbs per bar. At less than 5 grads, the entire
graph is off.
Example#1: “ChecP” (refer to Figure 30
)
- Lower Limit is set at 50lbs.
- P5012 is set for 80%
- (Bar weight = 50 – 40 = 10 )
(10/8 = 1.25 lbs)
NOTE: Right-side bars will have the same scaling (lb per bar) as the left-side bars. They are represented as a mirror
image of each other.
Bars ON Weight Range (Lower Tolerance Limit)
9 < 40
8 40.00 to 41.25
7 41.25 to 42.50
6 42.50 to 43.75
5 43.75 to 45.00
4 45.00 to 46.25
3 46.25 to 47.50
2 47.50 to 48.75
1 48.75 to 50.00

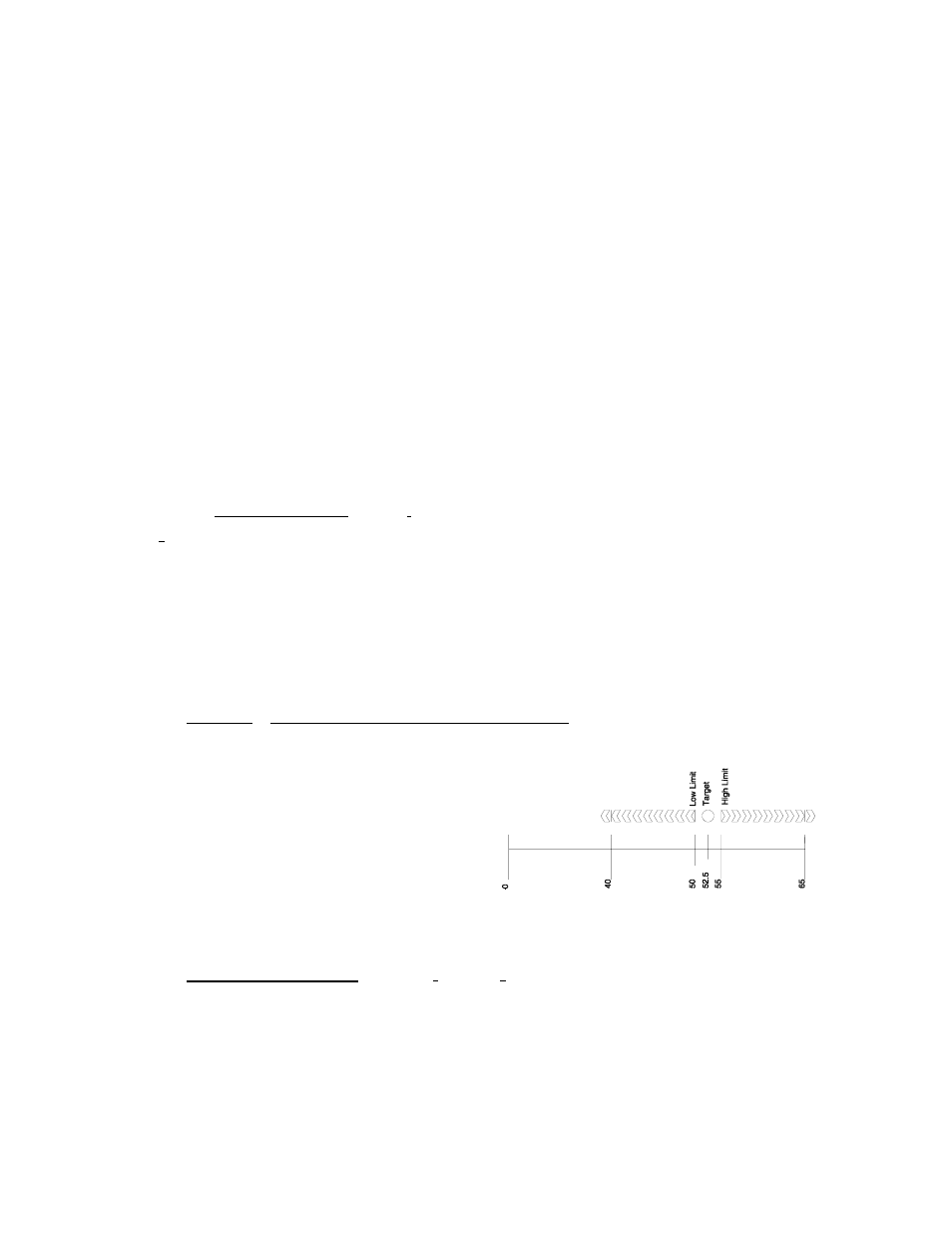

Figure 30: Example #1 Bargraph Segments (Weighted Value)
Example#2: : “ChecP” (refer to Figure 31 )
- Lower Limit is set at 50lbs.
- P5012 is set for 20%
- (Bar weight = 50 – 10 = 40 )
(40/8 = 5 lbs)
