28
Table 5: Setpoint Output Specifications (24350B-100C0)
Characteristic Limits
Operating Voltage Range (47-63 Hz) 20-280 VRMS
Max Load Current 1 Amp RMS
Min Load Current 0.5 mA RMS
Min. Off-State Impedance 80K Ohms
Max Surge Current 24 Amp peak
Table 6: Setpoint Control Connections (24350B-100C0)
Pin Connection Name Description
1 Line 1 Line voltage in for setpoint 1.
2 Load 1 Voltage out for setpoint 1.
3 Line 2 Line voltage in for setpoint 2.
4 Load 2 Voltage out for setpoint 2.
5 Line 3 Line voltage in for setpoint 3.
6 Load 3 Voltage out for setpoint 3.

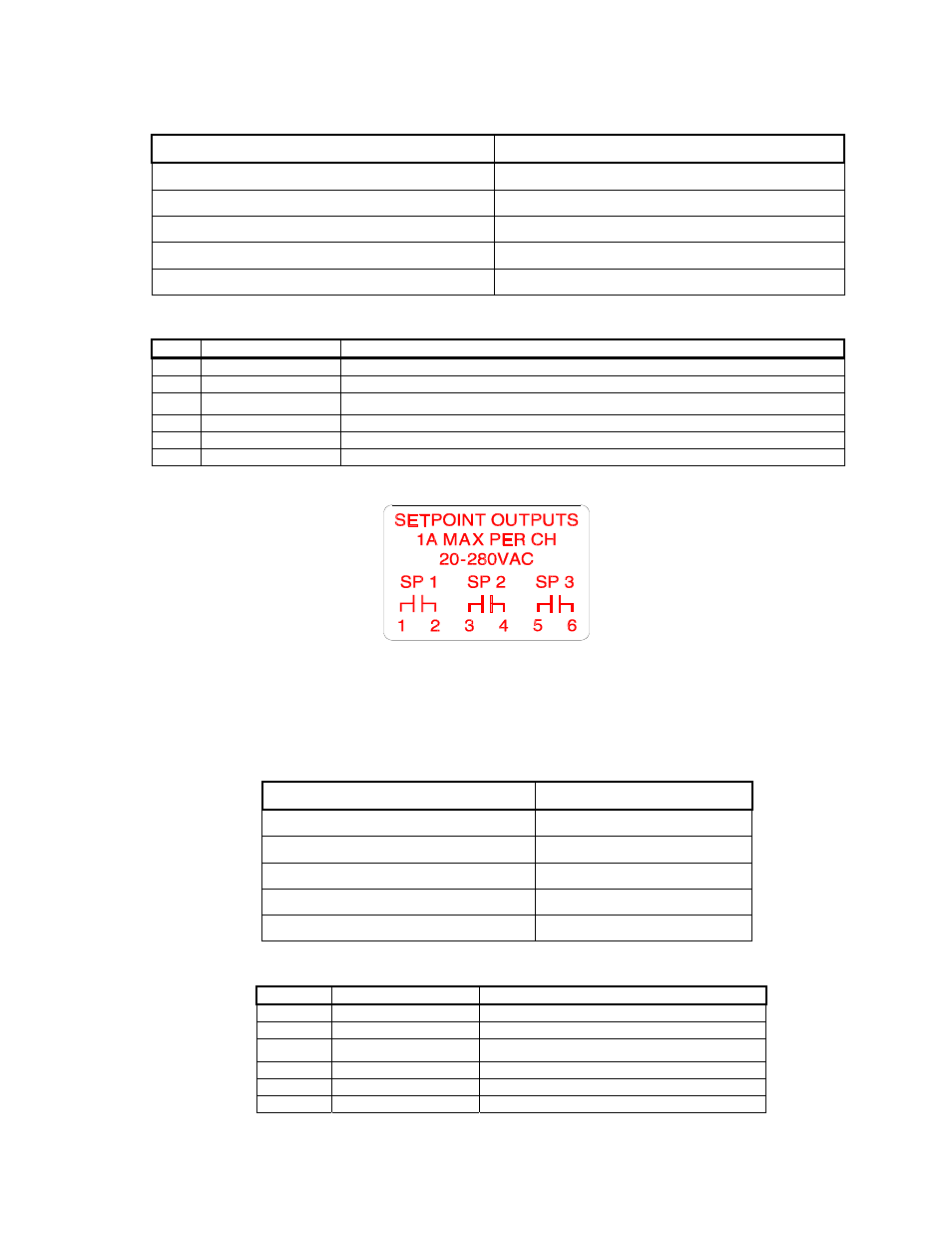

Place this label above the setpoint card knockout (die cast).
(Stainless steel model) Cut off the text “SETPOINT OUTPUTS” from the label and place it on the connector shown in
Figure 23 (apply to the area just under the field external wire terminals).
Table 7: Setpoint Output Specifications (24350B-100C1)
Characteristic Limits
Operating Voltage Range (20-500 Hz) 20-280 VRMS
Max Load Current 1 Amp RMS
Min Load Current 5 mA RMS
Min. Off-State Impedance 220K Ohms
Max Surge Current 20 Amp peak
Table 8: Setpoint Control Connections (24350B-100C1)
Pin Connection Name Description
1 Line 1 Line voltage in for setpoint 1.
2 Load 1 Voltage out for setpoint 1.
3 Line 2 Line voltage in for setpoint 2.
4 Load 2 Voltage out for setpoint 2.
5 Line 3 Line voltage in for setpoint 3.
6 Load 3 Voltage out for setpoint 3.
